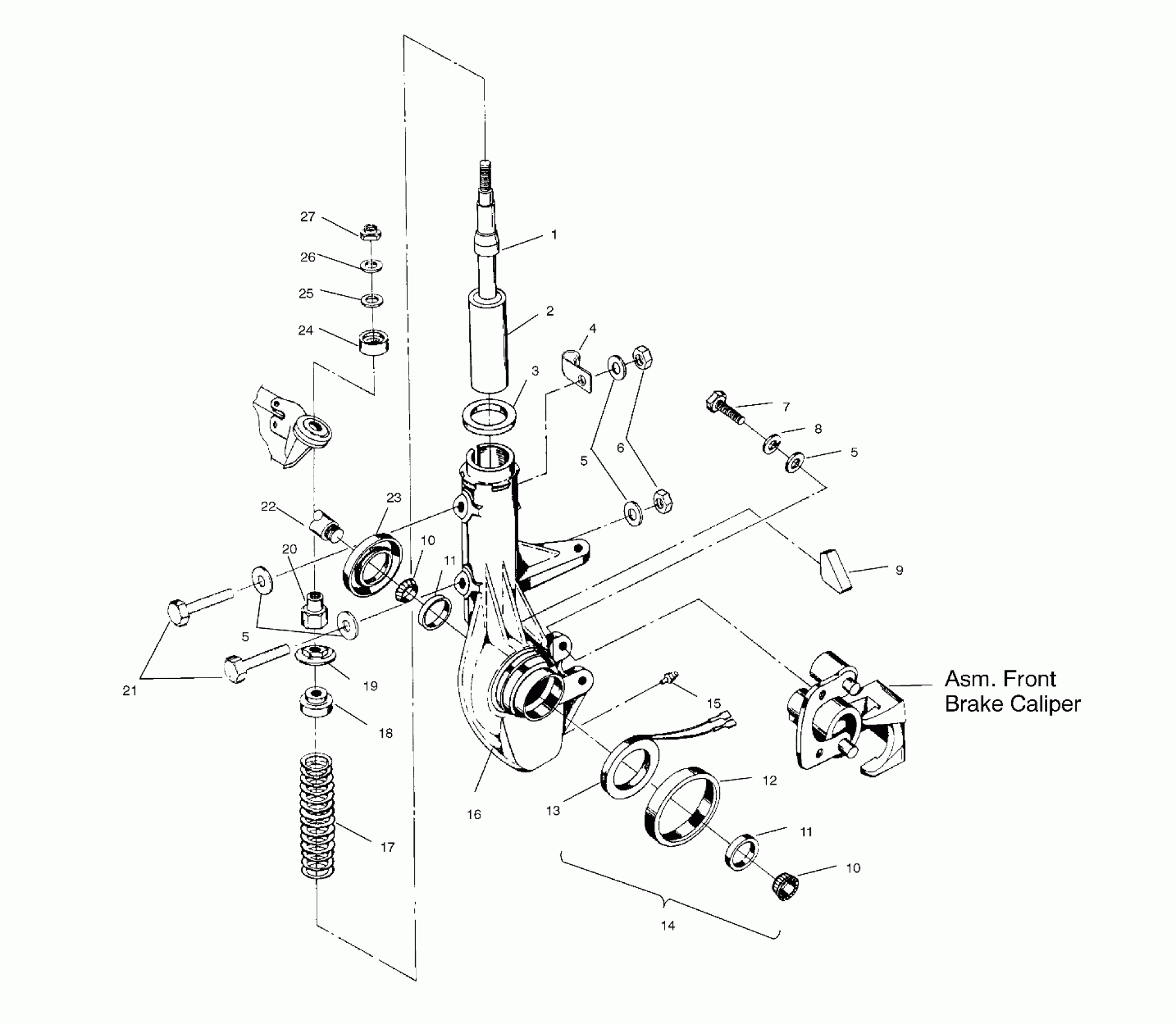

Polaris MAGNUM 4X4 - W958144 FRONT STRUT ASSEMBLY - W958144 (4926862686b006) Diagram

#

Description
Price

1

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

2

STRUT,FRONT,32MM. Substituted by 7041755

7041374

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

BEARING,TAPERED ROLLER

3554509

$23.99

10

BEARING,TAPERED ROLLER

3554509

$23.99

11

BRG,TAPER,ROLL CUP

3554507

$31.99

11

BRG,TAPER,ROLL CUP

3554507

$31.99

12

SLEEVE,STRUT HUB SEAL

5222193

$59.99

13

COIL,MAGNETIC,HVY. Substituted by 4170016

4170005

$121.41

14

HUBSTRUT ASM,LH, 32 MM. (Incl. 2,4-6,9-16,21,23)

1843054

Unavailable

14

HUBSTRUT ASM,RH, 32 MM. (Incl. 2,4-6,9-16,21,23)

1843055

Unavailable

15

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

16

KIT,LH HUBSTRUT,32MM. Substituted by 1843054

2200598

Unavailable

16

KIT,RH HUBSTRUT,32MM. Substituted by 1843055 (Incl. 9,11-13,15,23)

2200599

Unavailable

17

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

18

RETAINER,SPRING,TOP

5220602

Unavailable

19

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

20

SPACER,THREADED

5130668

$27.99

21

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

22

Asm., Drive Shaft w/Sleeve (See Pg. B4, Ref. 1)

-------

Unavailable

23

SEAL, HUB STRUT

3610028

$31.99

24

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

25

SPACER-RUBBER

5810291

$3.99

26

WASHER(10)

7555749

$1.49

27

NUT,FLEX LOC(10)

7542507

$3.99
