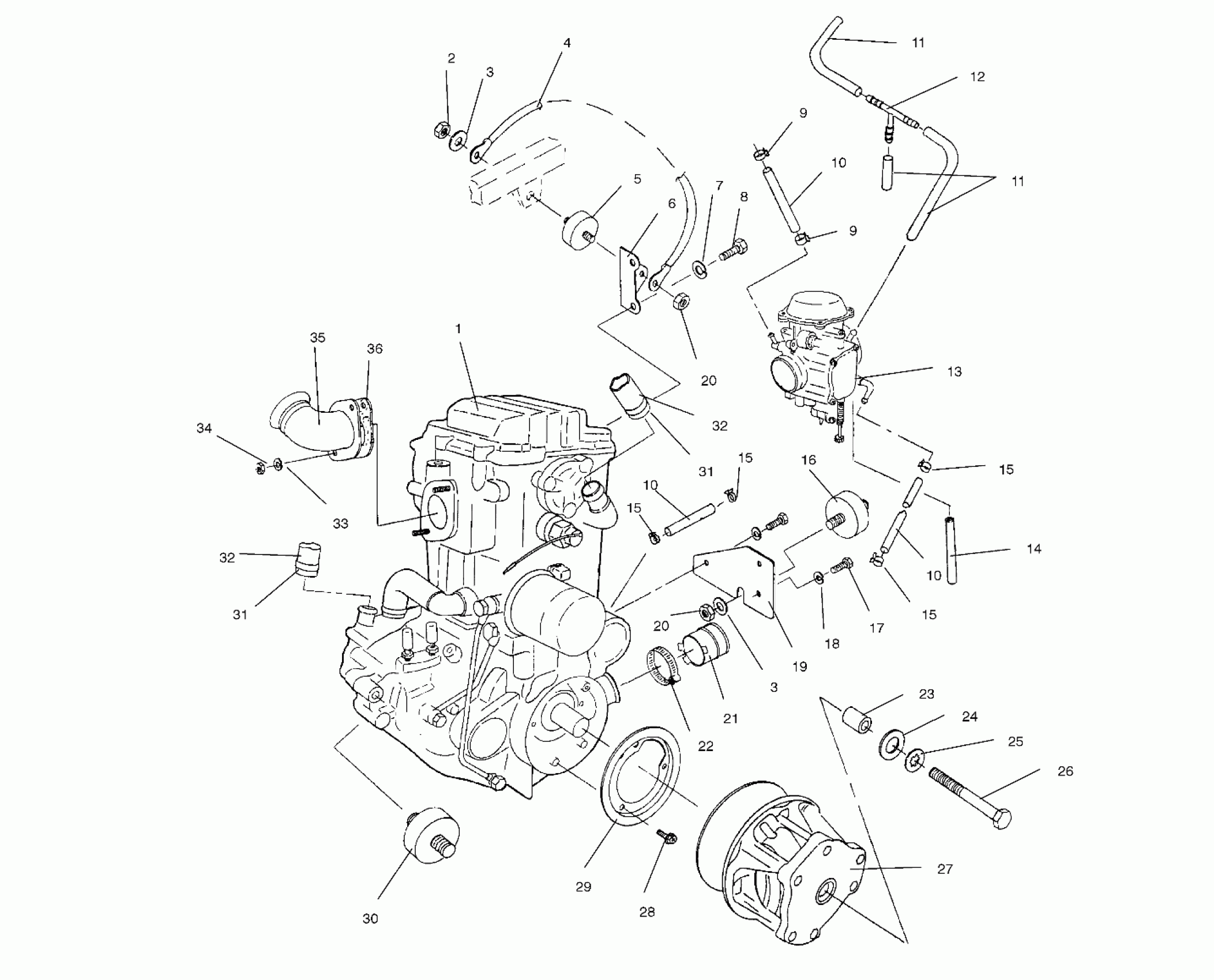

Polaris MAGNUM 4X4 - W958144 ENGINE MOUNTING - W958144 (4926862686a009) Diagram

#

Description
Price

1

ENG.(S.B.)EH42PL-01 [No Longer Available]

3085023

Unavailable

2

NUT LOCK(10)

7542411

$3.19

3

WASHER(10)

7555801

$3.99

3

WASHER(10)

7555801

$3.99

4

CABLE,GROUND/ENG.

4010067

Unavailable

5

MOUNT,RUBBER,TOP

3110044

Unavailable

6

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Asm., Carburetor (See pg. D10)

-------

Unavailable

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

Unavailable

17

SCREW(10)

7512490

$3.99

18

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

19

MT.,SEAL RETAINER,BLK.

5211431-067

Unavailable

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

21

BOOT,CLUTCH INTAKE

5410421

$11.19

22

CLAMP, NARROW BAND(10)

7080511

$4.79

23

BUSHING-.437 X.770 X.50

5430261

$7.19

24

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

25

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

26

BOLT(10)

7512566

$30.79

27

Asm., Drive Clutch (See pg. C3)

-------

Unavailable

28

Asm., Screw and Washer (See pg. C2)

-------

Unavailable

29

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

30

MOUNT,RUBBER,FRONT

3110046

Unavailable

31

CLAMP,WORM DRIVE

7080547

Unavailable

31

CLAMP,WORM DRIVE

7080547

Unavailable

32

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

32

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

33

WASHER LOCK ,(10)

3080530

$3.19

34

NUT(10)

3080285

Unavailable

35

MANIFOLD, BLK. Substituted by 1260832-029

1260628-029

Unavailable

36

GASKET, EXH. Substituted by 3085075

3084689

Unavailable
