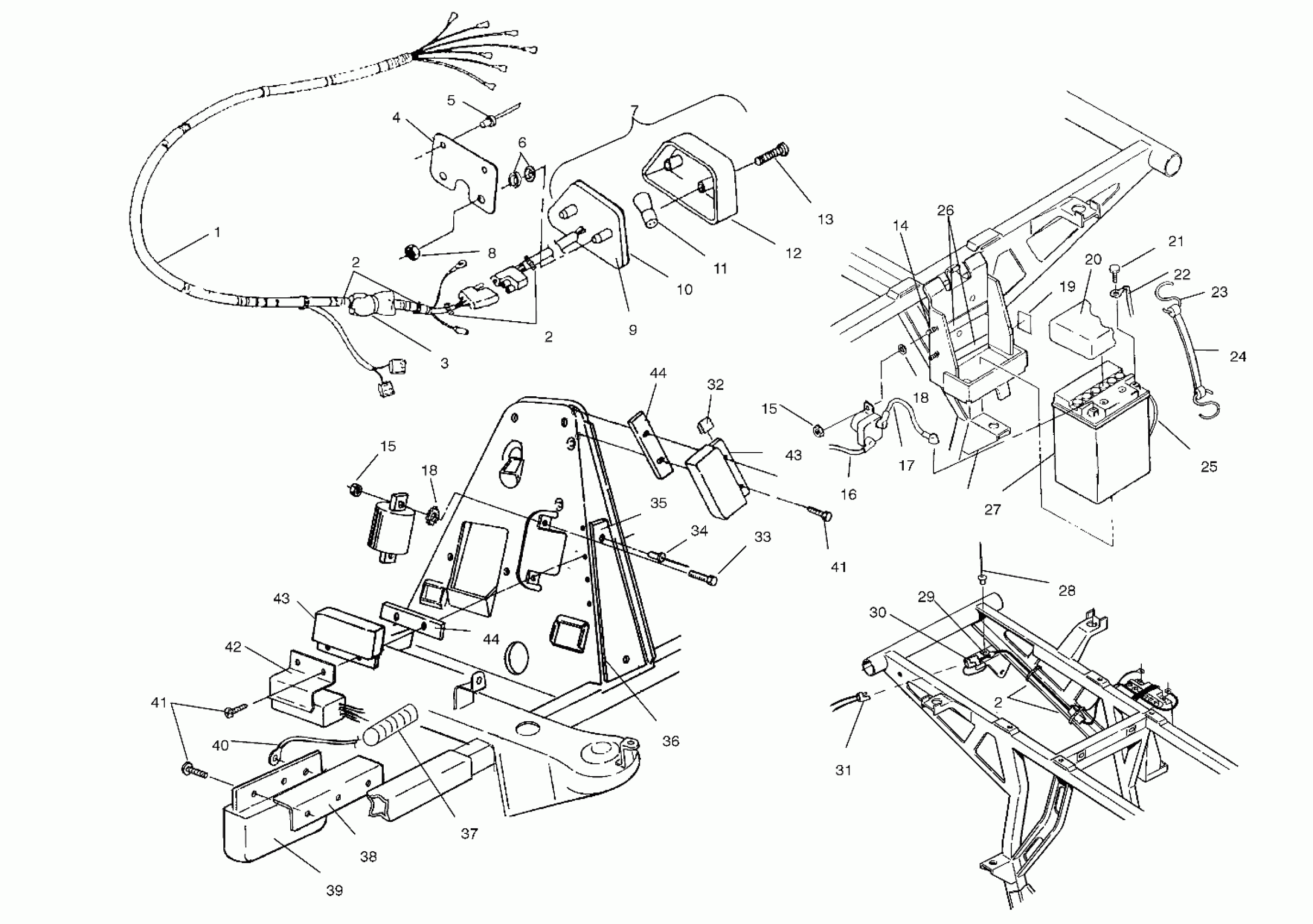

Polaris MAGNUM 4X4 - W958144 ELECTRICAL/TAILLIGHT ASSEMBLY - W958144 (4926862686c013) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE(400-4X4)

2460476

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

KIT,CKT.BRKR,20 AMP

2200593

$68.79

4

ISOLATOR,TAILLIGHT

5211391-067

$13.39

5

RIVET(50)

7621470

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

$1.19

7

TAIL LIGHT ASM.

2432034

$55.56

8

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

9

BACKING,TAILLIGHT

4032064

$83.33

10

GASKET,TAILLIGHT

4032045

$4.03

11

BULB,TAILLIGHT

4030043

$6.46

12

LENS,TAILLIGHT

4032046

$32.37

13

Screw, Taillight

4032029

$4.76

14

SCREW(10)

7512027

$1.19

15

NUT(10)

7541925

$0.79

15

NUT(10)

7541925

$0.79

16

CABLE,SOL/STARTER

4010093

$48.56

17

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

18

WASHER(10)

7571602

$4.76

18

WASHER(10)

7571602

$4.76

19

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

20

COVER,BATTERY

5431769

$15.37

21

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

22

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

$4.84

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

26

PAD-BATTERY

5810290

$7.27

27

Battery

4140006

$99.99

28

RIVET,(50)

7621336

$1.59

29

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

30

POWER ASM,12V

2410022

Unavailable

31

PIGTAIL, POWER (Pigtail Power)

2460442

$12.30

32

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

$44.51

33

SCREW(10)

7512007

$3.97

34

RIVET, POP(50)

7621322

$0.56

35

BOARD,TERMINAL

4040056

Unavailable

36

SHIELD,TERM.BOARD

5431152

Unavailable

37

TUBING,CONVOLUTED,3/4"

8360011-15

Unavailable

38

HEATSINK RECT.

5131036

Unavailable

39

RECTIFIER,SWITCHING

4060113

Unavailable

40

HARNESS,JUMPER,RECTIFIER

2460485

Unavailable

41

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

41

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

42

BRKT,CDI(ATV 400)

5240428

Unavailable

43

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

43

LIMITER,650 HZ,(RPM),(NOR)

4060127

Unavailable

43

LIMITER,RPM,350HZ. Substituted by 4060203

4060112

Unavailable

43

LIMITER,650 HZ,(RPM),(NOR)

4060127

Unavailable

44

HEAT SINK

5210650

Unavailable

44

HEAT SINK

5210650

Unavailable

44

HEAT SINK

5210650

Unavailable

44

HEAT SINK

5210650

Unavailable
