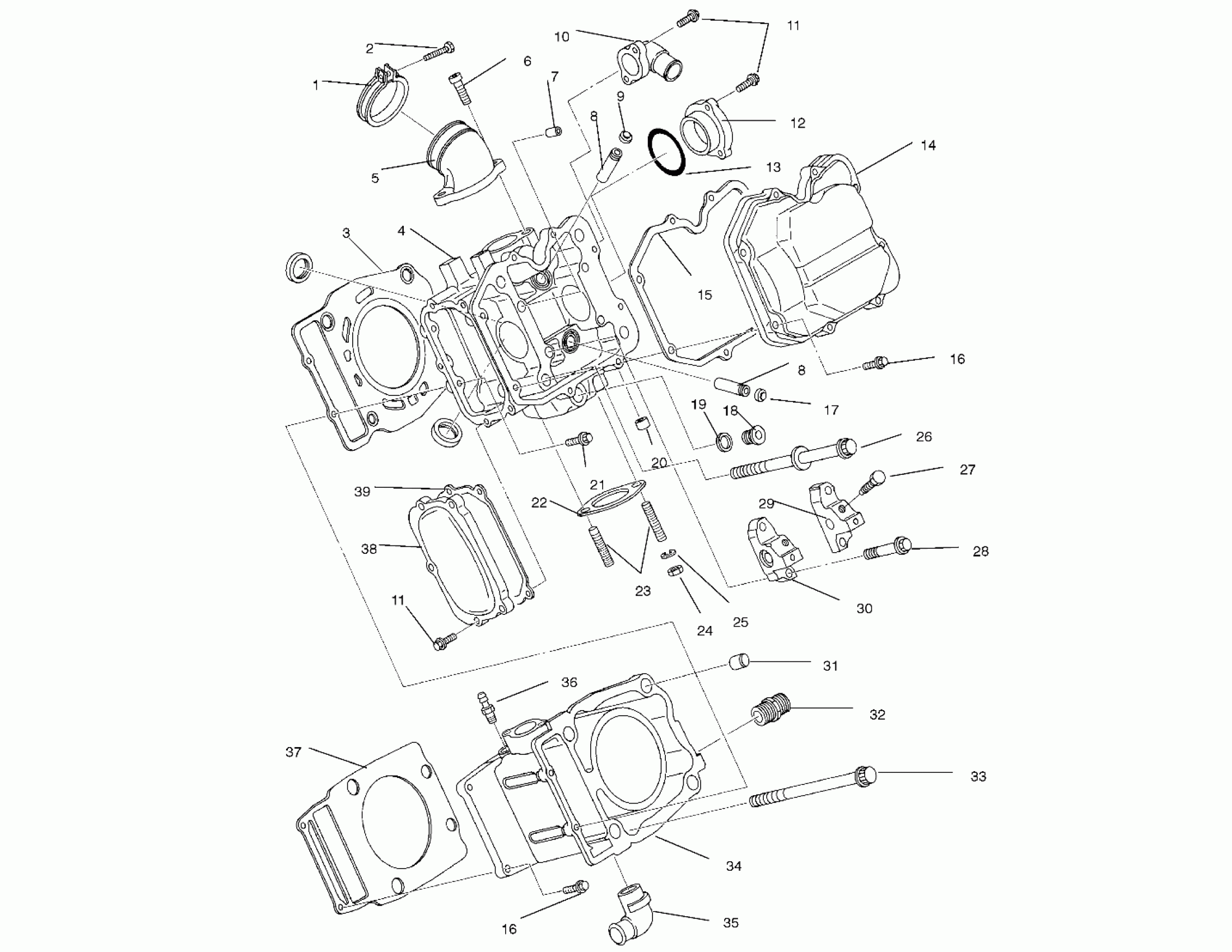

Polaris MAGNUM 4X4 - W958144 CYLINDER - W958144 (4926862686d002) Diagram
#
Description
Price
1
BAND ASM. (Incl. 2)
3083166
$19.84
2
SCREW,(10)
3081497
$2.39
3
GASKET, HEAD Substituted by 3085337
3084865
Unavailable
4
HEAD,CYLINDER Substituted by 3085527 (Incl. 7-9,17-20,23)
3085071
Unavailable
5
ADAPTER
3084879
Unavailable
6
Bolt, Allen
3081330
$3.99
7
PIN,STRAIGHT
3084857
Unavailable
8
GUIDE,VALVE
3084994
$39.99
8
GUIDE,VALVE
3084994
$39.99
9
SEAL,INTAKE VALVE
3084858
$13.59
10
ADAPTER,(WATER OUT) Substituted by 3084870
3085072
Unavailable
11
BOLT,FLANGE(10)
3084877
Unavailable
11
BOLT,FLANGE(10)
3084877
Unavailable
12
ADAPTER,CAMSHAFT
3084866
Unavailable
13
O-RING
3084867
$23.99
14
COVER,ROCKER
3085073
$75.99
15
GASKET,(R.COVER)
3085074
$31.99
16
BOLT, FLANGE
3084874
Unavailable
16
BOLT, FLANGE
3084874
Unavailable
17
SEAL,EXHAUST VALVE
3084859
$23.99
18
PLUG
3084860
$7.19
19
GASKET
3084861
$4.79
20
PLUG, BLIND
3084862
Unavailable
21
BOLT, FLANGE Substituted by 3086781
3084215
Unavailable
22
GASKET,EXH.
3085075
$39.99
23
STUD (10)
3080016
$5.75
24
NUT(10)
3080285
Unavailable
25
WASHER LOCK ,(10)
3080530
$3.19
26
BOLT
3084875
Unavailable
27
BOLT
3084880
Unavailable
28
BOLT
3084876
$4.79
29
SUPPORT,VALVE ROCKER
3084864
Unavailable
30
SUPPORT,VALVE ROCKER
3084863
$91.99
31
PIN,STRAIGHT
3084838
Unavailable
32
UNION,OIL PUMP
3084849
Unavailable
33
BOLT, FLANGE
3084873
Unavailable
34
CYLINDER (Incl. 35)
3084848
Unavailable
35
PIPE, 2 ELBOW Substituted by 3086747
3084130
Unavailable
36
UNION,(BREATHER)
3084850
Unavailable
37
GASKET, CYL. Substituted by 3085370
3084851
Unavailable
38
Cover, Camshaft
3084868
Unavailable
39
GASKET Substituted by 3086200
3084869
Unavailable
