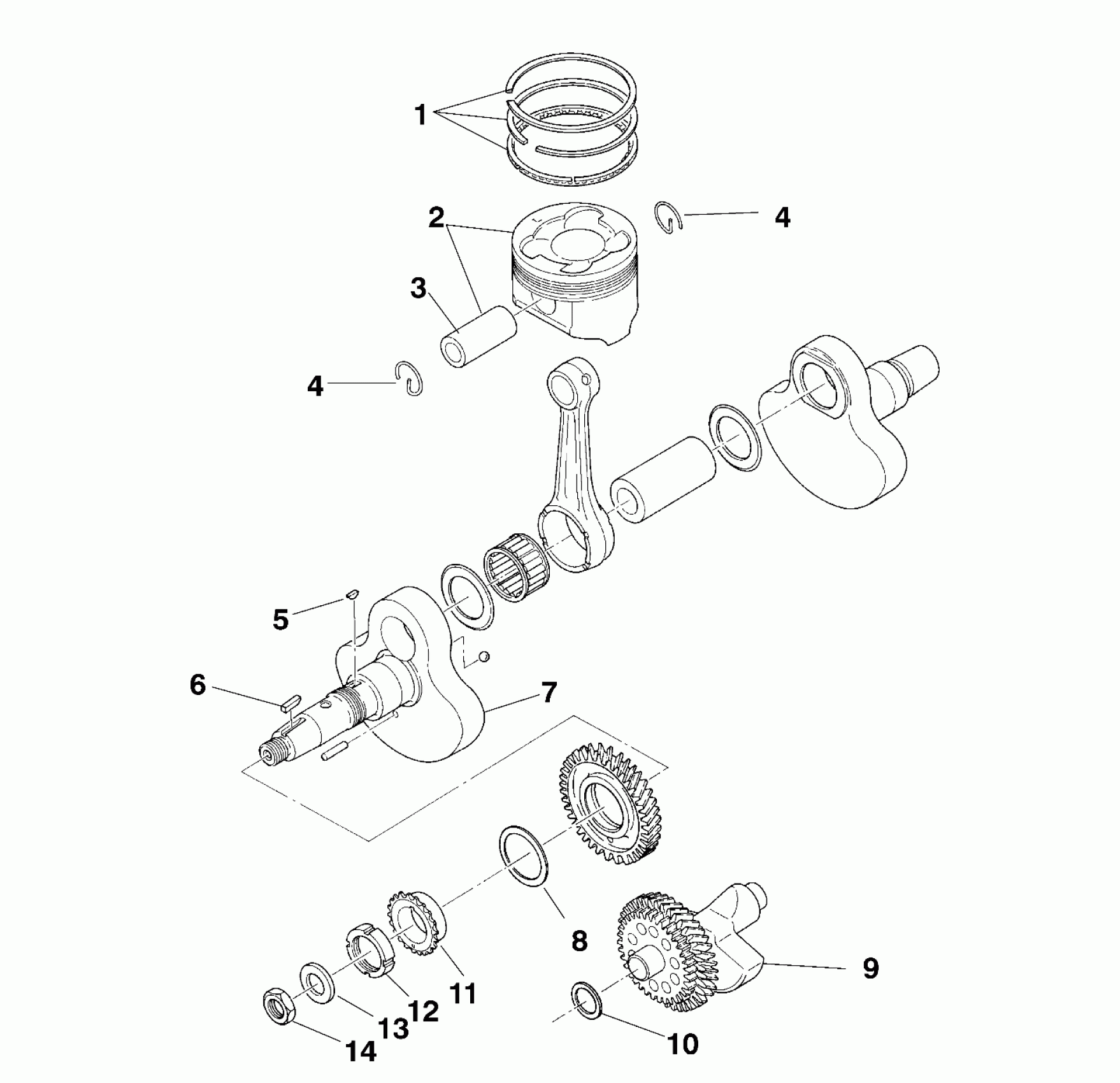

Polaris MAGNUM 4X4 - W958144 CRANKSHAFT and PISTON - W958144 (4926862686d003) Diagram

#

Description
Price

1

RING SET,(.50MM O/S) (.50 OS)

3084889

$37.00

1

RING SET,(.25MM O/S) (.25 OS)

3084888

Unavailable

1

RING SET, STD. (Std)

3084887

Unavailable

2

PISTON&PIN ASM,STD. (Std) (Incl. 3)

3084885

Unavailable

2

PISTON&PIN ASM,(.25MM O/S) (.25 OS) (Incl. 3)

3084995

Unavailable

2

PISTON&PIN ASM,(.50MM O/S) (.50 OS) (Incl. 3)

3084996

Unavailable

3

PIN,PISTON

3084886

Unavailable

4

CIRCLIP

3084890

Unavailable

4

CIRCLIP

3084890

Unavailable

5

KEY Substituted by 3081543

3080130

Unavailable

6

KEY

3081447

Unavailable

7

CRANKSHAFT

3084881

$774.99

8

SPACER

3084894

$19.99

8

SPACER

3240088

$10.39

8

SPACER

3084893

$19.99

8

SPACER

3084892

$12.79

9

SHAFT, BALANCER Substituted by 3085404

3084891

Unavailable

10

SPACER

3084897

$6.39

10

SPACER

3084895

$6.39

10

SPACER

3084896

$6.39

11

SPROCKET 1

3084882

Unavailable

12

NUT, SLIT

3084884

Unavailable

13

WASHER Substituted by 3086767

3083904

Unavailable

14

LOCKNUT

3083905

Unavailable
