Description

Price

1

CRANKCASE (Incl. 3-7,9,15,18,19,21)

3084833

Unavailable

1

CRANKCASE (Incl. 3-7,9,15,18,19,21)

3084833

Unavailable

2

PIN,STRAIGHT

3084838

Unavailable

3

BEARING, BALL

3080676

$39.99

4

Pin, Dowel

3084840

Unavailable

4

Pin, Dowel

3084840

Unavailable

5

BEARING,BALL

3084834

$23.99

6

BEARING,BALL

3084835

Unavailable

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

8

SCREW & WASHER(10)

3084205

$3.99

9

SEAL, OIL

3084839

$27.99

10

Union

3084842

Unavailable

11

PLUG

3084845

Unavailable

12

GASKET,(ALUM.)(10)

3084846

$5.59

13

SPRING

3084844

$3.99

14

VALVE Substituted by 3086810

3084843

Unavailable

15

BOLT,FLANGE

3084841

Unavailable

16

GASKET

3082956

$4.84

17

PLUG Substituted by 3086749

3083453

Unavailable

18

SEAL, OIL

3084836

Unavailable

19

SEAL,MECHANICAL

3084837

$68.79

20

O-RING

3084847

$6.39

21

BUSHING, STARTER (Starter)

3083669

Unavailable

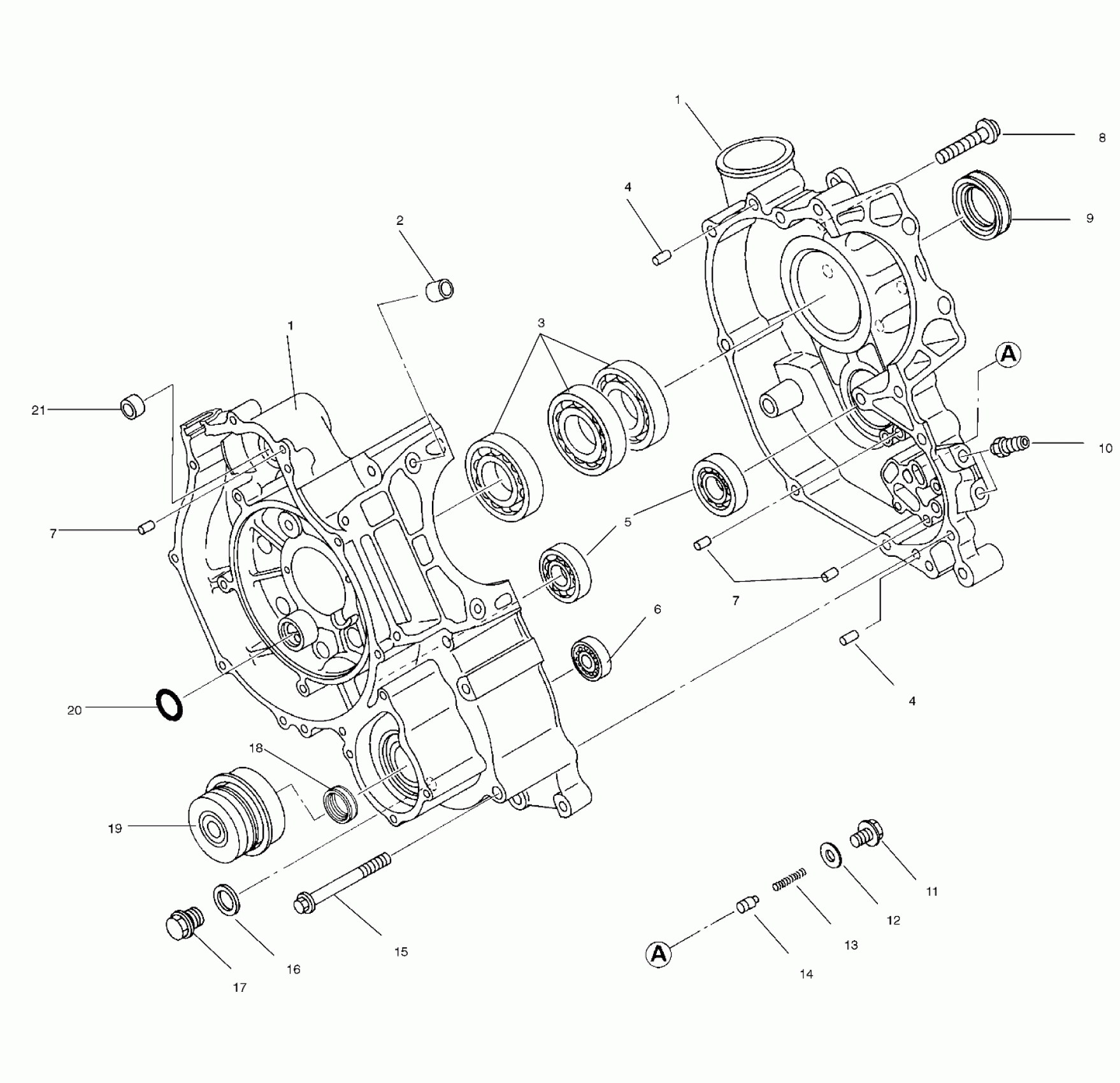

Polaris MAGNUM 4X4 - W958144 CRANKCASE - W958144 (4926862686d001) Diagram

CRANKCASE (Incl. 3-7,9,15,18,19,21)

CRANKCASE (Incl. 3-7,9,15,18,19,21)

PIN,STRAIGHT

BEARING, BALL

Pin, Dowel

Pin, Dowel

BEARING,BALL

BEARING,BALL

PIN, DOWEL Substituted by 3086838

PIN, DOWEL Substituted by 3086838

SCREW & WASHER(10)

SEAL, OIL

Union

PLUG

GASKET,(ALUM.)(10)

SPRING

VALVE Substituted by 3086810

BOLT,FLANGE

GASKET

PLUG Substituted by 3086749

SEAL, OIL

SEAL,MECHANICAL

O-RING

BUSHING, STARTER (Starter)
