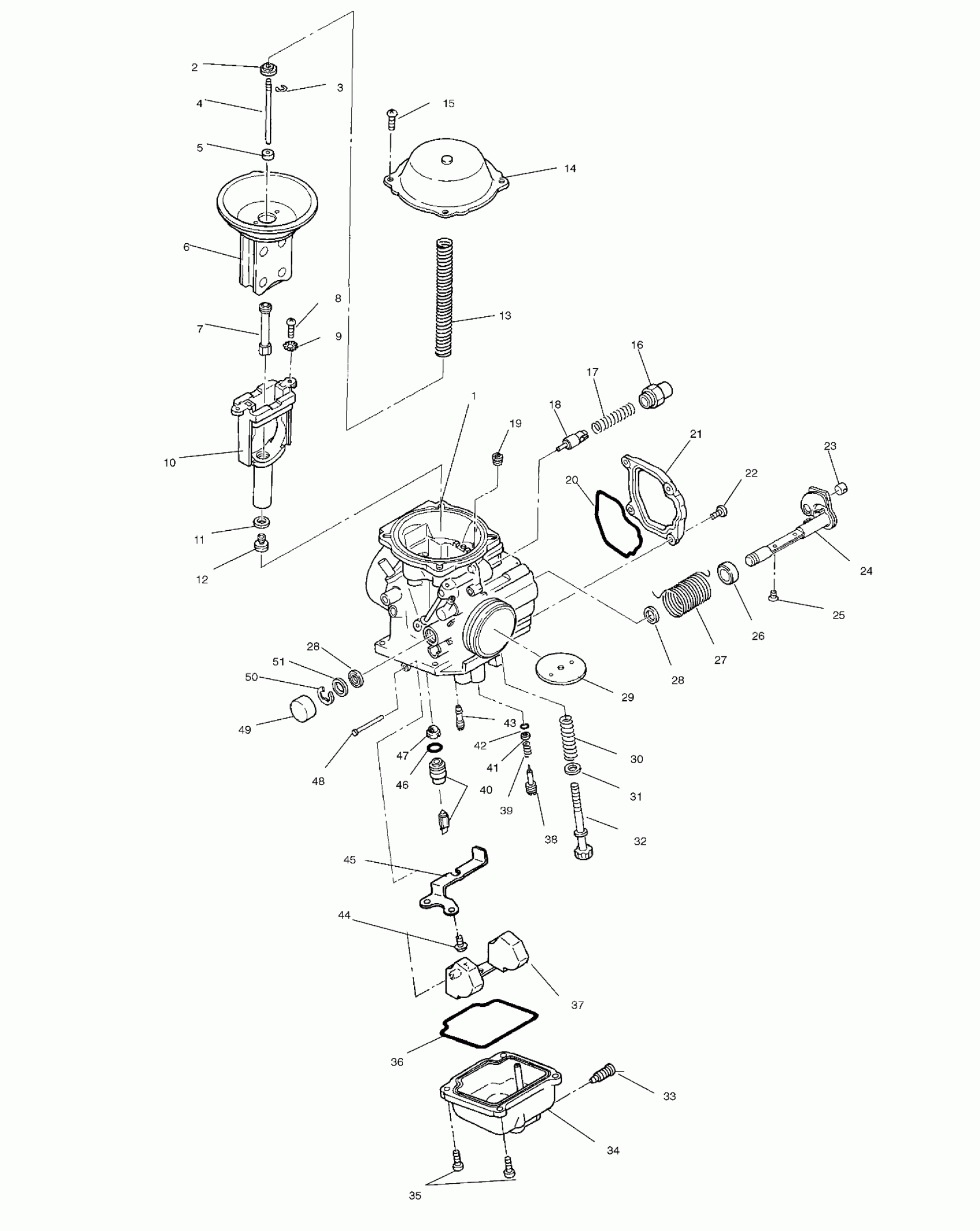

Polaris MAGNUM 4X4 - W958144 CARBURETOR - W958144 (4926862686d009) Diagram
#
1
CARBURETOR Substituted by 3130724 (Incl. 1-19,24-51)
3130500
Unavailable
2
RING
3130507
$5.59
3
E-RING,(10)
3130508
$6.46
4
JET NEEDLE(5F81-3)
3130528
Unavailable
5
RING Substituted by 3130752
3130509
Unavailable
6
DIAPHRAGM ASM.
3130506
Unavailable
7
NEEDLE JET (P-8) (P-8)
3130510
$44.51
8
SCREW
3130541
$11.19
9
WASHER,SPRING
3130540
$4.79
10
JETBLOCK ASM.
3130504
$59.99
11
WASHER (10)
3130014
$1.59
12
MAIN JET,#140 (#140)
3130527
$8.08
13
SPRING
3130505
$23.99
14
Cover
3130503
$63.99
15
SCREW-MIKUNI C2=0408
3130592
Unavailable
16
HOLDER,GUIDE
3130199
$28.32
17
SPRING
3130538
$4.79
18
PLUNGER ASM. Substituted by 3130539
3130593
$34.74
19
JET,AIR,#130 (See Footnote) (#130) (Before engine S/N 95-06949)
3130542
Unavailable
20
O-Ring
3130512
$39.99
21
COVER
3130511
$43.99
22
SCREW
3130535
$7.19
23
GUIDE,CABLE
3130543
$27.99
24
SHAFT ASM,THROTTLE
3130513
$79.99
25
SCREW
3130501
$3.99
26
Ring
3130514
$7.19
27
SPRING
3130589
$23.99
28
SEAL
3130515
$11.99
28
SEAL
3130515
$11.99
29
VALVE,THROTTLE (100)
3130502
$47.99
30
Spring
3130544
$9.59
31
Ring
3130545
$12.13
32
SCREW, ADJ.
3130546
$13.59
33
SCREW
3130521
$10.39
34
FLOATBODY ASM.
3130590
$103.99
35
SCREW
3130520
$1.59
36
O-RING
3130532
$31.99
37
FLOAT ASM.
3130529
$79.99
38
Adjuster
3130524
$23.99
39
Spring
3130525
$4.79
40
VALVE,NEEDLE
3130531
Unavailable
41
Washer
3130523
$2.39
42
O-Ring
3130522
$5.65
43
JET,PILOT,#42.5 (See Footnote) (#42.5) (Before Engine S/N 95-06949)
3130526
$27.99
43
JET,PILOT,#40 (See Footnote) (#40) (After Engine S/N 95-06949)
3130624
$23.99
44
SCREW
3130591
$3.99
45
PLATE
3130594
$27.99
46
O-RING
3130533
$5.59
47
FILTER
3130534
$8.79
48
PIN, FLOAT
3130361
$8.89
49
CAP
3130519
$10.39
50
E-RING
3130518
$1.59
51
PACKING
-------
Unavailable
