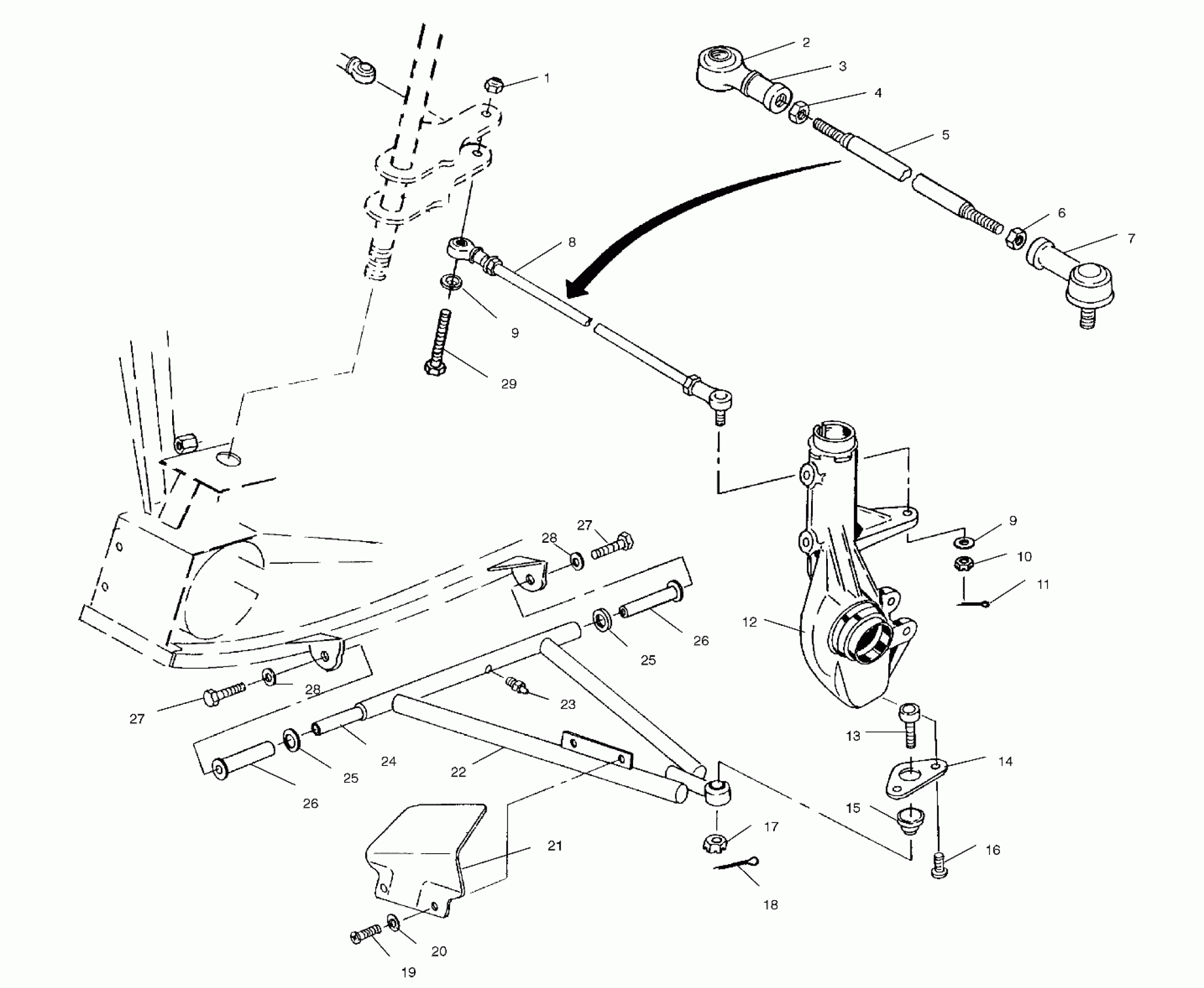

Polaris MAGNUM 4X4 - W958144 A-ARM/STRUT MOUNTING - W958144 (4926862686c005) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BOOT, SEAL, ROD END

5410540

$7.19

3

ROD END, RH Substituted by 1822179

7060149

Unavailable

4

NUT HEX(10)

7542401

$2.39

5

ROD, TIE

5020745

$48.87

5

ROD, TIE (After Serial # 2501800)

5020768

$48.87

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END,LH,W/FTG,10 MM. (After Serial #2501800)

7060171

$55.99

8

TIE ROD ASM. Substituted by 1822478 (After Serial #2501800)

1822202

Unavailable

8

TIEROD ASM,RELUBE

1822309

Unavailable

9

WASHER(10)

7555806

$1.49

9

WASHER(10)

7555806

$1.49

10

NUT, CASTLE(10)

7546904

$4.79

11

PIN COTTER(10)

7661203

$1.49

12

HUBSTRUT ASM,LH, 32 MM.

1843054

Unavailable

12

HUBSTRUT ASM,RH, 32 MM.

1843055

Unavailable

13

BALL JOINT Substituted by 7080673

7080364

Unavailable

14

BRACKET-BALL JOINT

5211121

$31.99

15

Boot, Rubber

5410548

Unavailable

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

COTTER PIN(10)

7661401

$1.49

19

SCREW(10)

7512017

$4.79

20

WASHER(10)

7555792

$4.79

21

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

21

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

Unavailable

22

KIT,A-FRAME,LH (Incl. 18,22,25-28)

2200627

$123.70

22

KIT,A-FRAME,RH (Incl. 18,22,25-28)

2200628

$123.70

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

Shaft, A-Arm

5020681

Unavailable

25

BUSHING,A-ARM SPACER(10)

5020677

$10.39

25

BUSHING,A-ARM SPACER(10)

5020677

$10.39

26

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

26

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT(10) Substituted by 7515554

7515507

Unavailable
