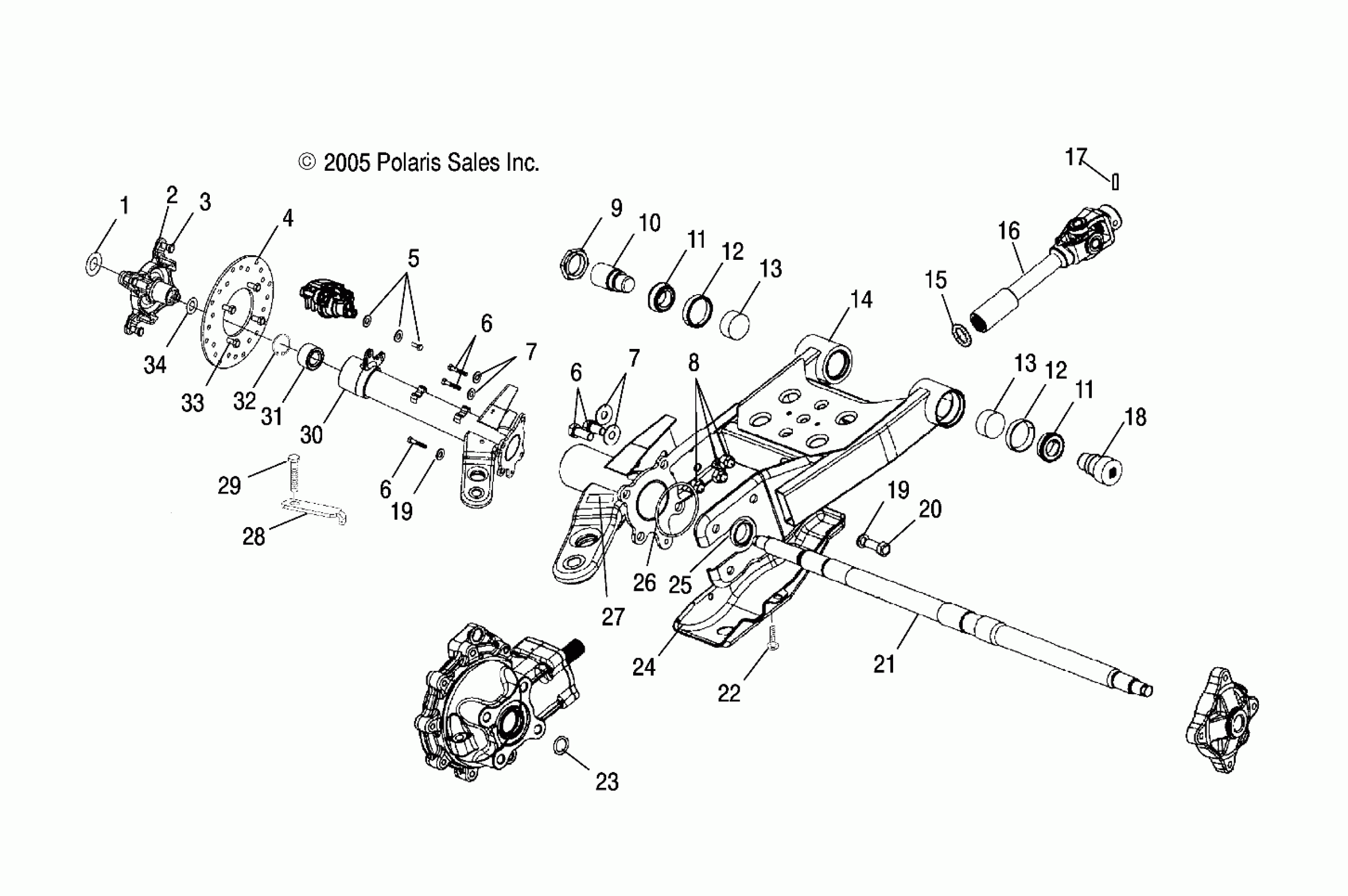

Polaris MAGNUM 330 4X4 - A06CD32AA SWING ARM, REAR/GEARCASE MOUNTING - A06CD32AA/AB/AC (4999201699920169C09) Diagram

#

Description
Price

1

O-Ring

5411531

Unavailable

2

Hub, Wheel

5134211

$144.03

3

Stud

7515513

$1.19

4

Disc, Brake, Rear

5244882

Unavailable

5

Washer, Spring Lock

7552603

$0.79

5

Bolt

7515481

$1.81

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER

7555721

$1.19

7

WASHER

7555721

$1.19

8

Nut, Nylok

7547065

$3.97

9

Nut, Jam

5133387

Unavailable

10

Pivot, Threaded, LH

5133388

Unavailable

11

Bearing, Tapered Roller Cone

3514399

$28.49

11

Bearing, Tapered Roller Cone

3514399

$28.49

12

Bearing, Tapered Roller Cup

3514398

Unavailable

12

Bearing, Tapered Roller Cup

3514398

Unavailable

13

Foam

5812447

Unavailable

13

Foam

5812447

Unavailable

14

Asm., Swing Arm [Incl. 12]

1541820

Unavailable

15

O-Ring

5412202

$4.03

16

Asm., Prop Shaft, Rear

1380202

Unavailable

17

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.97

18

Pivot, Swing Arm, RH

5133389

Unavailable

19

Washer, Split Lock

7553201

$3.97

19

Washer, Split Lock

7553201

$3.97

20

Bolt

7517585

$4.76

21

Axle, Rear

5134212

$249.99

22

Screw

7517612

Unavailable

23

O-Ring

5411531

Unavailable

24

Asm., Skid Plate, Rear

1012881

$57.94

24

Plate, Skid, Black

5242851-067

$19.68

24

Pad, Rubber

5811716

Unavailable

25

Collar, Axle Lock

5132698

Unavailable

26

O-Ring

5411707

Unavailable

27

Decal, Hitch

7170910

Unavailable

28

Clamp, Brake Line, Rear

5245050

$1.75

29

Screw

7512017

$4.76

30

Tube, Axle, Black, LH

1013264-067

Unavailable

31

Bearing Hubstrut

3514342

$39.68

32

RING, RETAINING

7710507

$2.38

33

BOLT

7512325

$2.38

34

O-Ring

5412022

Unavailable
