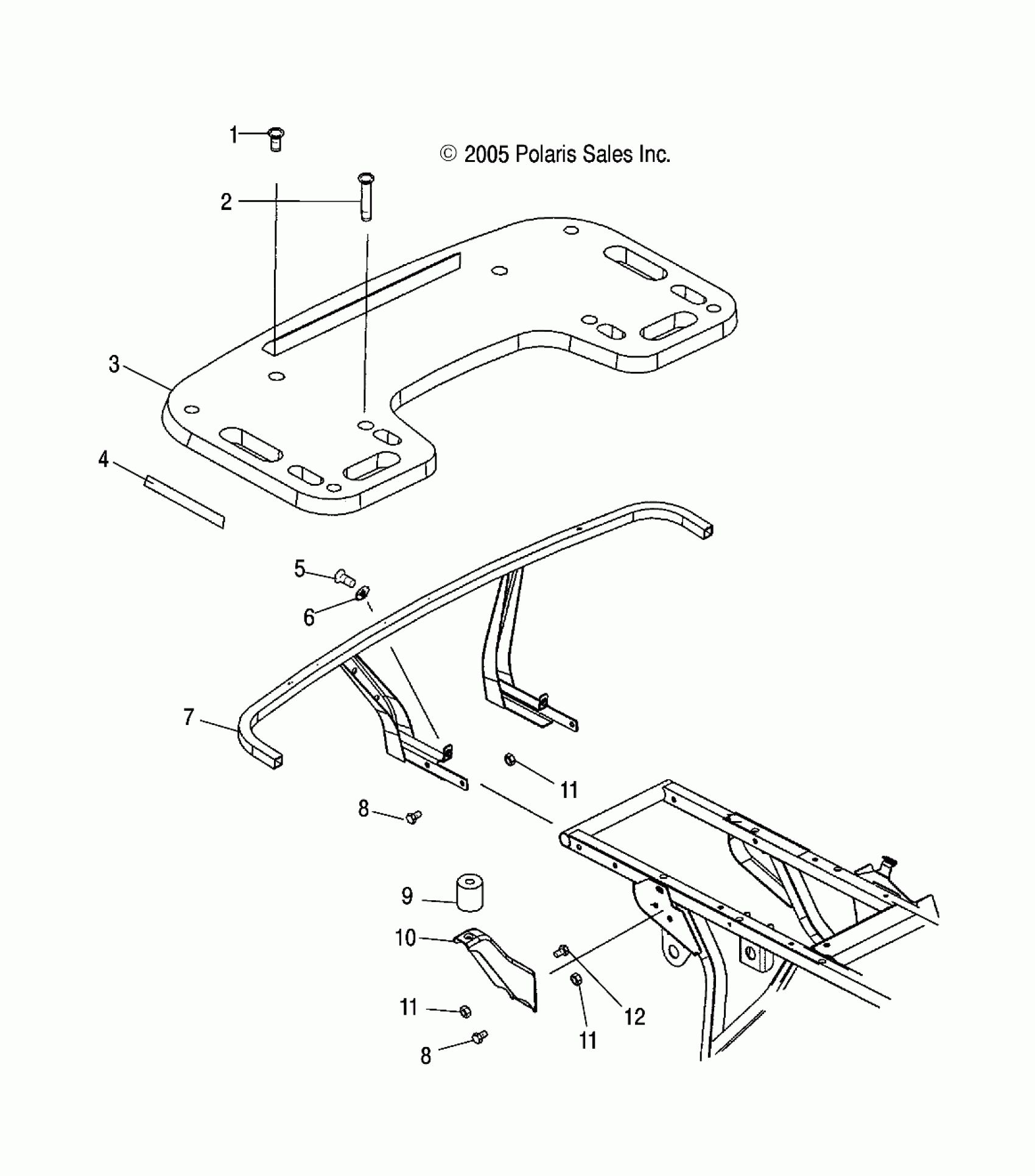

Polaris MAGNUM 330 4X4 - A06CD32AA RACK MOUNTING, REAR - A06CD32AA/AB/AC (4999201699920169A06) Diagram

#

Description
Price

1

Screw

7518280

$1.49

2

Screw

7517983

$9.59

3

Asm., Rack, Rear, Black [Incl. Ref. 4 and Warning Decal]

2632996-070

Unavailable

4

Decal, Reflector, Red

7079927

Unavailable

5

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

6

Washer, Flat

7555859

$1.49

7

Support, Rear Rack, Black

1013724-067

Unavailable

8

Bolt

7518341

$4.79

8

Bolt

7518341

$4.79

9

Spacer

5334092

$10.99

10

Mount, Front, Rear Rack, Black

5246394-067

Unavailable

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

BOLT

7512371

$4.79
