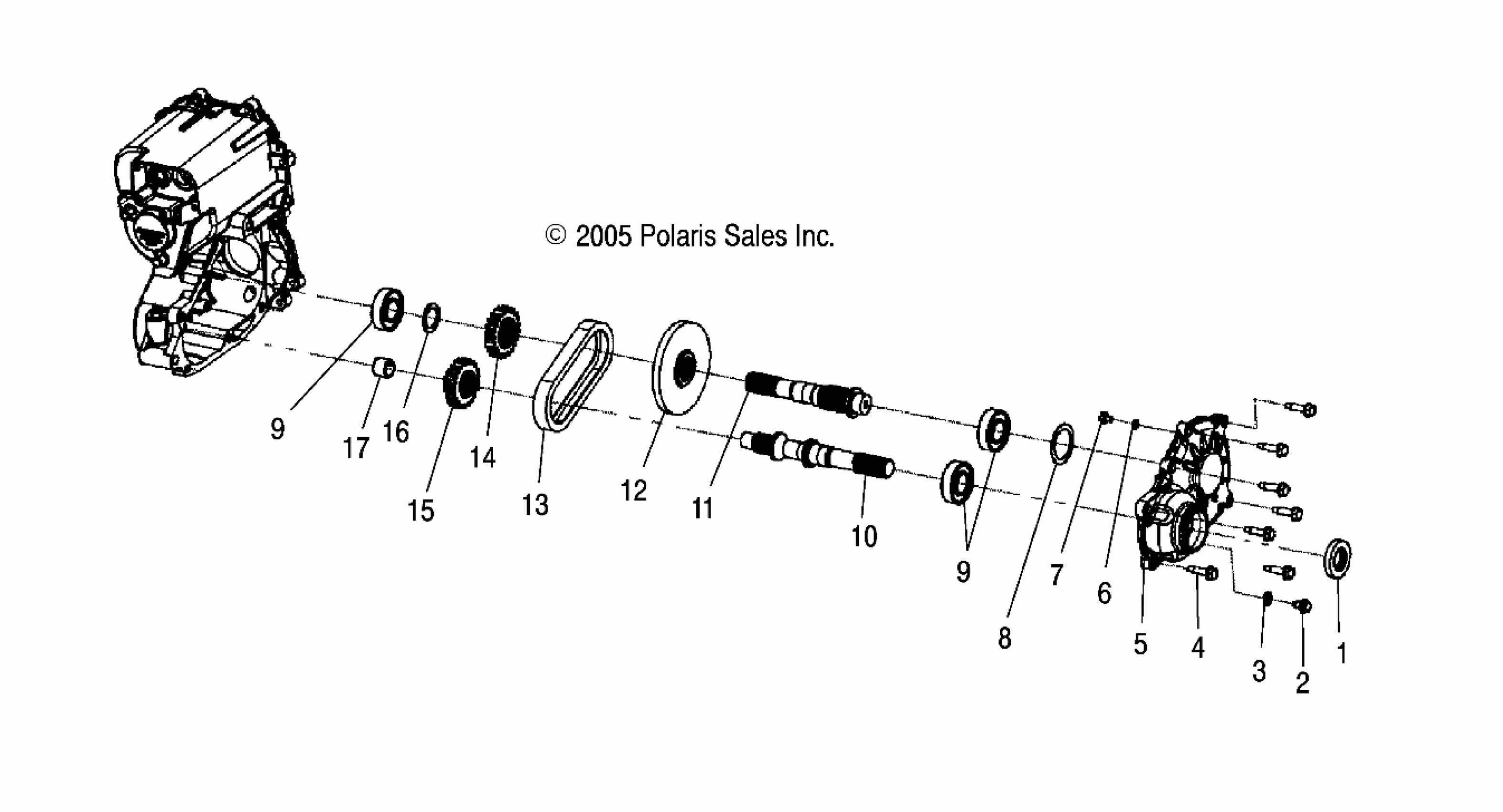

Polaris MAGNUM 330 4X4 - A06CD32AA GEARCASE, OUTPUT - A06CD32AA/AB/AC (4999201699920169C06) Diagram

#

Description
Price

-

Asm., Gearcase, Shaft

1341372

$1,919.99

1

Seal, Triple Lip

3233788

$32.37

2

Plug, Hex Flange

3233777

$34.99

3

Washer, Plug

3233254

$8.08

4

Screw

3233846

$7.14

5

Cover, Output, Front

3233781

Unavailable

6

SHIM

3233583

$33.24

7

THRUST BUTTON

3233582

$8.99

8

SHIM

3233611

$34.99

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

10

SHAFT,FRONT OUTPUT

3233625

$141.65

11

Shaft, Output, Rear

3233622

Unavailable

12

Subasm., Ground Spiral Bevel [Incl. Ref. 25 from Gearcase, Internal Components page]

3234912

Unavailable

13

CHAIN, SILENT

3233784

$93.08

14

Sprocket, 22/18T

3233873

$124.99

15

SPROCKET-22T

3233844

$144.99

16

WASHER,THRUST

3233619

$24.99

17

BUSHING-GARLOCK

3233552

$23.81
