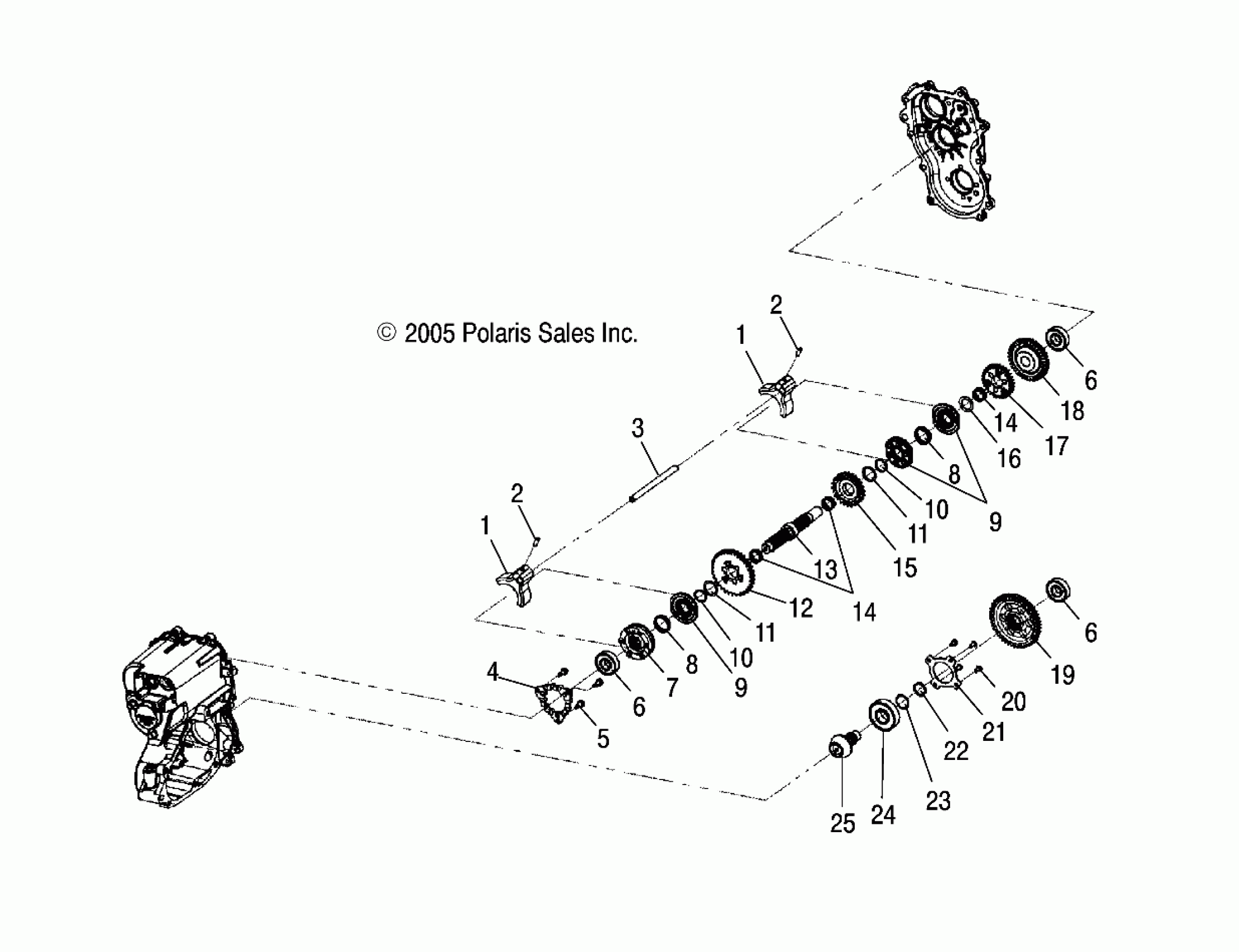

Polaris MAGNUM 330 4X4 - A06CD32AA GEARCASE, INTERNAL COMPONENTS - A06CD32AA/AB/AC (4999201699920169C05) Diagram

#

Description
Price

-

Asm., Gearcase, Shaft

1341372

$1,919.99

1

Sub Asm., Fork, Shift w/Pin [Incl. 2]

3234141

Unavailable

1

Sub Asm., Fork, Shift w/Pin [Incl. 2]

3234141

Unavailable

2

Pin, Dowel

----

Unavailable

2

Pin, Dowel

----

Unavailable

3

RAIL, SHIFT SHAFT

3233860

$64.99

4

Plate

3233915

$40.46

5

SCREW

3233826

$9.52

6

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

6

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

6

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

7

Dog, Engagement, Park

3234040

Unavailable

8

SPRING, WAVE

3234144

$33.24

8

SPRING, WAVE

3234144

$33.24

9

Dog, Engagement

3233875

$165.94

9

Dog, Engagement

3233875

$165.94

10

RING, RETAINING

3233850

$10.32

10

RING, RETAINING

3233850

$10.32

11

WASHER

3233851

$10.32

11

WASHER

3233851

$10.32

12

Gear, 33T

3234027

$133.99

13

Shaft, Reverse

3233853

Unavailable

14

BEARING, NEEDLE

3233718

$35.71

14

BEARING, NEEDLE

3233718

$35.71

15

Sprocket, 24T

3233854

$169.99

16

WASHER

3233855

$10.32

17

Gear, 30T

3233856

$267.13

18

Gear, 36T

3234014

$179.99

19

Gear, 48T

3233709

$178.57

20

Screw

3233608

$5.99

21

Cover, Bearing

3233609

$19.99

22

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

23

SPACER

3233357

$24.99

24

Bearing, Ball

3233607

$36.41

25

Subasm., Ground Spiral Bevel [Incl. Ref. 12 from Gearcase, Output page]

3234912

Unavailable
