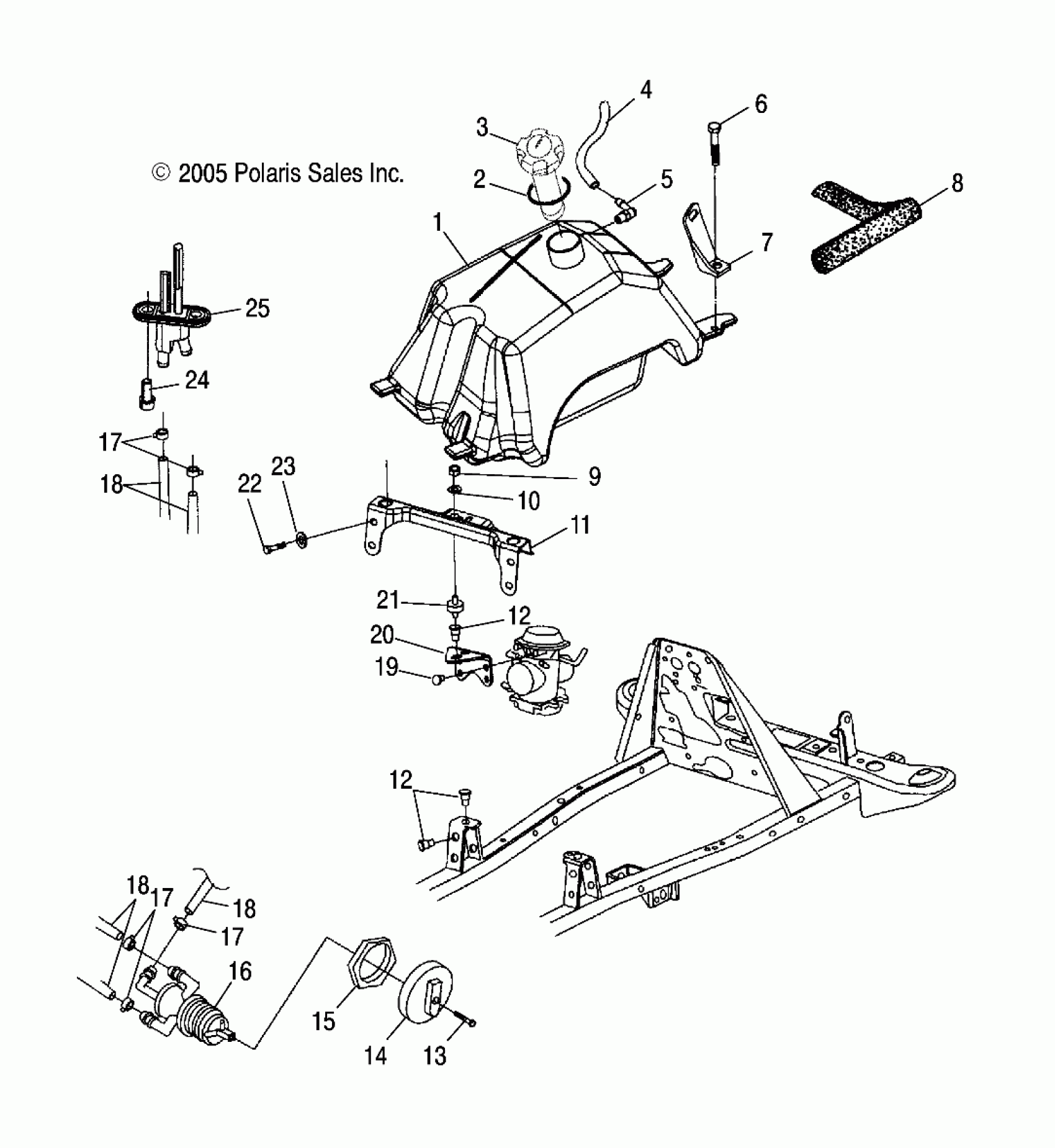

Polaris MAGNUM 330 4X4 - A06CD32AA FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01) Diagram

#

Description
Price

1

Asm., Tank, Fuel

2520409

Unavailable

2

GASKET

5812123

$5.65

3

Kit, Fuel Gauge

2873626

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7512277

$4.79

7

Bracket, Fuel, Cover Mount, LH

5222154

Unavailable

7

Bracket, Fuel, Cover Mount, RH

5222155

Unavailable

8

Seal, Foam

5811899

Unavailable

9

Nut, Hex

7542105

$3.99

10

WASHER, SPRING LOCK

7552801

$1.59

11

Bracket, Carburetor Support, Black

5245671-067

Unavailable

12

Nutsert, Hex

7547069

$3.99

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Line, Fuel

8450103

Unavailable

18

Line, Fuel

8450103

Unavailable

18

Line, Fuel

8450103

Unavailable

19

Asm., Screw and Washer

3084205

$3.99

20

Mount, Carburetor, Black

5245674-067

Unavailable

21

MOUNT, CARBURETOR

3110050

$12.99

22

Bolt

7512276

$4.79

23

Washer, Flat

7558301

$1.49

24

Screw

7515136

$1.49

25

Fitting, Fuel, Duel Outlet

7052364

Unavailable
