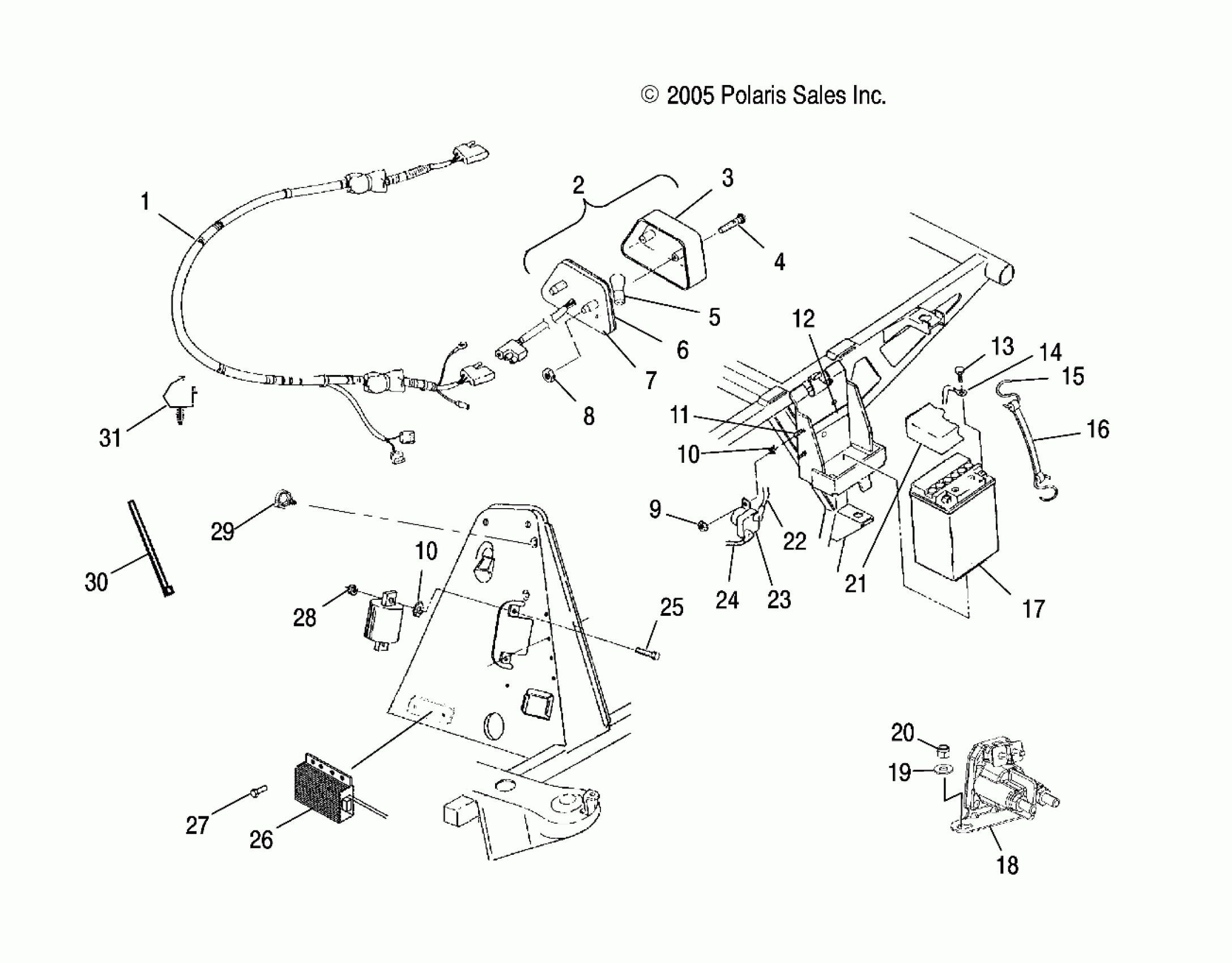

Polaris MAGNUM 330 4X4 - A06CD32AA ELECTRICAL/TAILLIGHT - A06CD32AA/AB/AC (4999201699920169C01) Diagram

#

Description
Price

1

Kit, Fusible Link, .5MM

2202147

$84.99

1

Kit, Harness, Resistor Module

2204890

$161.49

1

Harness, Main [Incl. Resistor, Fuse Link Kit]

2410500

Unavailable

2

Asm., Taillight [Incl. 3-8]

2410320

$63.49

3

Lens, Taillight

4032046

$32.37

4

Screw

4032029

$4.76

5

Bulb

4030043

$6.46

6

Gasket

4032045

$4.03

7

BACKING, TAILLIGHT/BRAKE LIGHT

----

Unavailable

8

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

9

Nut, Nylok

7518287

$3.17

10

Washer

7571602

$4.76

10

Washer

7571602

$4.76

11

Screw

7512027

$1.19

12

PAD-BATTERY

5810290

$7.27

13

KIT, BATTERY BOLT

2202213

$3.79

14

Cable, Battery/Engine

4010095

Unavailable

15

Hook, Battery Strap

7010032

$1.59

16

STRAP, BATTERY HOLDDOWN

5412499

$4.84

17

Battery

4010774

$128.56

18

Switch, Magneto

4011251

$76.89

19

WASHER, SPRING LOCK

7552801

$1.59

20

Nut, Hex

7547283

$3.17

21

Cover, Battery

5431769

$15.37

22

Cable, Battery/Solenoid

4010094

Unavailable

23

Switch, Magnetic

4011251

$76.89

24

Cable, Solenoid/Starter

4010093

$48.56

25

BOLT

7512007

$3.97

26

Module, Controller

4011088

$189.99

27

SCREW

7512024

$4.76

28

Nut, Nylok

7541925

$0.79

29

CLIP, ROSEBUD

4020139

$4.76

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CLIP, ROUTING

7670109

$2.38
