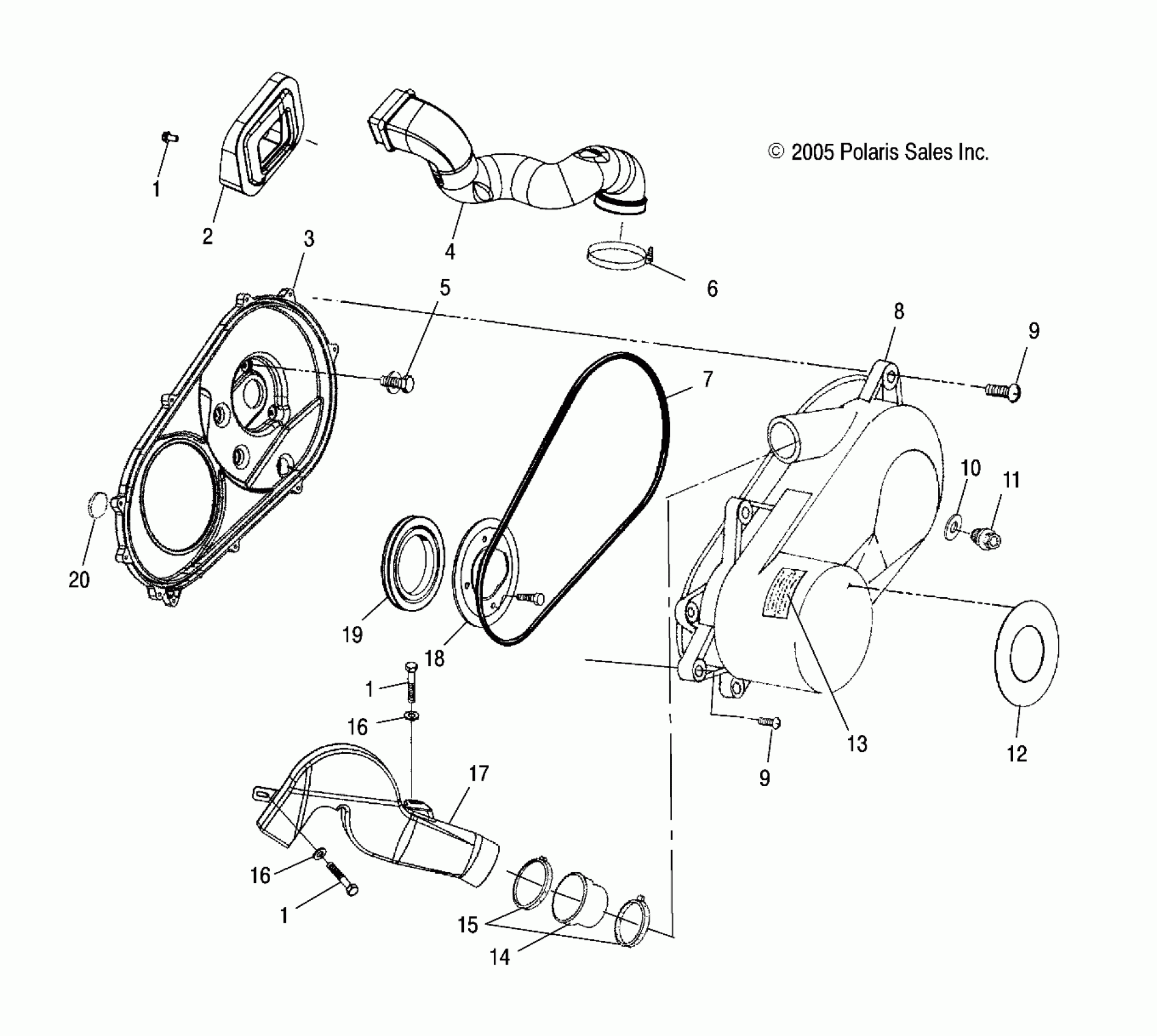

Polaris MAGNUM 330 4X4 - A06CD32AA CLUTCH COVER - A06CD32AA/AB/AC (4999201699920169B14) Diagram

#

Description
Price

-

Asm., Clutch Cover, Outer

2633261

$186.17

1

SCREW

7517386

$1.19

1

SCREW

7517386

$1.19

1

SCREW

7517386

$1.19

2

Asm., Foam, Clutch Air Inlet

2632513

$54.99

3

Kit, Inner Clutch Cover

2201956

Unavailable

4

Duct, Inlet

5433363

Unavailable

5

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

6

CLAMP, NARROW BAND

7080909

$7.94

7

Seal, Outer, Clutch Cover

5521578

$44.51

8

Asm., Clutch Cover, Outer

2633262

$186.17

9

SCREW

7512094

$1.59

9

SCREW

7512094

$1.59

10

O RING-.364X.504X.07

5410542

$4.84

11

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

12

DECAL, "AUTOMATIC TRANSMISSION"

7172746

Unavailable

13

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

14

BOOT, DUCT

5412636

$24.27

15

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

16

Washer, Flat

7558301

$1.19

16

Washer, Flat

7558301

$1.19

17

Duct, Air Outlet

5434213

Unavailable

18

Bracket, Clutch Seal

5242046

$36.41

19

Seal, Cover Case

5410575

$44.51

20

Stopper, Inner Clutch Cover

5411795

Unavailable
