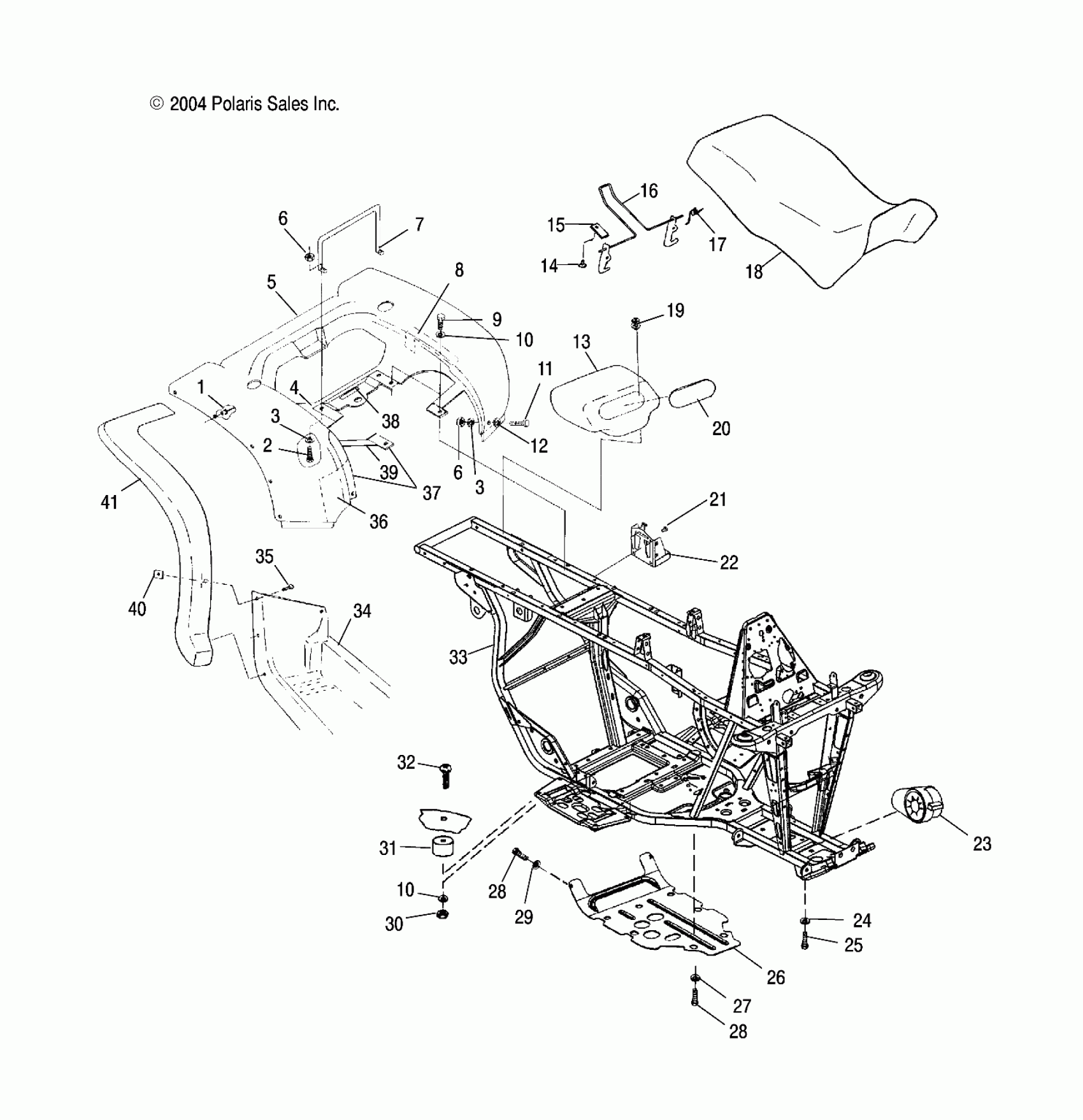

Polaris MAGNUM 330 4X4 - A05CD32AA REAR CAB and SEAT - A05CD32AA/AB/AC (4994909490A03) Diagram

#

Description
Price

1

Rivet

7661645

Unavailable

2

Bolt

7511930

$2.38

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear, Camo Green Metallic [AB]

5432117-400

Unavailable

5

Cab, Rear, New Break Up [AC]

5435164-455

$529.99

5

Cab, Rear, Silver Vapor Metallic [AA]

5432117-382

Unavailable

6

Nut, Nylok

7541925

$0.79

6

Nut, Nylok

7541925

$0.79

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

10

Washer, Flat

7555859

$1.19

11

Screw

7512085

Unavailable

12

WASHER

7556034

$2.38

13

Box, Tool

5431786

$53.17

14

RIVET

7621403

$1.19

15

BRACKET, LEVER RETAINER

5211033

$34.99

16

LATCH, SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

Asm., Seat, Black

2683222-070

$445.22

18

Covering, Seat, Black

2682958-070

$149.75

19

Screw

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Screw

7515199

$1.19

22

Box, Battery

1040447-067

$25.40

23

ASM., FRONT GEARCASE [SEE FRONT HOUSING PG. C6 FOR DETAILS]

----

Unavailable

24

Washer, Spring Lock

7552603

$0.79

25

Screw

7512492

$1.19

26

Guard, Rock

5435005

Unavailable

27

WASHER-SKID PLATE

7556065

$4.76

28

SCREW

7517386

$1.19

28

SCREW

7517386

$1.19

29

Washer, Flat

7558301

$1.19

30

Nut, Nylok

7542122

$1.19

31

Grommet

5412156

Unavailable

32

Screw

7517987

Unavailable

33

Frame, Main

1014293-067

Unavailable

34

Footwell, LH, Black

5432221-070

$230.70

34

Footwell, RH, Black

5433219-070

$230.70

35

SCREW

7512232

$1.19

36

Foil, Rear Fender

5811111

Unavailable

37

Foil, Tape

5811322

Unavailable

38

Decal, 4 Stroke Carburetor/Filter

7170007

Unavailable

39

Foil

5811087

Unavailable

40

NUT, U-TYPE SPEED

7670057

$1.19

41

Guard, Mud, Rear, LH

5431796-070

Unavailable

41

Guard, Mud, Rear, RH

5431797-070

Unavailable
