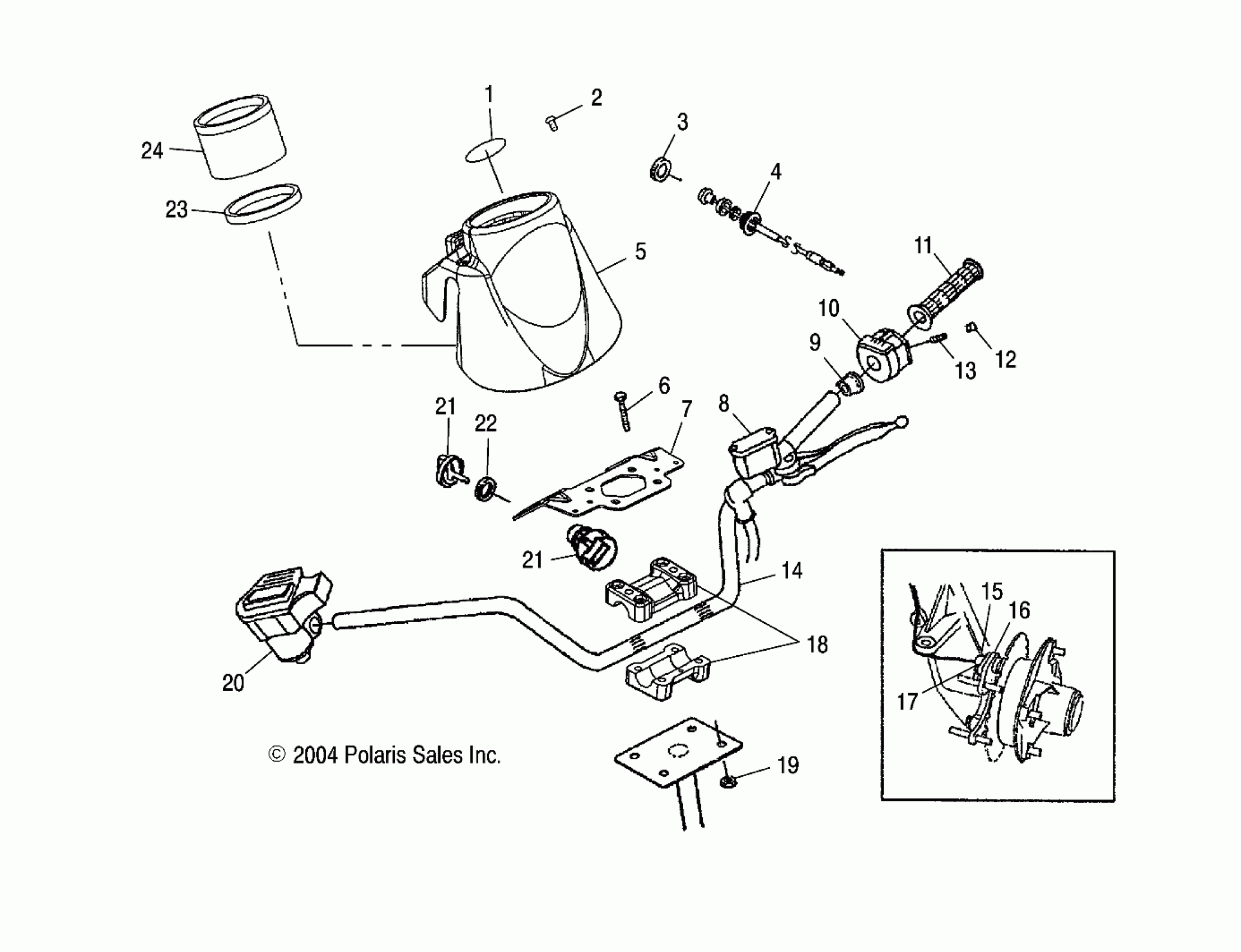

Polaris MAGNUM 330 4X4 - A05CD32AA HANDLEBAR - A05CD32AA/AB/AC (4994909490B13) Diagram

#

Description
Price

1

LOGO-POLARIS STAR

7078465

$11.32

2

SCREW

7518176

$4.79

3

Nut, Choke

7080922

$3.19

4

CABLE, CHOKE

7081171

Unavailable

5

Panel, Instrument

5435256-070

Unavailable

6

SCREW

7515189

Unavailable

7

Bracket, Instrument Panel

5248182

$4.37

8

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYL./BRAKE LINE PG. A8 FOR DETAILS]

-------

Unavailable

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, Hi/Lo/Off

4010592

$38.60

11

Grip, Handlebar

5433834-070

$24.27

12

PLUG, HOLE

5432952

$5.59

13

SCREW, SET

7517625

$4.79

14

Tube, Handlebar

5334127-067

Unavailable

15

Cap, Hall Sensor

5132382

$23.99

16

Sensor, Hall Effect

4010298

$111.99

17

Screw

7517658

$5.59

18

BLOCK, HANDLEBAR

5631973

$27.99

18

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

19

Nut, Nylok

7542122

$1.49

20

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B11, REF. 5]

-------

Unavailable

21

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

21

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

21

Switch, Ignition

4011002

Unavailable

21

Cover, Key

5431964

Unavailable

21

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

21

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

21

Switch, Ignition

4011002

Unavailable

21

Cover, Key

5431964

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

23

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

24

Cluster, Instrument

3280450

Unavailable
