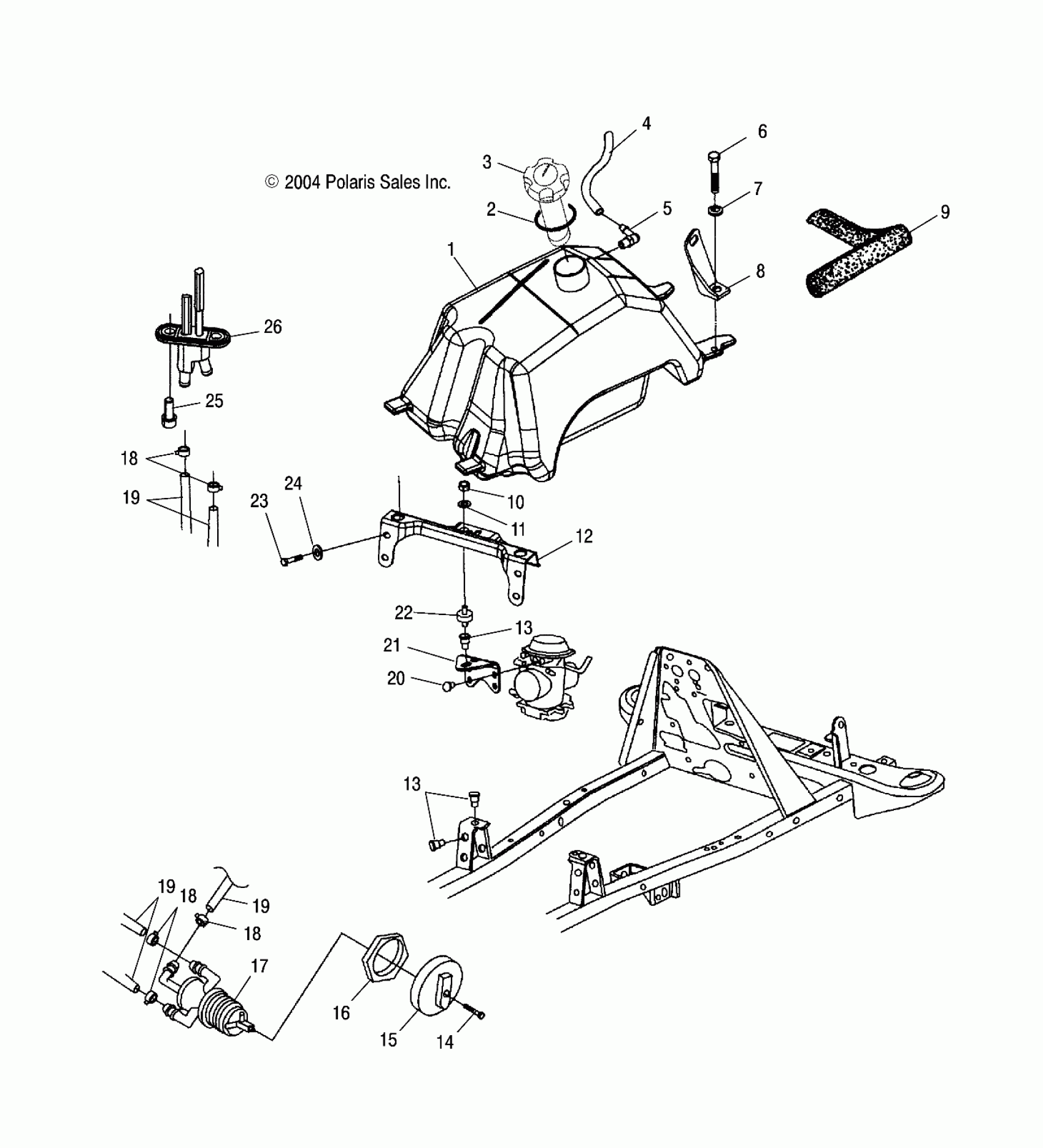

Polaris MAGNUM 330 4X4 - A05CD32AA FUEL TANK and CARBURETOR MOUNTING - A05CD32AA/AB/AC (4994909490B03) Diagram

#

Description
Price

1

Asm., Tank, Fuel

2520409

Unavailable

2

GASKET

5812123

$5.65

3

Kit, Fuel Gauge

2873626

Unavailable

4

Hose, Vent

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7512277

$4.79

7

Washer, Flat

7558301

$1.49

8

Bracket, Fuel, Cover Mount, LH

5222154

Unavailable

8

Bracket, Fuel, Cover Mount, RH

5222155

Unavailable

9

Seal, Foam

5811899

Unavailable

10

Nut, Hex

7542105

$3.99

11

WASHER, SPRING LOCK

7552801

$1.59

12

Bracket, Carburetor Support

5245671-067

Unavailable

13

Nutsert

7547069

$3.99

13

Nutsert

7547069

$3.99

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

Line, Fuel

8450103

Unavailable

19

Line, Fuel

8450103

Unavailable

19

Line, Fuel

8450103

Unavailable

20

Asm., Screw and Washer

3084205

$3.99

21

Mount, Carburetor

5245674-067

Unavailable

22

MOUNT, CARBURETOR

3110050

$12.99

23

Bolt

7512276

$4.79

24

Washer, Flat

7555859

$1.49

25

Screw

7515136

$1.49

26

Fitting, Fuel, Duel Outlet

7052364

Unavailable
