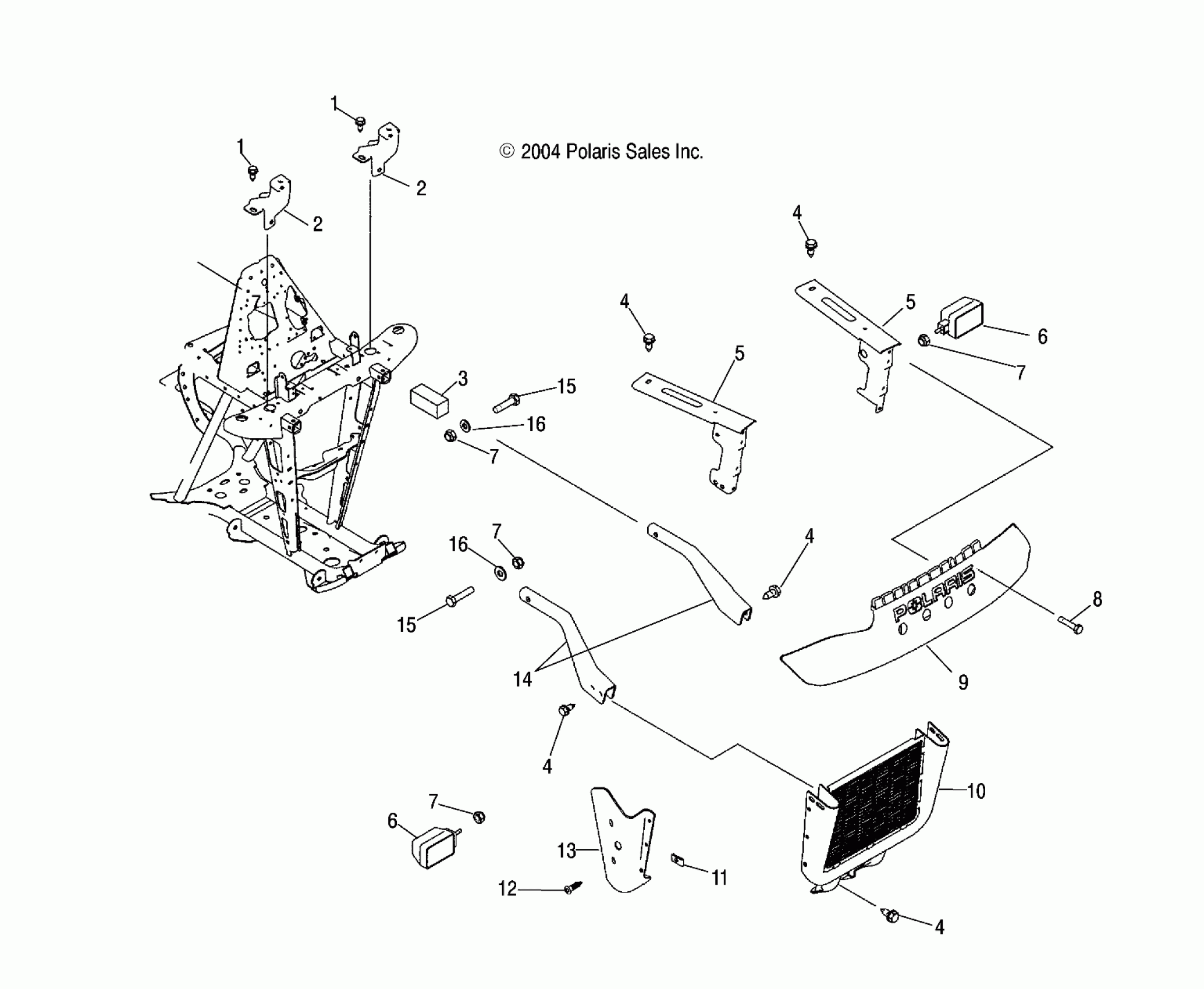

Polaris MAGNUM 330 4X4 - A05CD32AA FRONT RACK and BUMPER MOUNTING - A05CD32AA/AB/AC (4994909490A07) Diagram

#

Description
Price

1

SCREW

7512232

$1.19

1

SCREW

7512232

$1.19

2

Support, Front Rack, LH

1013744-067

Unavailable

2

Support, Front Rack, RH

1013746-067

$94.99

2

Support, Front Rack, LH

1013744-067

Unavailable

2

Support, Front Rack, RH

1013746-067

$94.99

3

PLUG, FRAME

5810467

Unavailable

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

5

Mount, Rack, LH

1014099-067

Unavailable

5

Mount, Rack, RH

1014101-067

Unavailable

5

Mount, Rack, LH

1014099-067

Unavailable

5

Mount, Rack, RH

1014101-067

Unavailable

6

Bulb, Headlamp, 30W

4030061

Unavailable

6

Asm., Headlight, Side, LH

2431011

Unavailable

6

Asm., Headlight, Side, RH

2431012

Unavailable

6

Bulb, Headlamp, 30W

4030061

Unavailable

6

Asm., Headlight, Side, LH

2431011

Unavailable

6

Asm., Headlight, Side, RH

2431012

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

8

Screw

7517977

Unavailable

9

Bumper

5432155-070

$142.86

10

Guard, Brush

1013772-067

Unavailable

11

Nut, U-Type

7670094

$5.56

12

Screw

7512097

$3.97

13

Shield, Radiator Side, LH

5433923

$32.37

13

Shield, Radiator Side, RH

5433924

$32.37

14

Extension, Frame, LH

5244729-067

$90.74

14

Extension, Frame, RH

5244730-067

$79.74

15

Bolt

7512329

$3.97

15

Bolt

7512329

$3.97

16

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

16

WASHER-.344X.688X.063 FL-Y

7558402

$0.99
