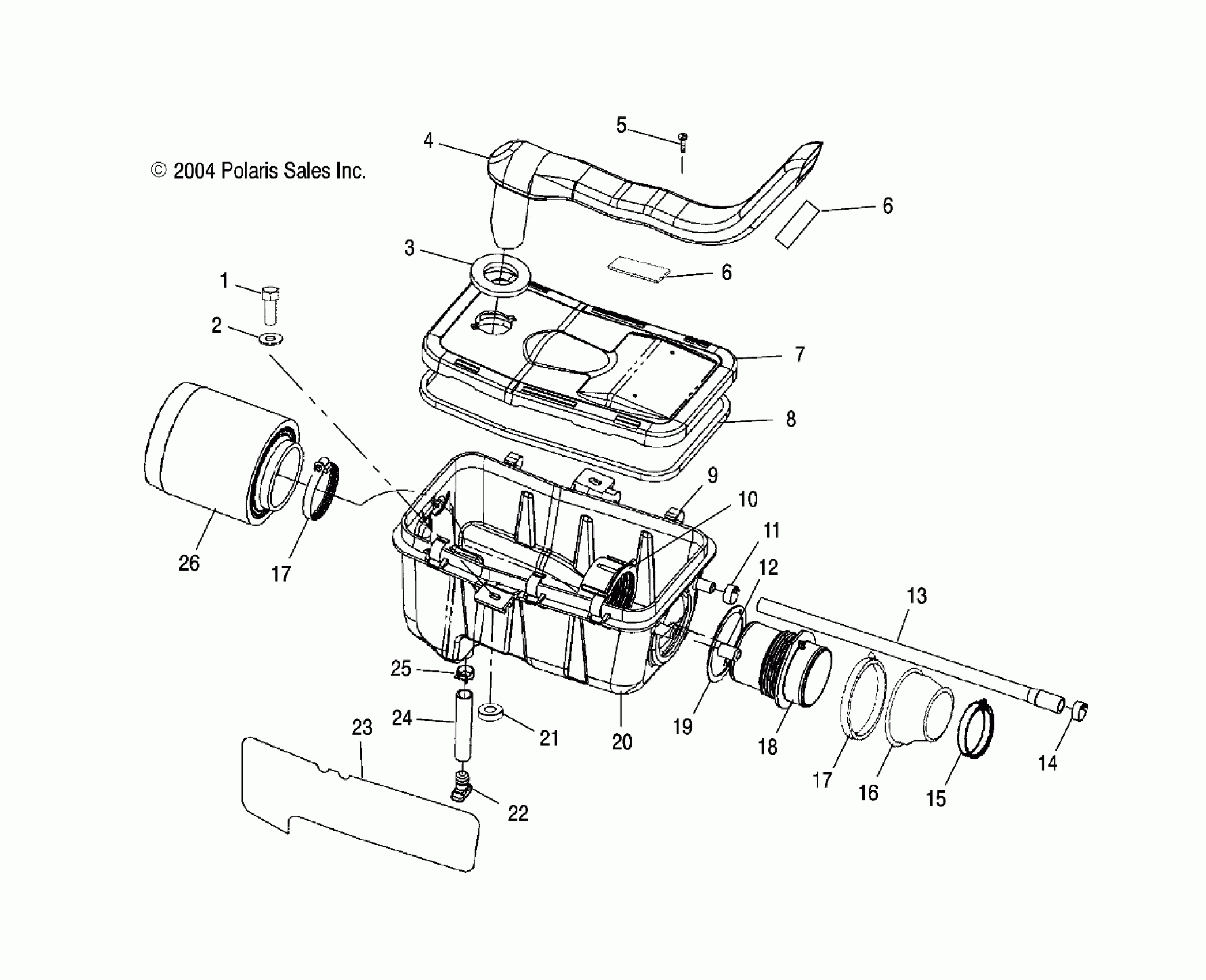

Polaris MAGNUM 330 4X4 - A05CD32AA AIR BOX - A05CD32AA/AB/AC (4994909490B06) Diagram

#

Description
Price

1

Screw

7518306

$3.99

2

Washer, Flat

7558301

$1.49

3

Seal, Airbox, Intake

5812023

$6.63

4

Duct, Inlet, Airbox Cover

5433920

Unavailable

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

Pad

5810317

Unavailable

6

Pad

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Air Box Cover

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carburetor Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

Cap, Rubber

5433396

$4.79

13

Hose, Breather

5411866

$11.59

14

Clamp, Hose, Spring

7080694

$6.53

15

Clamp, Narrow Band

7080511

$4.79

16

Boot, Carburetor

5411588

Unavailable

17

Clamp, Narrow Band

7080413

$3.19

17

Clamp, Narrow Band

7080413

$3.19

18

Duct, Carburetor Inlet

5433180

$32.37

19

Gasket, Carburetor Inlet

5830128

Unavailable

20

Box, Air Intake, 4 Stroke

5435758

Unavailable

21

Spacer

7556091

$3.99

22

Plug, Trap

5435299

$6.39

23

Foil, Air Box, RH

5812111

Unavailable

24

Line, Fuel

8450059-100

Unavailable

25

Clamp, Hose

7080650

$3.99

26

Asm., Filter

1253372

$27.99
