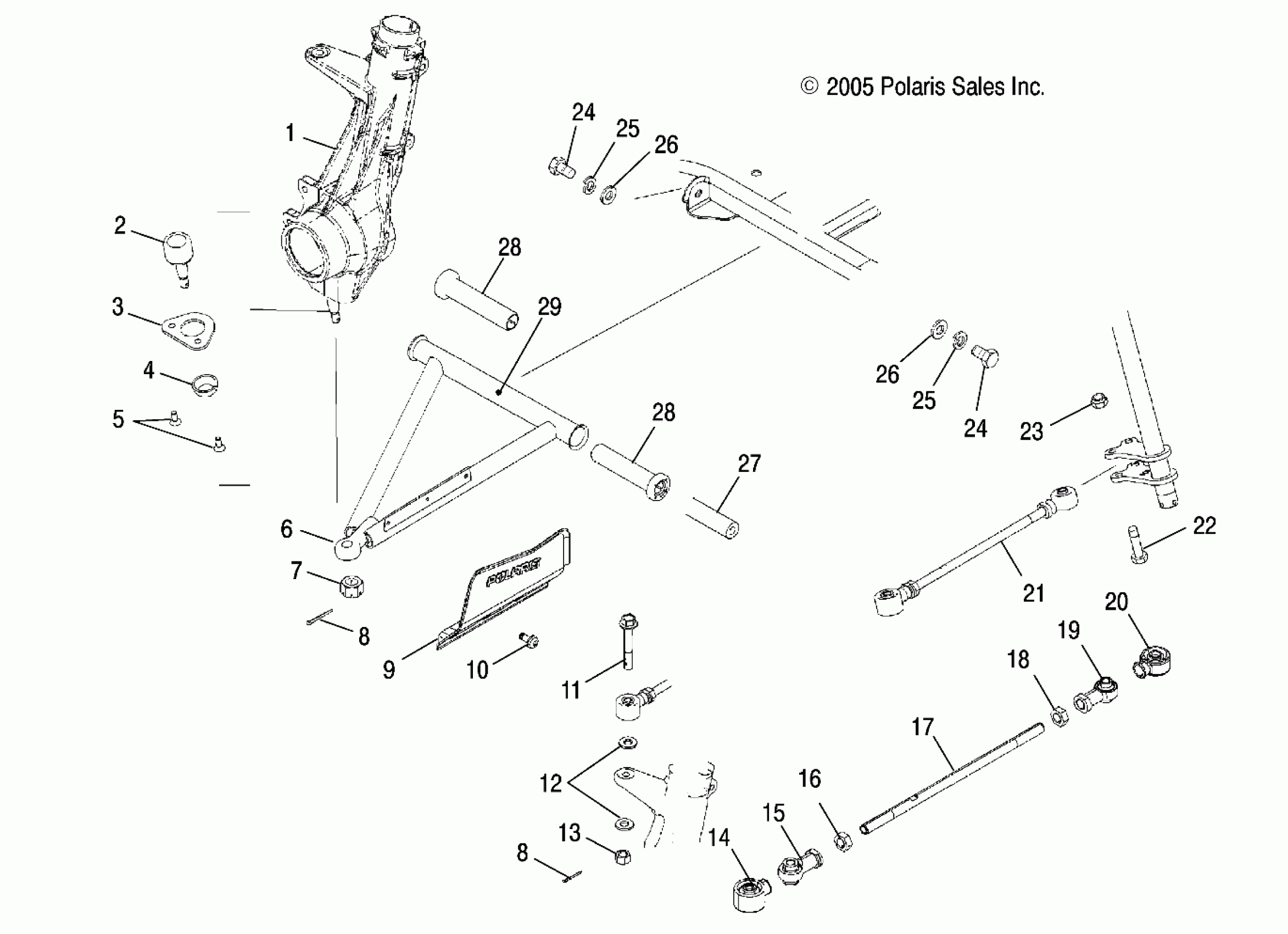

Polaris MAGNUM 330 4X4 - A05CD32AA A-ARM and STRUT MOUNTING - A05CD32AA/AB/AC (4999200299920029C03) Diagram

#

Description
Price

1

SUPPORT, HUBSTRUT [See Front Strut Page for Details]

----

Unavailable

2

Joint, Ball

7080927

$28.32

3

BRACKET-BALL JOINT

5211121

$32.37

4

Boot, Rubber

5410548

$4.84

5

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

6

Kit, A-Frame, LH [Incl. 8,24,25,27,28]

2202280

$170.99

6

Kit, A-Frame, RH [Incl. 8,24,25,27,28]

2202281

$170.99

7

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

8

Pin, Cotter

7661203

$1.19

8

Pin, Cotter

7661203

$1.19

9

Shield, CV Front, Black, LH

5435028-070

$24.27

9

Shield, CV Front, Black, RH

5435029-070

$24.27

10

Screw

7512084

$1.19

11

Bolt

7517909

$5.56

12

Washer

7556099

$1.59

13

Nut

7547177

$0.79

14

Boot, Seal, Rod End

5411920

$11.32

15

Rod End, LH

7061054

$56.65

16

Nut, Jam, LH

7547028

$2.38

17

Tie Rod

5020926

$44.51

18

Nut, Jam

7542711

$2.38

19

Rod End, RH

7061034

$60.70

20

Boot, Seal, Rod End

5412928

$11.32

20

Boot, Seal, Rod End

5411291

$11.32

21

Asm., Tie Rod [Incl. 15-20]

1820805

$133.56

22

Screw

7515415

$1.19

23

Nut, Nylok

7542439

$1.19

24

Screw

7512492

$1.19

24

Screw

7512492

$1.19

25

Washer, Spring Lock

7552603

$0.79

25

Washer, Spring Lock

7552603

$0.79

26

WSHR-.813X.406X.105-Y

7555832

$2.38

26

WSHR-.813X.406X.105-Y

7555832

$2.38

27

Shaft, A-Arm

5133806

$33.24

28

Bushing, A-Arm, Long

5434551

$5.56

28

Bushing, A-Arm, Long

5434551

$5.56

29

Fitting, Lub

7080433

$1.19
