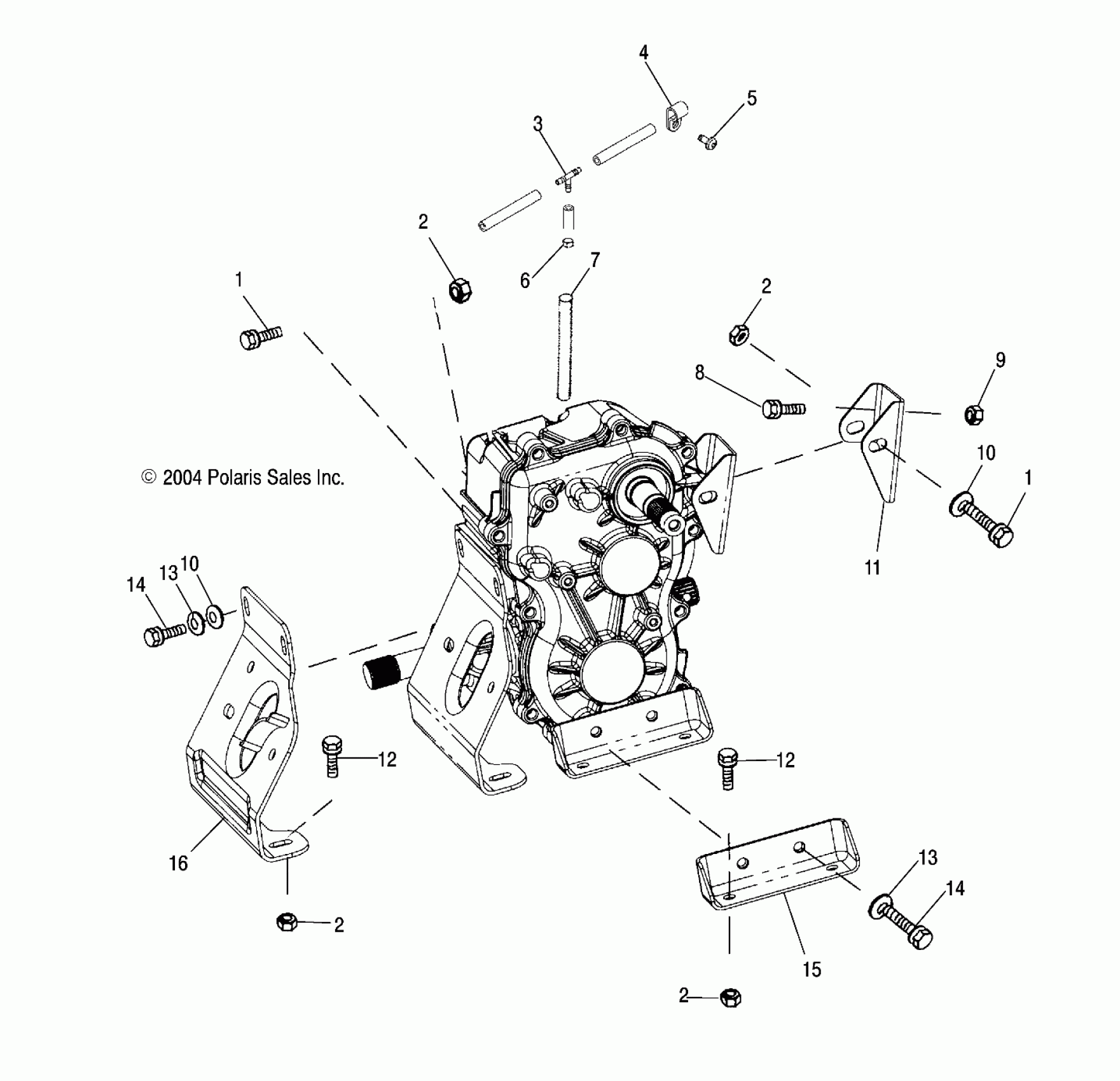

Polaris MAGNUM 330 4X4 - A04CD32AA TRANSMISSION MOUNTING - A04CD32AA/AB/AC/FB (4994909490C13) Diagram

#

Description
Price

-

ASM., GEARCASE [SEE GEARCASE PG., FOR DETAILS]

-------

Unavailable

1

SCREW

7515417

$4.79

1

SCREW

7515417

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

3

Fitting, T

7052075

$9.59

4

CLAMP, HOSE

7080693

$5.59

5

SCREW

7512024

$4.79

6

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

Line, Vent

8450003-1525

Unavailable

8

Bolt, Carriage

7512377

$4.79

9

Nut, Flange

7542321

$1.49

10

Washer, Flat

7555976

$3.99

10

Washer, Flat

7555976

$3.99

11

Mount, Rear Transmission

5247343

Unavailable

12

Screw

7517289

$4.79

12

Screw

7517289

$4.79

13

Washer, Spring Lock

7552603

$1.49

13

Washer, Spring Lock

7552603

$1.49

14

Bolt

7515522

$3.99

14

Bolt

7515522

$3.99

15

Mount, Transmission

5242820-067

$7.43

16

MOUNT, ENGINE,REAR [SEE ENGINE MOUNTING PG., REF. 15]

-------

Unavailable
