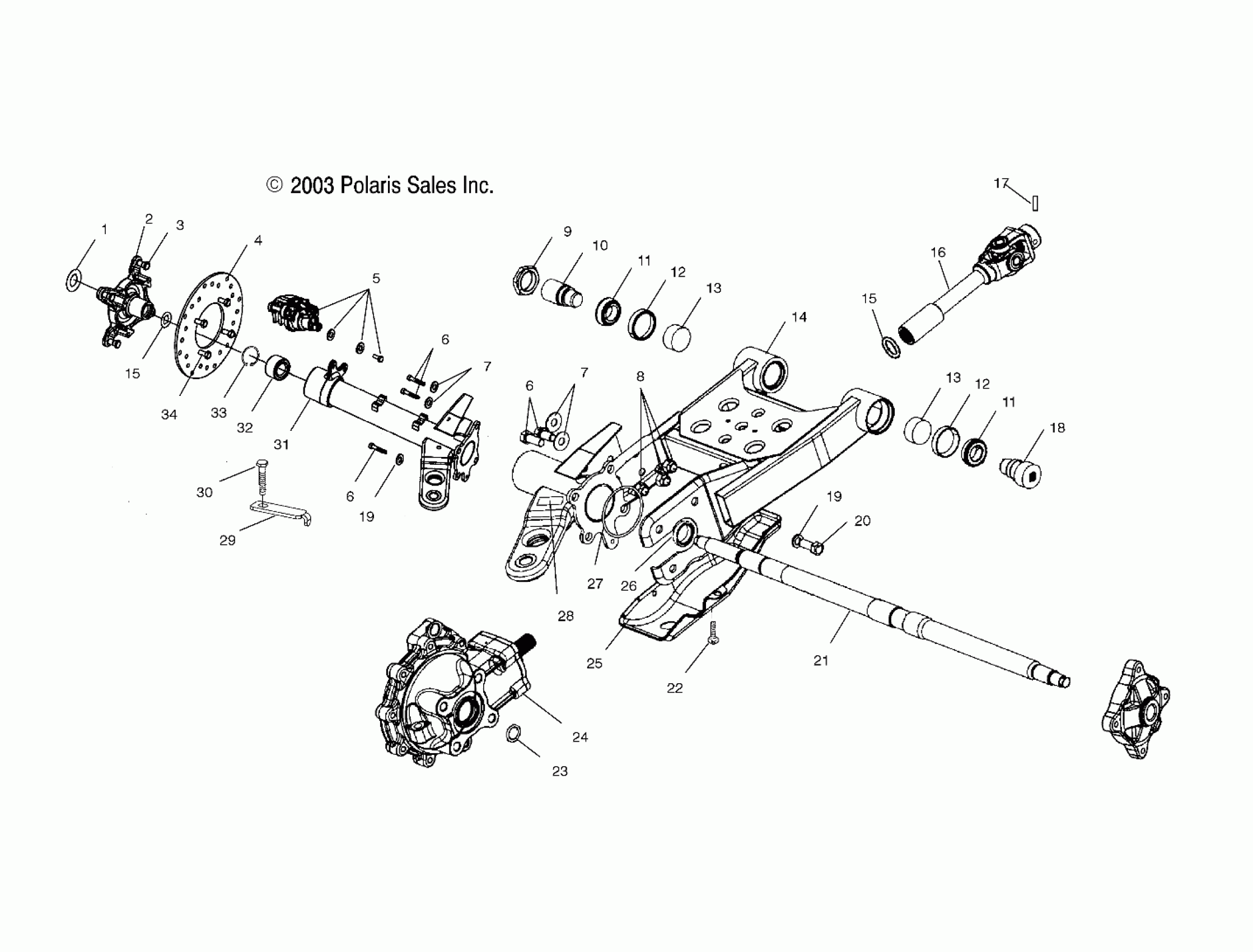

Polaris MAGNUM 330 4X4 - A04CD32AA SWING ARM/REAR/GEARCASE MOUNTING - A04CD32AA/AB/AC/FB (4986268626D01) Diagram

#

Description
Price

1

O-Ring

5412022

Unavailable

2

Hub, Wheel, AWD

5133360

Unavailable

3

Stud

7515513

$1.49

4

Disc, Brake, Rear

5244882

$94.99

5

Washer, Spring Lock

7552603

$1.49

5

Screw

7515481

$2.63

5

ASM., BRAKE CALIPER [SEE REAR BRAKE PG. A12 FOR DETAILS]

-------

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER

7555721

$1.49

7

WASHER

7555721

$1.49

8

Nut, Nylon

7547065

$3.99

9

Nut, Jam

5133387

Unavailable

10

Pivot, Threaded, LH

5133388

$40.46

11

Bearing, Tapered Roller Cone

3514399

$23.99

11

Bearing, Tapered Roller Cone

3514399

$23.99

12

Bearing, Tapered Roller Cup

3514398

$9.99

12

Bearing, Tapered Roller Cup

3514398

$9.99

13

Foam

5812447

Unavailable

13

Foam

5812447

Unavailable

14

Asm., Swing Arm [Incl. 12]

1541820

Unavailable

15

O-Ring

5412202

$4.03

15

O-Ring

5412202

$4.03

16

Asm., Prop Shaft, Rear

1380202

Unavailable

17

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

18

Pivot, Swing Arm, RH

5133389

Unavailable

19

Washer, Split Lock

7553201

$3.99

19

Washer, Split Lock

7553201

$3.99

20

Bolt

7517585

$4.79

21

Axle, Rear

5133626

Unavailable

22

Screw

7517612

Unavailable

23

O-Ring

5411531

Unavailable

24

ASM., GEARCASE, REAR [SEE REAR HOUSING PG. C13 FOR DETAILS]

-------

Unavailable

25

Asm., Skid Plate, Rear

1012881

$58.39

25

Plate, Skid, Rear Housing

5242851-067

$19.83

25

Pad, Rubber

5811716

Unavailable

26

Collar, Axle Lock

5132698

Unavailable

27

O-Ring

5411707

Unavailable

28

Decal, Hitch

7170910

Unavailable

29

Clamp, Brake Line, Rear

5245050

$1.75

30

Screw

7512017

$4.79

31

Tube, Axle, LH

1013264-067

Unavailable

32

Bearing Hubstrut

3514342

Unavailable

33

RING, RETAINING

7710507

$2.39

34

BOLT

7512325

$2.39
