Description

Price

1

Rivet [AA][AB][AC]

7661645

$3.99

2

Bolt

7511930

$2.39

3

WASHER

7555792

$4.79

3

WASHER

7555792

$4.79

4

Foil, Rear Cab, Rear

5811107

$6.46

5

Cab, Rear, Camo Green Metallic [AC]

5432117-400

Unavailable

5

Cab, Rear, New Break Up [AB]

5435164-455

$529.99

5

Cab, Rear, Silver Vapor Metallic [AA][FB]

5432117-382

Unavailable

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.79

9

SCREW

7512242

$2.39

10

Washer, Flat

7555859

$1.49

10

Washer, Flat

7555859

$1.49

11

Screw

7512085

Unavailable

12

WASHER

7556034

$2.39

13

Box, Tool

5431786

$53.59

14

RIVET

7621403

$1.49

15

BRACKET, LEVER RETAINER

5211033

$29.25

16

LATCH, SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

Asm., Seat, Black

2683222-070

$424.98

18

Covering, Seat, Black

2682958-070

$141.65

19

Screw

7517375

Unavailable

20

Cover, Tool Box

5431787

Unavailable

21

Screw

7515199

$1.49

22

Box, Battery

1040447-067

$25.59

23

ASM., FRONT GEARCASE [SEE FRONT HOUSING PG. C9 AND C10 FOR DETAILS]

-------

Unavailable

24

Washer, Spring Lock

7552603

$1.49

25

Screw

7512492

$1.49

26

Guard, Rock

5435005

Unavailable

27

WASHER-SKID PLATE

7556065

$4.79

28

SCREW

7517386

$1.49

28

SCREW

7517386

$1.49

29

Washer, Flat

7558301

$1.49

30

Nut, Nylok

7542122

$1.49

31

Grommet

5412156

$4.99

32

Screw

7517987

Unavailable

33

Frame, Main

1014293-067

Unavailable

34

Footwell, LH, Black [AA][AB][AC]

5432221-070

$230.70

34

Footwell, RH, Black [AA][AB][AC]

5433219-070

$230.70

34

Guard, Mudflap, Footrest, LH [FB]

5434404-070

Unavailable

34

Guard, Mudflap, Footrest, RH [FB]

5434405-070

Unavailable

35

SCREW

7512232

$1.49

36

Foil, Rear Fender

5811111

$32.37

37

Foil, Tape

5811322

$1.99

38

Decal, 4 Stroke Carburetor/Filter

7170007

Unavailable

39

Foil

5811087

Unavailable

40

NUT, U-TYPE SPEED

7670057

$1.49

41

Guard, Mud, Rear, LH [AA][AB][AC]

5431796-070

Unavailable

41

Guard, Mud, Rear, RH [AA][AB][AC]

5431797-070

Unavailable

41

Guard, Mudflap, Rear, LH [FB]

5434408-070

$82.99

41

Guard, Mudflap, Rear, RH [FB]

5434409-070

Unavailable

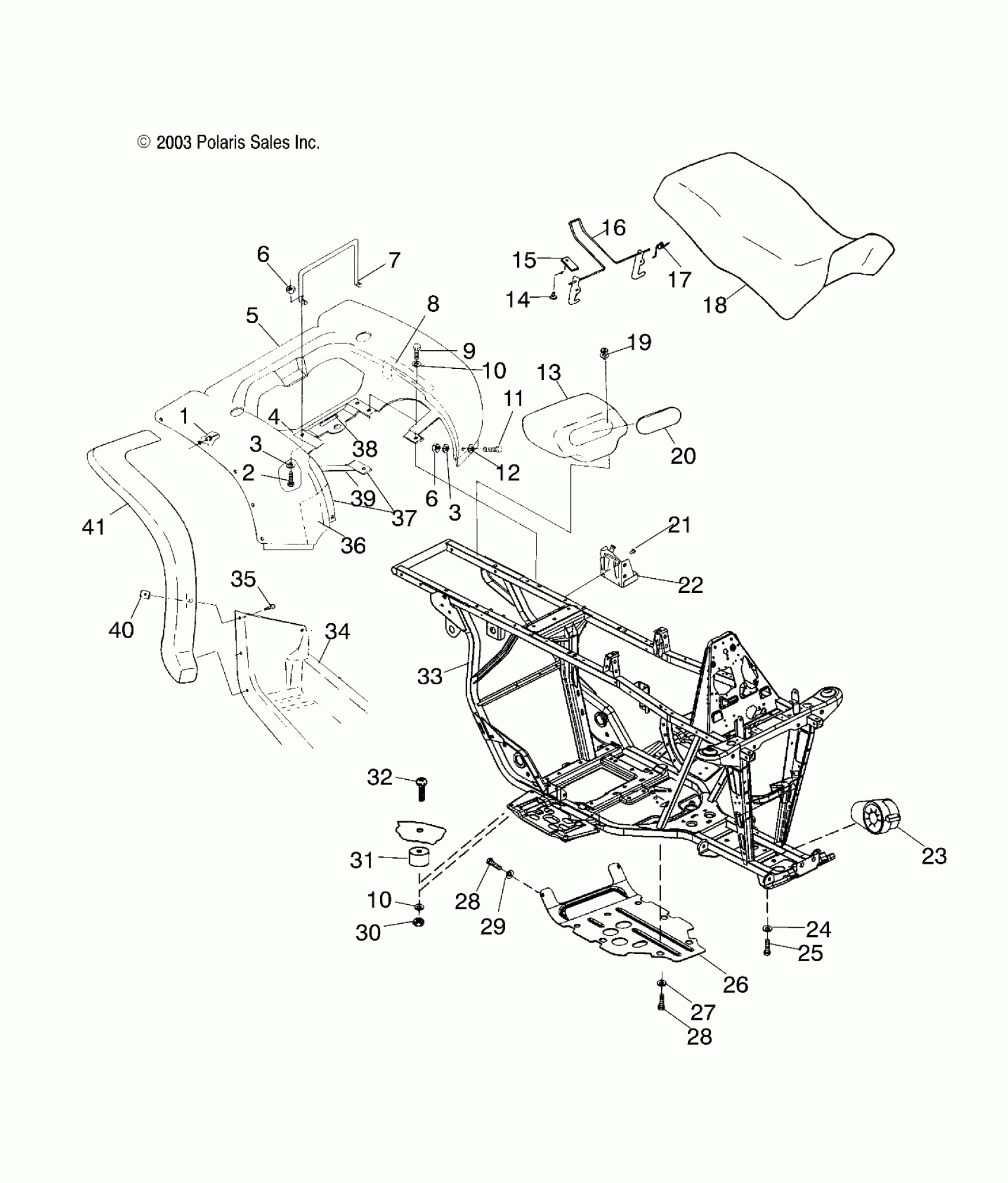

Polaris MAGNUM 330 4X4 - A04CD32AA REAR CAB and SEAT - A04CD32AA/AB/AC/FB (4986268626A03) Diagram

Rivet [AA][AB][AC]

Bolt

WASHER

WASHER

Foil, Rear Cab, Rear

Cab, Rear, Camo Green Metallic [AC]

Cab, Rear, New Break Up [AB]

Cab, Rear, Silver Vapor Metallic [AA][FB]

Nut, Nylok

Nut, Nylok

Retainer, Seat Latch

Foil, Tape, Rear Cab

SCREW

Washer, Flat

Washer, Flat

Screw

WASHER

Box, Tool

RIVET

BRACKET, LEVER RETAINER

LATCH, SEAT

SPRING, LATCH

Asm., Seat, Black

Covering, Seat, Black

Screw

Cover, Tool Box

Screw

Box, Battery

ASM., FRONT GEARCASE [SEE FRONT HOUSING PG. C9 AND C10 FOR DETAILS]

Washer, Spring Lock

Screw

Guard, Rock

WASHER-SKID PLATE

SCREW

SCREW

Washer, Flat

Nut, Nylok

Grommet

Screw

Frame, Main

Footwell, LH, Black [AA][AB][AC]

Footwell, RH, Black [AA][AB][AC]

Guard, Mudflap, Footrest, LH [FB]

Guard, Mudflap, Footrest, RH [FB]

SCREW

Foil, Rear Fender

Foil, Tape

Decal, 4 Stroke Carburetor/Filter

Foil

NUT, U-TYPE SPEED

Guard, Mud, Rear, LH [AA][AB][AC]

Guard, Mud, Rear, RH [AA][AB][AC]

Guard, Mudflap, Rear, LH [FB]

Guard, Mudflap, Rear, RH [FB]
