Description

Price

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

1

Kit, Anvil Body

2201873

$147.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

2

Kit, Slide Bolt

2201870

$63.99

3

Kit -Seal

2201872

$63.99

3

Kit -Seal

2201872

$63.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

4

Kit, Piston and Seal

2201869

$119.99

5

Asm., Brake Caliper

1910425

Unavailable

6

Kit, Brake Pad Assembly

2202414

$31.99

6

Kit, Brake Pad Assembly

2202414

$31.99

7

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

8

Clamp, Rubber Coated

7080573

$7.19

9

Screw

7512084

$1.49

10

Clamp, Brake Line

5434041

Unavailable

11

Asm., Reservoir, Brake, Rear

1930854

$35.99

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

13

Hose, Reservoir

1910675

$1.49

13

Hose, Reservoir

1910675

$1.49

14

Screw

7515158

$4.79

14

Screw

7515158

$4.79

15

Washer, Flat

7558301

$1.49

15

Washer, Flat

7558301

$1.49

15

Washer, Flat

7558301

$1.49

16

Pivot, Mount, Brake, Rear, Black

1012753-067

Unavailable

17

Nut, Nylok

7542122

$1.49

17

Nut, Nylok

7542122

$1.49

18

BOLT

7512240

$3.99

19

SCREW

7517386

$1.49

19

SCREW

7517386

$1.49

19

SCREW

7517386

$1.49

20

Rod, Brake, Black

1014009-067

$55.56

21

SPRING-TORSION,BRAKE

7041750

$8.79

22

WASHER

7555919

$4.99

22

WASHER

7555919

$4.99

23

BUSHING, PEDAL PIVOT

5433189

$3.99

23

BUSHING, PEDAL PIVOT

5433189

$3.99

24

PIN, COTTER

7661401

$1.49

25

Asm., Brake, Master Cylinder, Foot [If built before 1/05/04]

1910311

$166.01

25

Asm., Brake, Master Cylinder, Foot [If built after 1/05/04]

1910791

$171.99

26

Seal

5410988

$4.84

27

BOLT, BANJO

1910499

$5.59

28

Line, Brake, Foot, M/C to Rear

1910516

Unavailable

29

Spring

7042075

$49.99

30

CLIP, RETAINING

7670126

$4.79

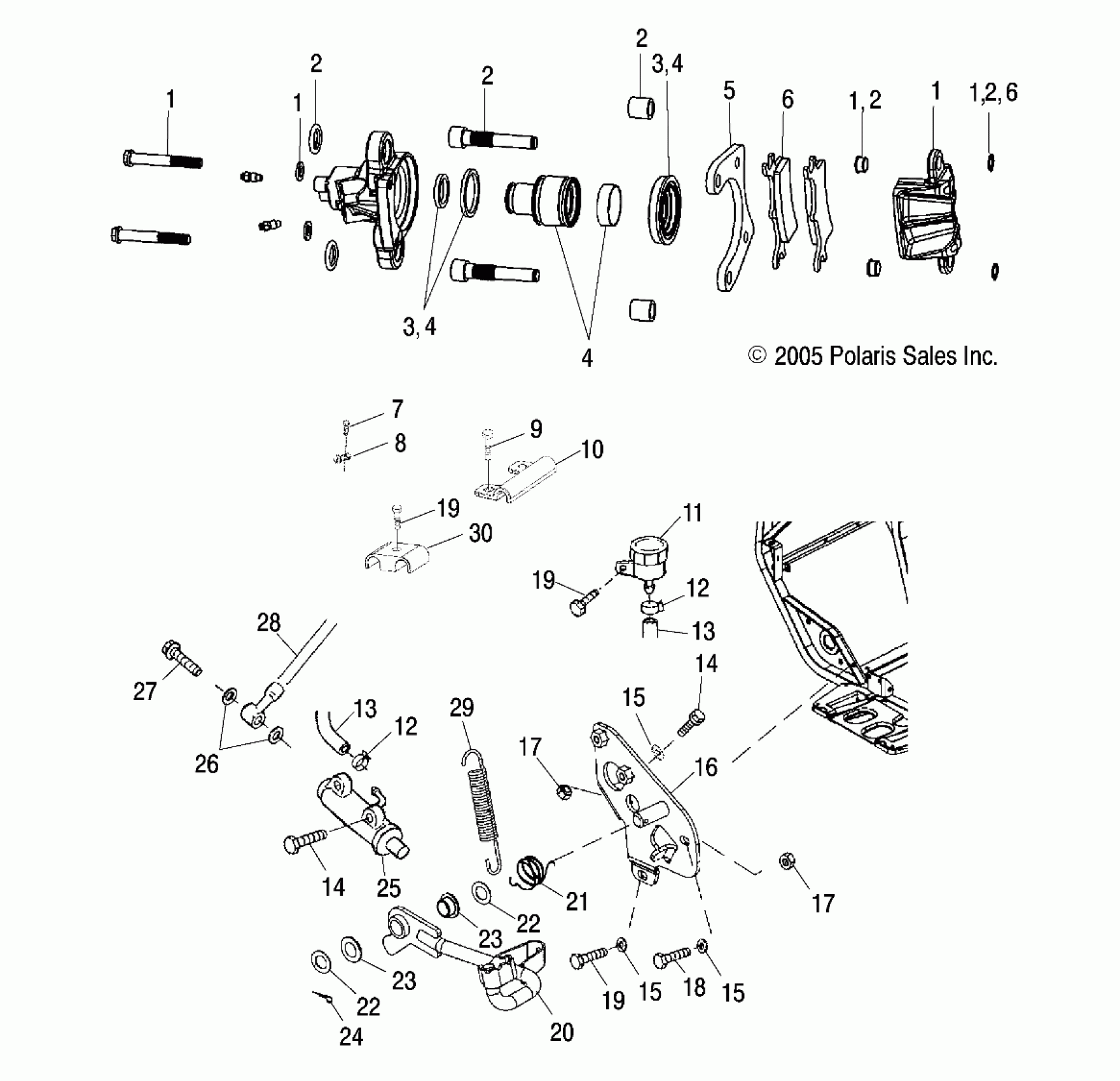

Polaris MAGNUM 330 4X4 - A04CD32AA REAR BRAKE - A04CD32AA/AB/AC/FB (4999201699920169A11) Diagram
