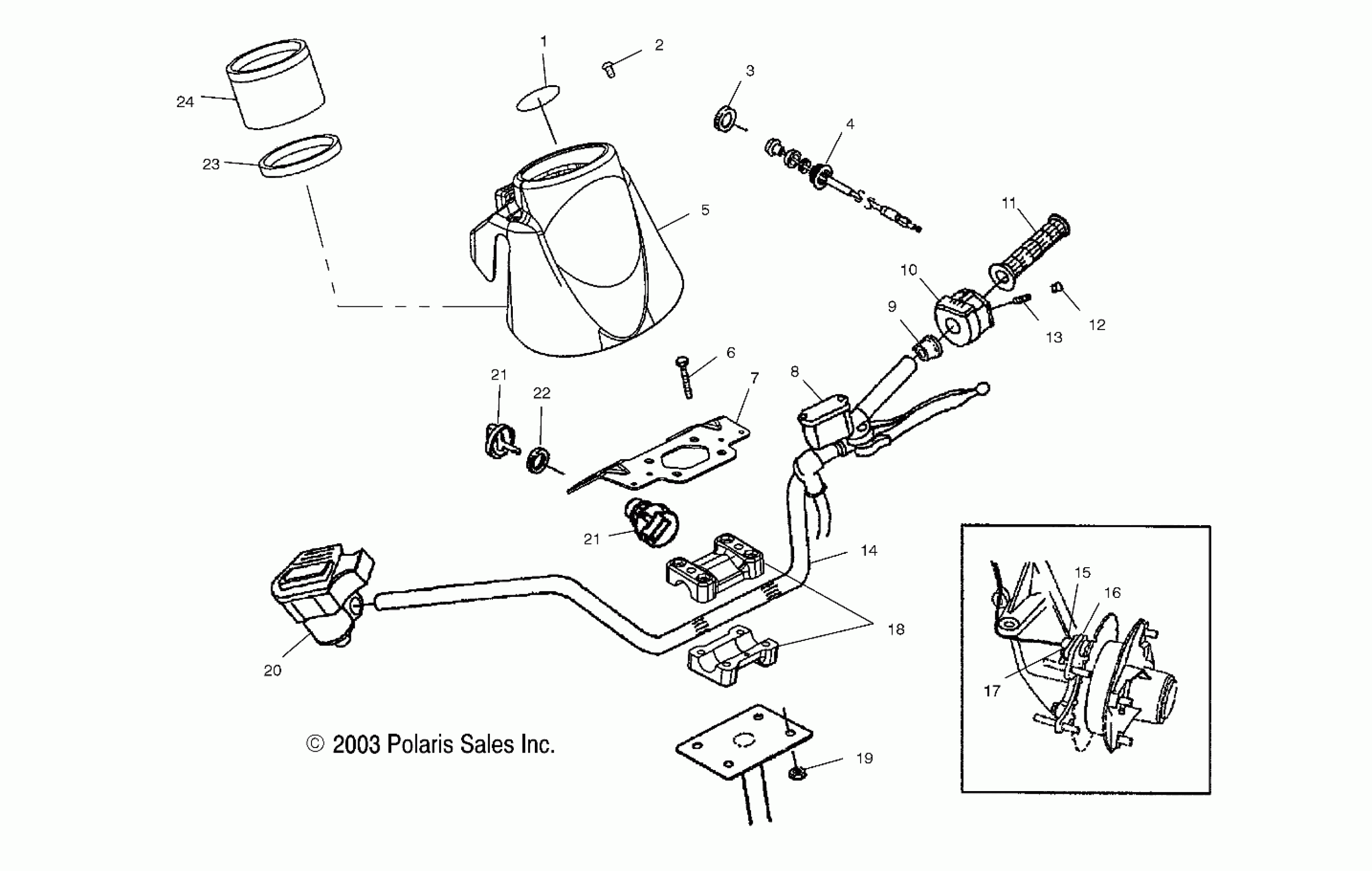

Polaris MAGNUM 330 4X4 - A04CD32AA HANDLEBAR - A04CD32AA/AB/AC/FB (4986268626C01) Diagram

#

Description
Price

1

LOGO-POLARIS STAR [AA][AB][AC]

7078465

$11.32

2

SCREW

7518176

$4.79

3

Nut, Choke

7080922

$3.19

4

Cable, Choke (If built before 8/11/03)

7081008

$79.99

4

Cable, Choke (If built after 8/11/03)

7081176

$77.21

5

Panel, Instrument

5435256-070

Unavailable

6

SCREW

7515189

Unavailable

7

Bracket, Instrument Panel (If built after 12/21/03)

5248182

$4.37

7

Bracket, Instrument Panel (If built before 12/21/03)

5246406-067

$4.37

8

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYL./BRAKE LINE PG. A8 FOR DETAILS]

-------

Unavailable

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, Hi/Lo/Off

4010592

$38.60

11

Grip, Handlebar

5433834-070

$24.27

12

PLUG, HOLE

5432952

$5.59

13

SCREW, SET

7517625

$4.79

14

Tube, Handlebar [AA][AB][AC]

5334127-067

Unavailable

14

Tube, Handlebar [FB]

5246422-067

Unavailable

15

Cap, Hall Sensor [AA]

5132382

$23.99

16

Sensor, Hall Effect [AA]

4010298

$111.99

17

Screw [AA]

7517658

$5.59

18

Block, Handlebar [If built after 9/29/03]

5631973

$27.99

18

Block, Handlebar, Pegged [If built after 9/29/03]

5631972

$27.99

18

Block, Handlebar, Pegged [If built before 9/29/03]

5631146

$10.71

18

Block, Handlebar [If built before 9/29/03]

5631147

Unavailable

19

Nut, Nylok

7542122

$1.49

20

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B13, REF. 5]

-------

Unavailable

21

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

21

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

21

Switch, Ignition

4011002

Unavailable

21

Cover, Key

5431964

Unavailable

21

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

21

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

21

Switch, Ignition

4011002

Unavailable

21

Cover, Key

5431964

Unavailable

22

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

23

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

24

Switch, Mode [FB]

4010818

$22.39

24

Asm., Instrument Cluster, KM [AA][AB][AC]

3280453

Unavailable

24

Asm., Instrument Cluster, KM [FB]

3280449

$354.99
