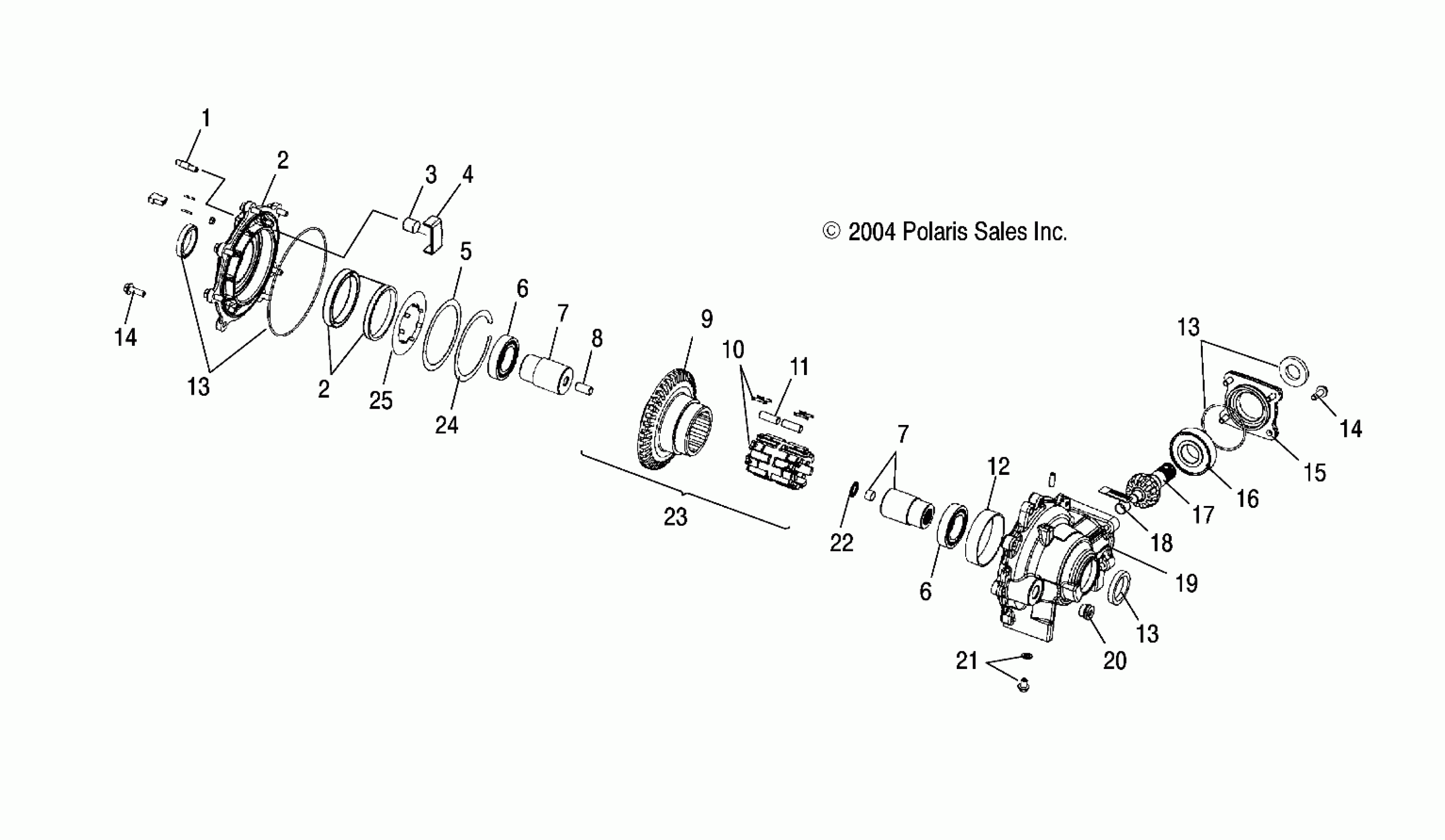

Polaris MAGNUM 330 4X4 - A04CD32AA FRONT HOUSING - A04CD32AA/AB/AC (4994909490C06) Diagram

#

Description
Price

-

Kit, Bolt

3233955

$31.75

-

Asm., Front Gearcase

1341497

$2,099.99

1

Screw, Set

3234163

Unavailable

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

3

Button, Thrust

3234164

Unavailable

4

Plate, Thrust

3234165

$28.32

5

Shim, Armature Plate

3234161

$36.41

6

Bearing, Roller Ball

3233926

$59.52

6

Bearing, Roller Ball

3233926

$59.52

7

Asm., Race/Output Hub [Incl. 22]

3233953

$404.75

7

Asm., Race/Output Hub [Incl. 22]

3233953

$404.75

8

Pin, Dowel

3233928

$23.81

9

Clutch Housing/Ring Gear

3234166

Unavailable

10

Asm., Roll Cage [Incl. Spring and Roll Cage]

3234167

$279.27

10

Spring

----

Unavailable

11

Kit, Roll

3233957

Unavailable

12

BUSHING

----

Unavailable

13

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

13

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

13

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

14

Bolt

3233918

$31.75

14

Bolt

3233918

$31.75

15

Cover, Input

3233947

$72.84

16

Bearing, Roller Ball

3234112

$59.52

17

Shaft, Pinion, 11T

3233944

$839.99

18

BUSHING

----

Unavailable

19

GEARCASE, LH

----

Unavailable

20

Plug, Oil Fill

3233942

$32.37

21

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

22

Bearing, Needle, Roller Thrust

3233929

$404.75

23

Asm., Clutch [Incl. 9-11]

3234168

Unavailable

24

Ring, Retaining, Internal

3234162

$27.78

25

Plate Armature

3234160

$109.27
