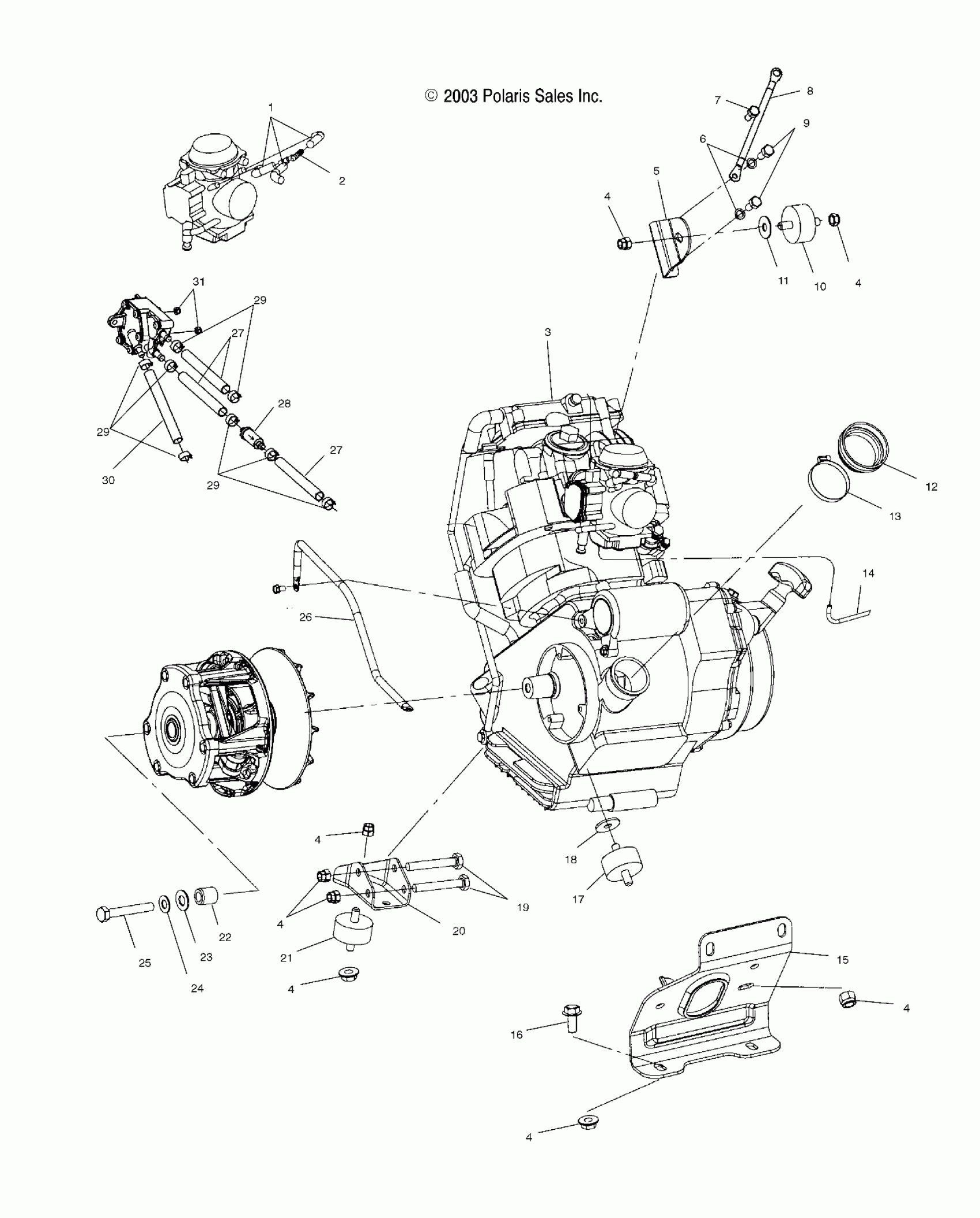

Polaris MAGNUM 330 4X4 - A04CD32AA ENGINE MOUNTING - A04CD32AA/AB/AC/FB (4986268626B01) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.52

3

Engine

1211750

Unavailable

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

4

NUT, FLANGE LOCK

7547108

$4.76

5

Bracket, Motor Mount

5247341

$5.71

6

WASHER, SPRING LOCK

7552901

$1.19

7

SCREW

7512232

$1.19

8

Cable, Ground Engine

4010132

Unavailable

9

BOLT

7512315

$4.76

10

Mount, Rubber

5412248

$49.99

11

WASHER, FLAT

7555823

$3.97

12

Boot, Clutch Intake

5411721

Unavailable

13

Clamp, Narrow Band

7080511

$4.76

14

LINE, FUEL

8360009-600

Unavailable

15

Mount, Engine, Rear

1013133-067

$15.56

16

Screw

7517289

$3.29

17

Mount, Rubber, Rear

3021119

Unavailable

18

Washer

7555815

$3.97

19

SCREW

7515417

$4.76

20

Mount, Lower Front

5247342

Unavailable

21

Mount, Rubber, Engine

3021181

$44.51

22

BUSHING-.437 X.770 X.50

5430261

$7.14

23

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

24

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

25

BOLT

7512566

$33.24

26

Cable, Battery/Engine

4010095

Unavailable

27

Hose, Fuel

8450103

Unavailable

27

Hose, Fuel

8450103

Unavailable

28

FILTER

2530009

$6.46

29

HOSE CLAMP, RED

7080003

$1.19

29

HOSE CLAMP, RED

7080003

$1.19

29

HOSE CLAMP, RED

7080003

$1.19

30

Line, Fuel

8450040-150

Unavailable

31

NUT-M5X.8,HX NYL-Y

7546601

$1.19
