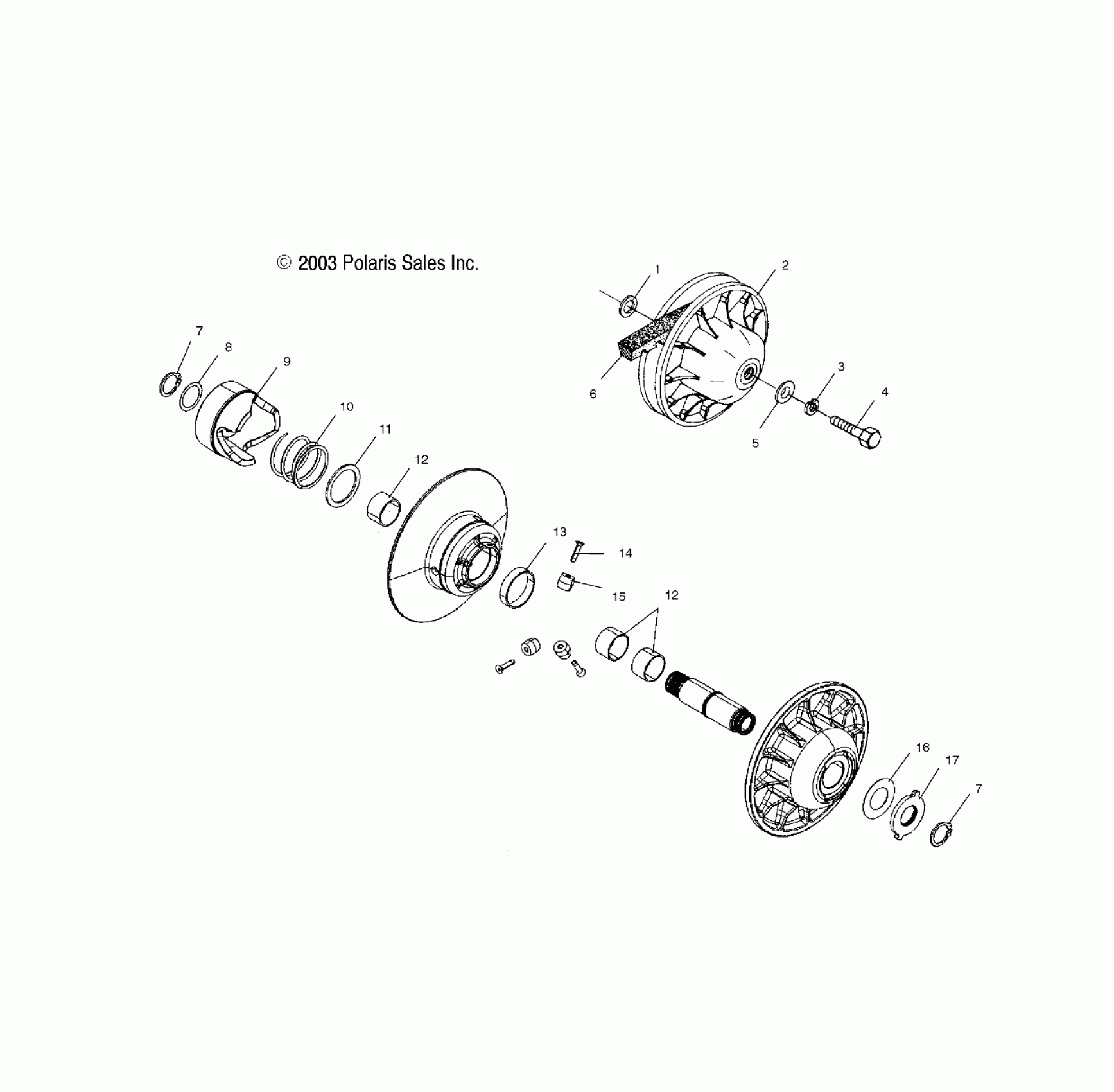

Polaris MAGNUM 330 4X4 - A04CD32AA DRIVEN CLUTCH - A04CD32FB (4986268626C05) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 7,8,11-17]

1322407

Unavailable

3

WASHER, SPRING LOCK

7552901

$1.49

4

BOLT

7515382

$2.39

5

Washer, Domed

5220646

$2.39

6

Belt, Drive

3211069

$67.99

7

Ring, Retaining

7710448

$3.19

7

Ring, Retaining

7710448

$3.19

8

Spacer

5210753

$2.39

9

Ramp, Stationary

5132751

Unavailable

10

Spring, Driven

7041635

$47.99

11

WASHER-2.06X2.62X.105-Y

5211115

$3.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

Bearing

3585710

$19.99

14

Screw

7517323

$13.59

15

Roller, Taper

1321977

$31.99

16

Washer

7556203

Unavailable

17

Plate

5133655

$63.71
