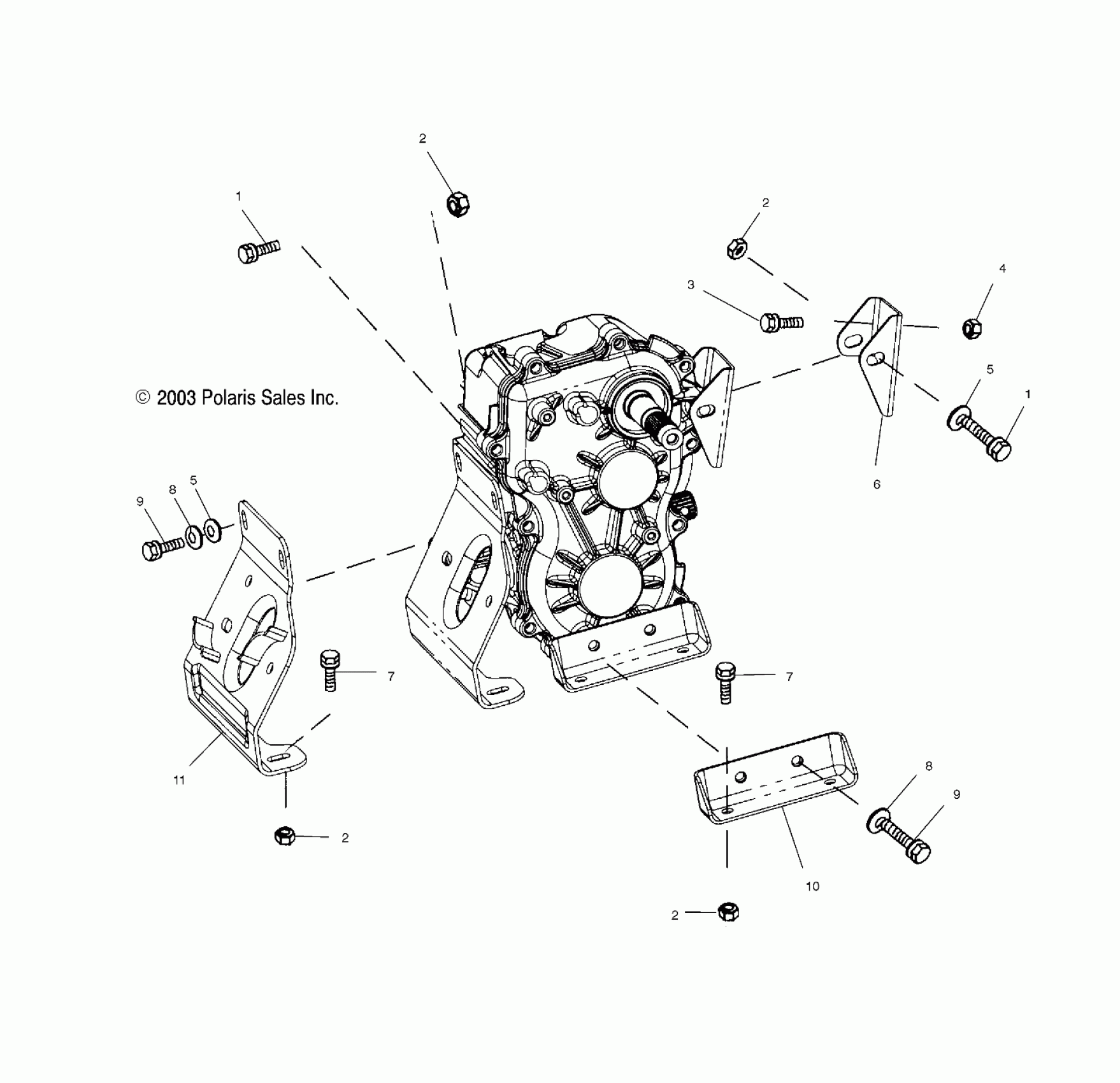

Polaris MAGNUM 330 2X4 - A04CB32AA TRANSMISSION MOUNTING - A04CB32AA/FC (4986188618C09) Diagram

#

Description
Price

-

ASM., MAIN GEARCASE [SEE MAIN GEARCASE PG. C6 FOR DETAILS]

----

Unavailable

1

SCREW

7515417

$4.76

1

SCREW

7515417

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

2

NUT, FLANGE LOCK

7547108

$4.76

3

SCREW

7515398

$2.38

4

Nut, Flange

7542321

$1.19

5

Washer, Flat

7555976

$3.97

5

Washer, Flat

7555976

$3.97

6

Mount, Transmission, Rear

5247343

Unavailable

7

Screw

7517289

$3.29

7

Screw

7517289

$3.29

8

Washer, Spring Lock

7552603

$0.79

8

Washer, Spring Lock

7552603

$0.79

9

Bolt

7515522

$3.97

9

Bolt

7515522

$3.97

10

Mount, Transmission

5242820-067

$7.38

11

MOUNT, ENGINE, REAR [SEE ENGINE MOUNTING PG. A12, REF. 18]

----

Unavailable
