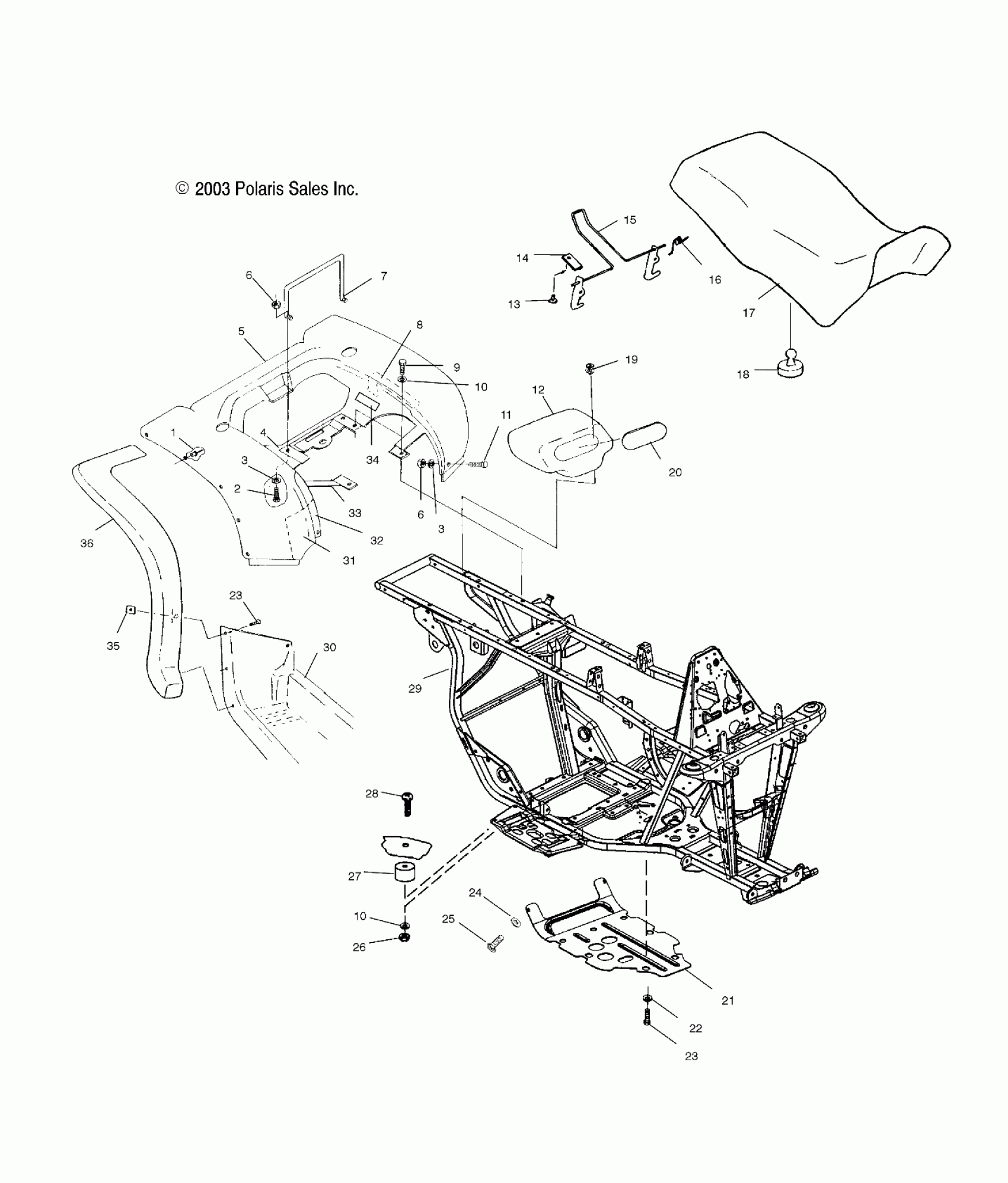

Polaris MAGNUM 330 2X4 - A04CB32AA REAR CAB and SEAT - A04CB32AA/FC (4986188618A03) Diagram

#

Description
Price

1

Rivet

7661645

$3.99

2

Bolt

7511930

$2.39

3

WASHER

7555792

$4.79

3

WASHER

7555792

$4.79

4

Foil, Rear Cab, Rear

5811107

$6.46

5

Cab, Rear, Camo Green Met.

5432117-400

Unavailable

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.79

9

SCREW

7512242

$2.39

10

Washer, Flat

7555859

$1.49

10

Washer, Flat

7555859

$1.49

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.59

13

RIVET

7621403

$1.49

14

BRACKET, LEVER RETAINER

5211033

$29.25

15

LATCH, SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

Asm., Seat

2683222-070

$424.98

17

Cover, Seat

2682958-070

$141.65

18

BUMPER-RUBBER

5412067

$3.99

19

Bolt

7517375

Unavailable

20

Cover, Tool Box

5431787

Unavailable

21

Guard, Rock

5435005

Unavailable

22

WASHER-SKID PLATE

7556065

$4.79

23

SCREW

7512232

$1.49

23

SCREW

7512232

$1.49

24

Washer, Flat

7558301

$1.49

25

SCREW

7517386

$1.49

26

Nut, Nylok

7542122

$1.49

27

Grommet

5412156

$4.99

28

Screw

7517987

Unavailable

29

Frame, Main

1014293-067

Unavailable

30

Footwell, LH, Black

5432221-070

$230.70

30

Footwell, RH, Black

5433219-070

$230.70

30

Guard, Mudflap, Footrest, LH [FC]

5434404-070

Unavailable

30

Guard, Mudflap, Footrest, RH [FC]

5434405-070

Unavailable

31

Foil, Foam, Rear Fender

5811111

$32.37

32

Foil, Rear Cab, Front

5811106

$8.89

33

Foil, Foam

5811087

Unavailable

34

Decal, Carb Information

7170007

Unavailable

35

NUT, U-TYPE SPEED

7670057

$1.49

36

Guard, Mud, Rear, LH [AA]

5431796-070

Unavailable

36

Guard, Mud, Rear, RH [AA]

5431797-070

Unavailable

36

Guard, Mudflap, Rear, LH [FC]

5434408-070

$82.99

36

Guard, Mudflap, Rear, RH [FC]

5434409-070

Unavailable
