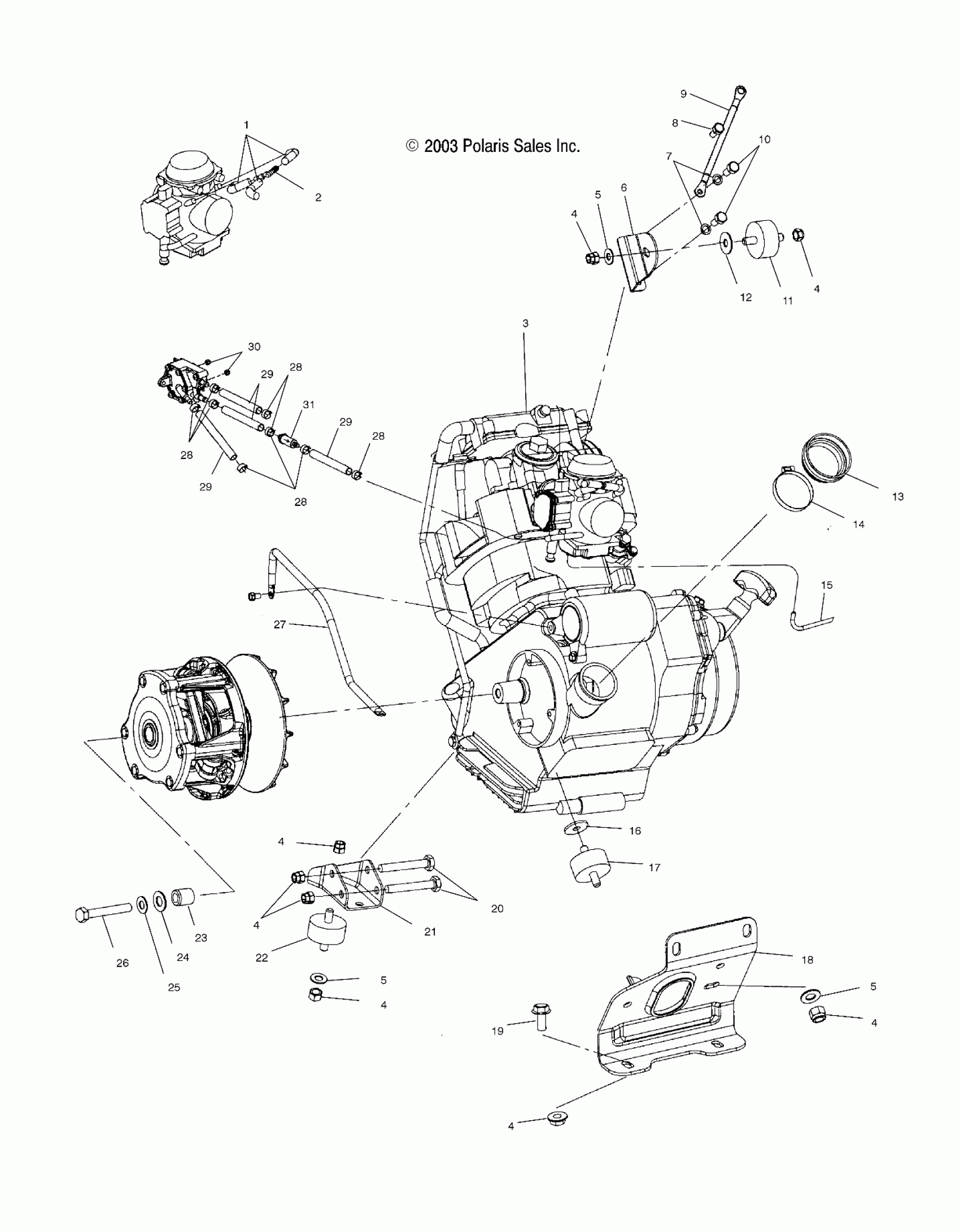

Polaris MAGNUM 330 2X4 - A04CB32AA ENGINE MOUNTING - A04CB32AA/FC (4986188618A11) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

Engine, ES320PFE102

1211791

Unavailable

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

4

NUT, FLANGE LOCK

7547108

$4.79

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

Bracket, Motor Mount

5247341

$5.75

7

WASHER, SPRING LOCK

7552901

$1.49

8

SCREW

7512232

$1.49

9

Cable, Ground Engine

4010132

Unavailable

10

BOLT

7512315

$4.79

11

Mount, Rubber

5412248

Unavailable

12

WASHER, FLAT

7555823

$3.99

13

Boot, Clutch Intake

5411721

Unavailable

14

Clamp, Narrow Band

7080511

$4.79

15

Line, Fuel

8360009-100

Unavailable

16

Washer

7555815

$3.99

17

Mount, Rubber, Rear

3021119

Unavailable

18

Mount, Engine, Rear

1013133-067

$15.67

19

Screw

7517289

$4.79

20

SCREW

7515417

$4.79

21

Mount, Lower Front

5247342

Unavailable

22

Mount, Rubber, Engine

3021181

Unavailable

23

BUSHING-.437 X.770 X.50

5430261

$7.19

24

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

25

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

26

BOLT

7512566

$30.79

27

Cable, Battery/Engine

4010095

Unavailable

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49

29

Hose, Fuel

8450103

Unavailable

29

Hose, Fuel

8450103

Unavailable

29

Hose, Fuel

8450103

Unavailable

30

NUT-M5X.8,HX NYL-Y

7546601

$1.49

31

FILTER

2530009

$5.65
