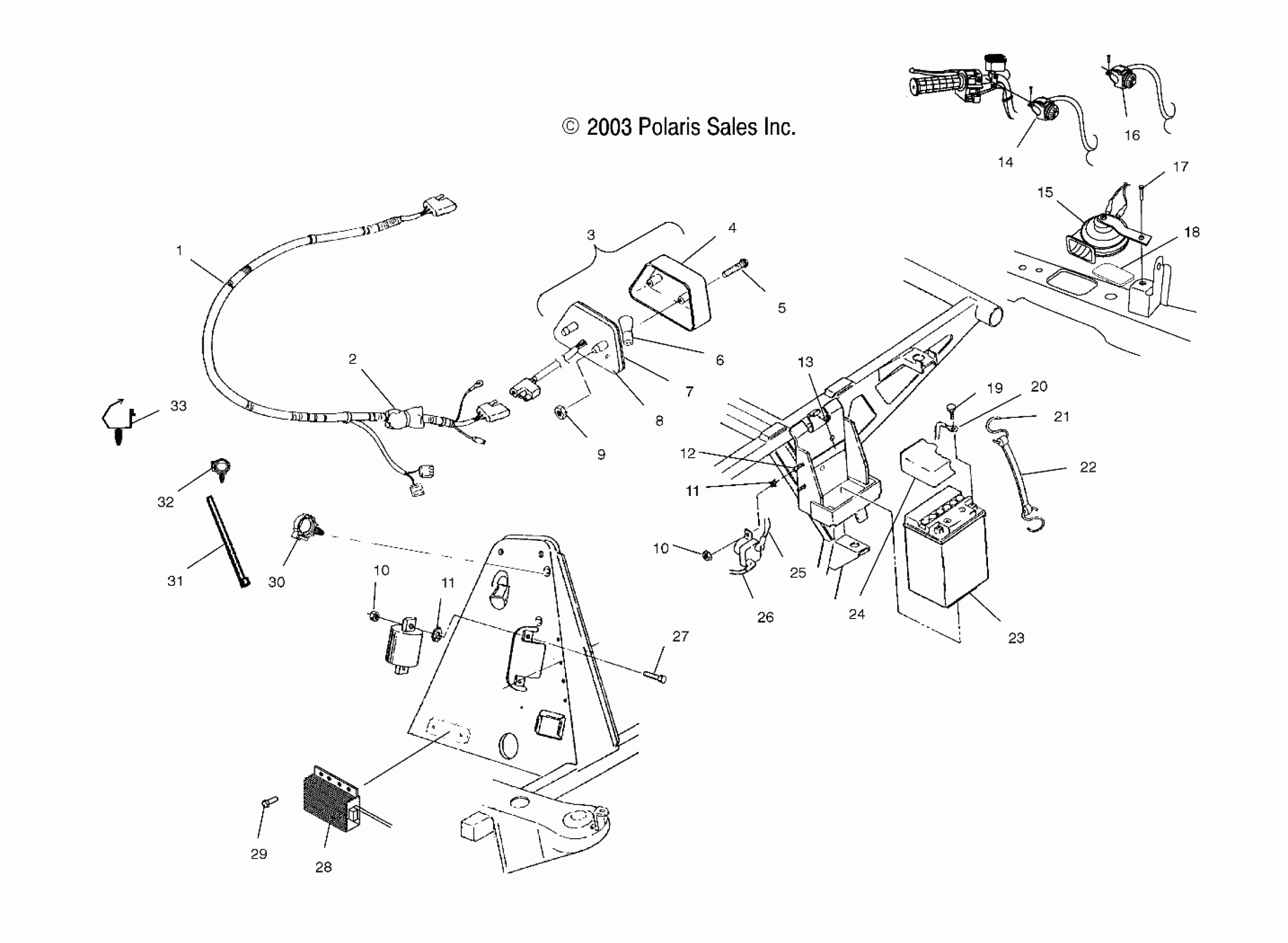

Polaris MAGNUM 330 2X4 - A04CB32AA ELECTRICAL/TAILLIGHT - A04CB32AA/FC (4986188618C02) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$84.99

1

Harness, Main [AA]

2461182

Unavailable

1

Harness, Main [FC]

2461181

Unavailable

2

Breaker, Circuit, 20 AMP

2410323

$68.79

3

Asm., Taillight, 12V [Incl. 4-9]

2410320

$63.49

4

Lens, Taillight

4032046

$32.37

5

Screw, Taillight

4032029

$4.76

6

Bulb, Taillight

4030043

$6.46

7

Gasket, Taillight

4032045

$4.03

8

BACKING, TAILLIGHT/BRAKE LIGHT

----

Unavailable

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

10

Nut, Nylok

7541925

$0.79

10

Nut, Nylok

7541925

$0.79

11

Washer

7571602

$4.76

11

Washer

7571602

$4.76

12

Screw

7512027

$1.19

13

PAD-BATTERY

5810290

$7.27

14

Switch, Horn [FC]

4010311

$60.70

15

Horn [FC]

4010310

Unavailable

16

Switch, Speedo Mode, HDS

4010818

$22.22

17

Screw [FC]

7517386

$1.19

18

Pad [FC]

5810317

Unavailable

19

Kit, Battery Bolt [AA]

2202213

$3.79

19

Kit, Battery Bolt, Short [FC]

2200361

Unavailable

20

Cable, Battery/Engine

4010095

Unavailable

21

Hook, Battery Strap

7010032

$1.59

22

Strap, Battery Holddown

5410424

$4.84

23

Battery [FC]

4140006

$99.99

23

Battery [AA]

4010774

$128.56

24

Cover, Battery

5431769

$15.37

25

Cable, Battery/Solenoid

4010094

Unavailable

26

Cable, Solenoid/Starter

4010093

$48.56

27

BOLT

7512007

$3.97

28

Module, Control

4010944

$412.84

29

SCREW

7512024

$4.76

30

Clip, Rosebud

4020149

$6.35

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

32

CLIP, ROSEBUD

4020139

$4.76

33

CLIP, ROUTING

7670109

$2.38
