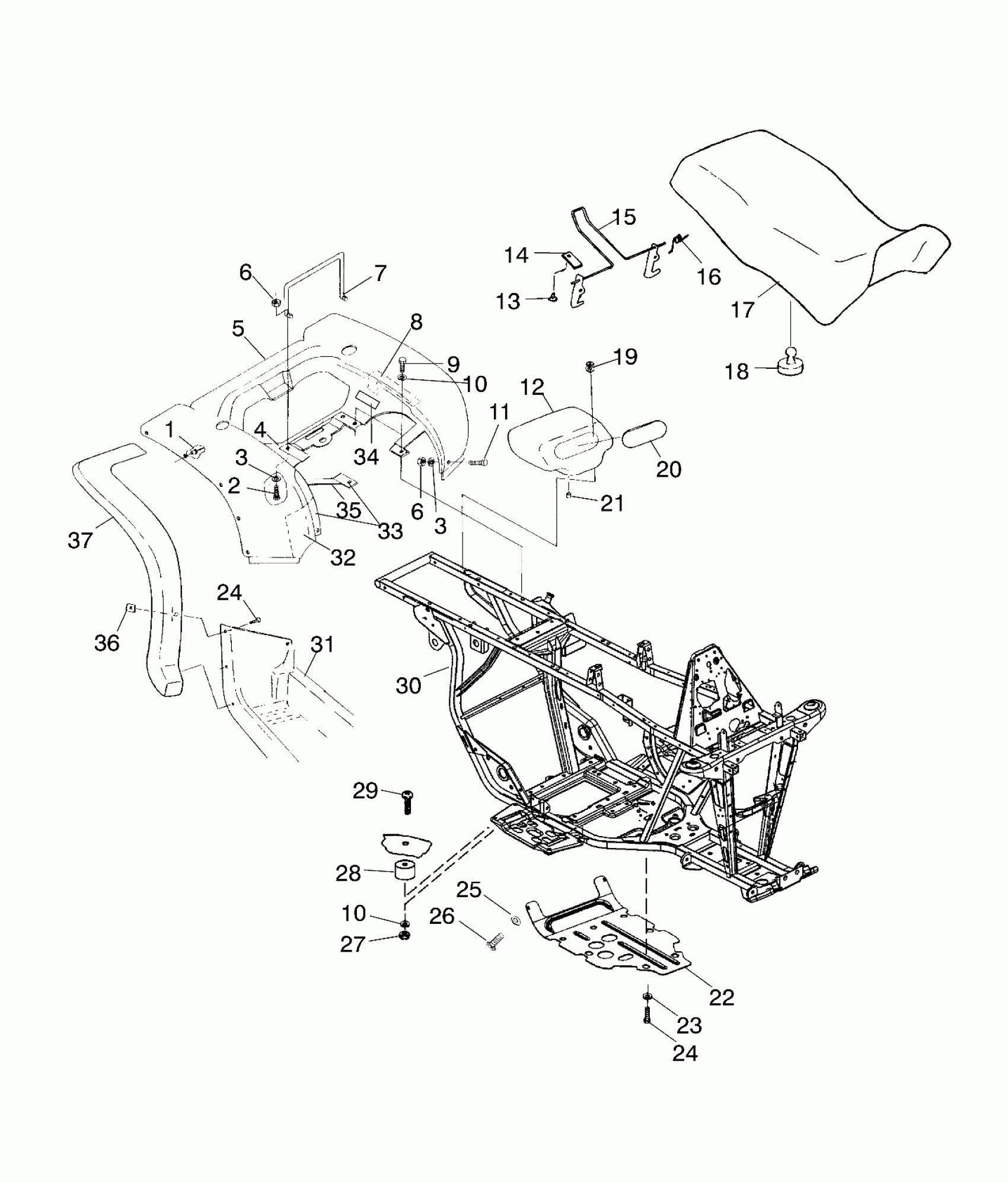

Polaris MAGNUM 330 2X4 - A03CB32AA REAR CAB and SEAT - A03CB32AA/FC (4975157515A03) Diagram

#

Description
Price

1

Rivet

7661645

Unavailable

2

Bolt

7511930

$2.38

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear, Silver

5432117-382

Unavailable

6

Nut, Nylok

7541925

$0.79

6

Nut, Nylok

7541925

$0.79

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

10

Washer, Flat

7555859

$1.19

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.17

13

RIVET

7621403

$1.19

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

LATCH, SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

Cover, Seat

2682958-070

$149.75

17

Asm., Seat

2682441-070

$445.22

18

BUMPER-RUBBER

5412067

$3.97

19

Bolt

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Cap, Drain

5410896

$5.65

22

Guard, Rock

5433435

Unavailable

23

WASHER-SKID PLATE

7556065

$4.76

24

SCREW

7512232

$1.19

24

SCREW

7512232

$1.19

25

Washer, Flat

7558301

$1.19

26

SCREW

7517386

$1.19

27

Nut, Nylok

7542122

$1.19

28

Grommet

5412156

Unavailable

29

Screw

7517987

Unavailable

30

Frame, Main

1013899-067

Unavailable

31

Footwell, LH, Black

5432221-070

$230.70

31

Footwell, RH, Black

5433219-070

$230.70

31

Guard, Mudflap, Footrest, LH [FC]

5434404-070

Unavailable

31

Guard, Mudflap, Footrest, RH [FC]

5434405-070

Unavailable

32

Foil, Foam, Rear Fender

5811111

Unavailable

33

Foil, Rear Cab, Front

5811106

Unavailable

34

Decal, Carb Information

7170007

Unavailable

35

Foil, Foam

5811087

Unavailable

36

NUT, U-TYPE SPEED

7670057

$1.19

37

Guard, Mud, Rear, LH [AA]

5431796-070

Unavailable

37

Guard, Mud, Rear, RH [AA]

5431797-070

Unavailable

37

Guard, Mudflap, Rear, LH [FC]

5434408-070

$82.99

37

Guard, Mudflap, Rear, RH [FC]

5434409-070

Unavailable
