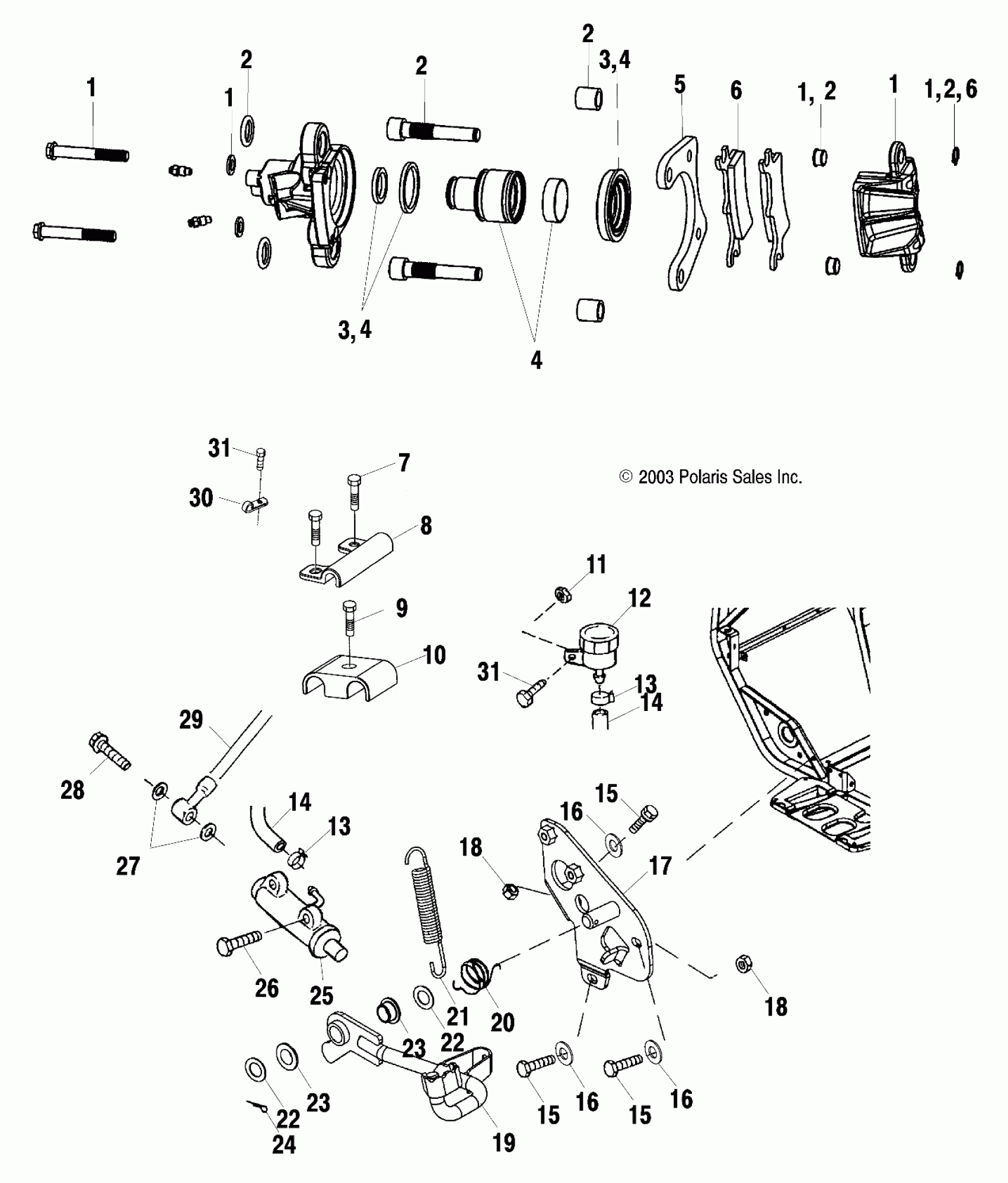

Polaris MAGNUM 330 2X4 - A03CB32AA REAR BRAKE - A03CB32AA/FC (4986188618B03) Diagram

#

Description
Price

1

Kit, Anvil Body

2201873

$146.83

1

Kit, Anvil Body

2201873

$146.83

1

Kit, Anvil Body

2201873

$146.83

1

Kit, Anvil Body

2201873

$146.83

1

Kit, Anvil Body

2201873

$146.83

2

Kit, Slide Bolt

2201870

$64.75

2

Kit, Slide Bolt

2201870

$64.75

2

Kit, Slide Bolt

2201870

$64.75

2

Kit, Slide Bolt

2201870

$64.75

2

Kit, Slide Bolt

2201870

$64.75

3

Kit -Seal

2201872

$71.10

3

Kit -Seal

2201872

$71.10

4

Kit, Piston and Seal

2201869

$121.41

4

Kit, Piston and Seal

2201869

$121.41

4

Kit, Piston and Seal

2201869

$121.41

5

Asm., Brake Caliper

1910425

$288.87

6

Kit, Brake Pad

2202414

$28.49

6

Kit, Brake Pad

2202414

$28.49

7

Screw

7512084

$1.19

8

Clamp, Brake Line

5434041

Unavailable

9

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

10

Clip

7670126

$4.76

11

NUT, FLANGED

7542153

$1.59

12

Reservoir, Brake, Rear

1930854

Unavailable

13

HOSE CLAMP, RED

7080003

$1.19

13

HOSE CLAMP, RED

7080003

$1.19

14

Hose, Reservoir

1910675

$1.19

14

Hose, Reservoir

1910675

$1.19

15

BOLT

7512240

$3.97

15

BOLT

7512240

$3.97

15

BOLT

7512240

$3.97

16

WASHER

7558301

$1.19

16

WASHER

7558301

$1.19

16

WASHER

7558301

$1.19

17

Pivot, Mount, Brake, Rear

1012753-067

Unavailable

18

Nut, Nylok

7542122

$1.19

18

Nut, Nylok

7542122

$1.19

19

Rod, Brake

1014009-067

$55.56

20

SPRING-TORSION,BRAKE

7041750

$8.89

21

Spring

7042075

$54.99

22

WASHER

7555919

$4.99

22

WASHER

7555919

$4.99

23

BUSHING, PEDAL PIVOT

5433189

$3.97

23

BUSHING, PEDAL PIVOT

5433189

$3.97

24

PIN, COTTER

7661401

$0.79

25

Master Cylinder, Foot

1910311

$174.03

26

Screw

7515158

$4.76

27

Seal

5410988

$4.84

28

BOLT, BANJO

1910499

$5.56

29

Line, Foot Brake, Rear, Master Cylinder

1910516

Unavailable

30

Clamp, Hose

7080880

$5.56

31

SCREW

7517386

$1.19

31

SCREW

7517386

$1.19
