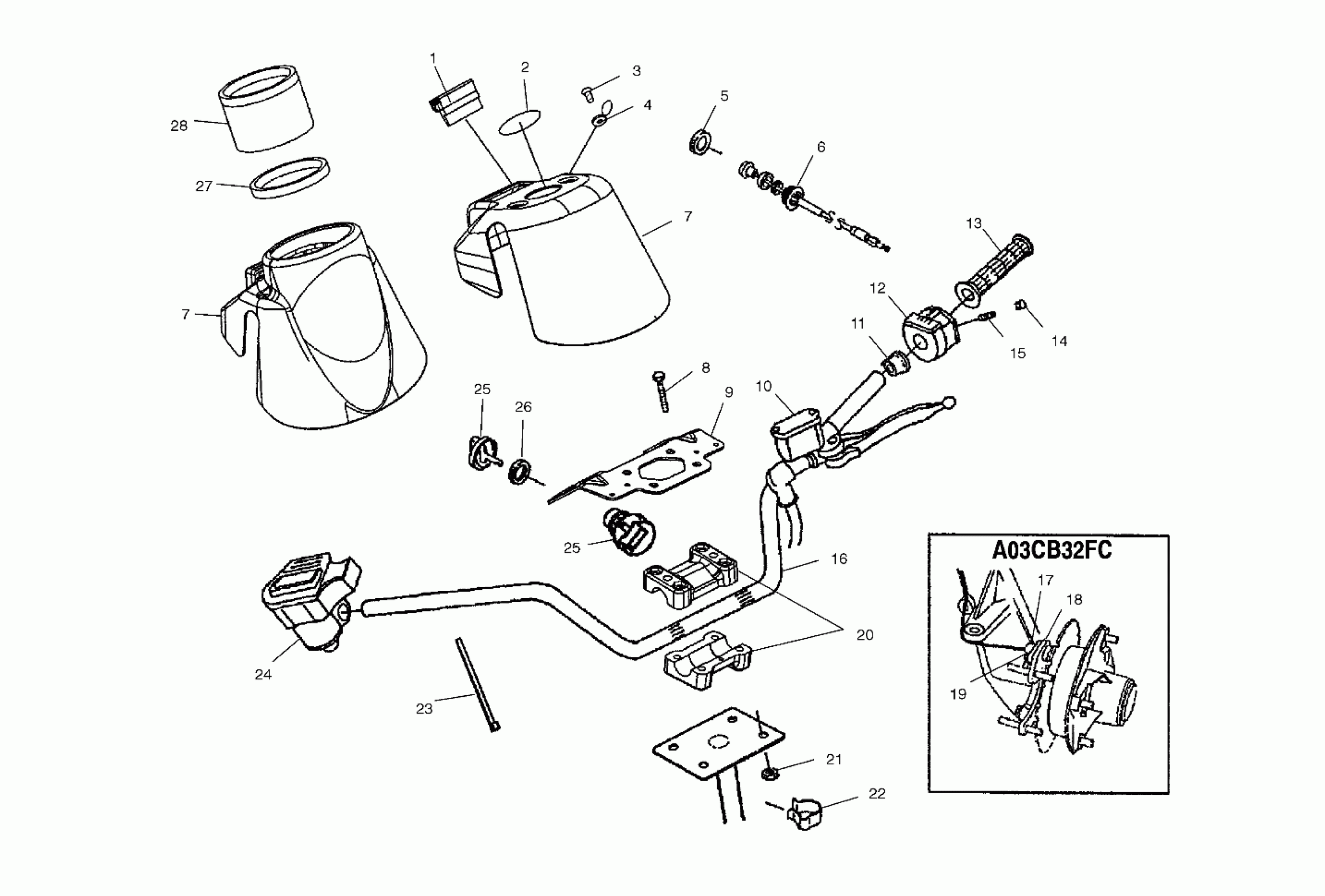

Polaris MAGNUM 330 2X4 - A03CB32AA HANDLEBAR - A03CB32AA/FC (4975157515C01) Diagram

#

Description
Price

1

Switch, Mode [FC]

4010818

$22.39

1

Panel, Indicator [AA]

4010671

Unavailable

2

LOGO-POLARIS STAR [AA]

7078465

$11.32

3

SCREW

7512024

$4.79

4

Cover, Screw

5432420

Unavailable

5

Nut, Choke

7080922

$3.19

6

Cable, Choke

7081008

$79.99

7

Panel, Instrument [AA]

5434643-070

Unavailable

7

Panel, Instrument [FC]

5434642-070

Unavailable

7

Panel, Instrument [AA]

5434643-070

Unavailable

7

Panel, Instrument [FC]

5434642-070

Unavailable

8

SCREW

7515189

Unavailable

9

Bracket, Instrument Panel

5246406-067

$4.37

10

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYL./BRAKE LINE PG. B2 FOR DETAILS]

-------

Unavailable

11

Spacer, Switch, LH

5433903

Unavailable

12

Switch, Handlebar, Hi/Lo/Rev. Override

4010422

$123.54

13

Grip, Handlebar

5433834-070

$24.27

14

PLUG, HOLE

5432952

$5.59

15

Screw

7517625

$4.79

16

Tube, Handlebar

5334127-067

Unavailable

17

Cap, Hall Sensor [FC]

5132382

$23.99

18

Sensor, Hall Effect [FC]

4010298

$111.99

19

Screw [FC]

7517658

$5.59

20

Block, Handlebar, Pegged

5631146

$10.71

20

Block, Handlebar

5631147

Unavailable

21

Nut, Nylok

7542122

$1.49

22

Clip, Cable Retaining

7080631

$6.29

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition

4010390

Unavailable

25

Cover, Key

5431964

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Ignition

4010390

Unavailable

25

Cover, Key

5431964

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

27

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

28

Speedometer [FC]

3280390

Unavailable
