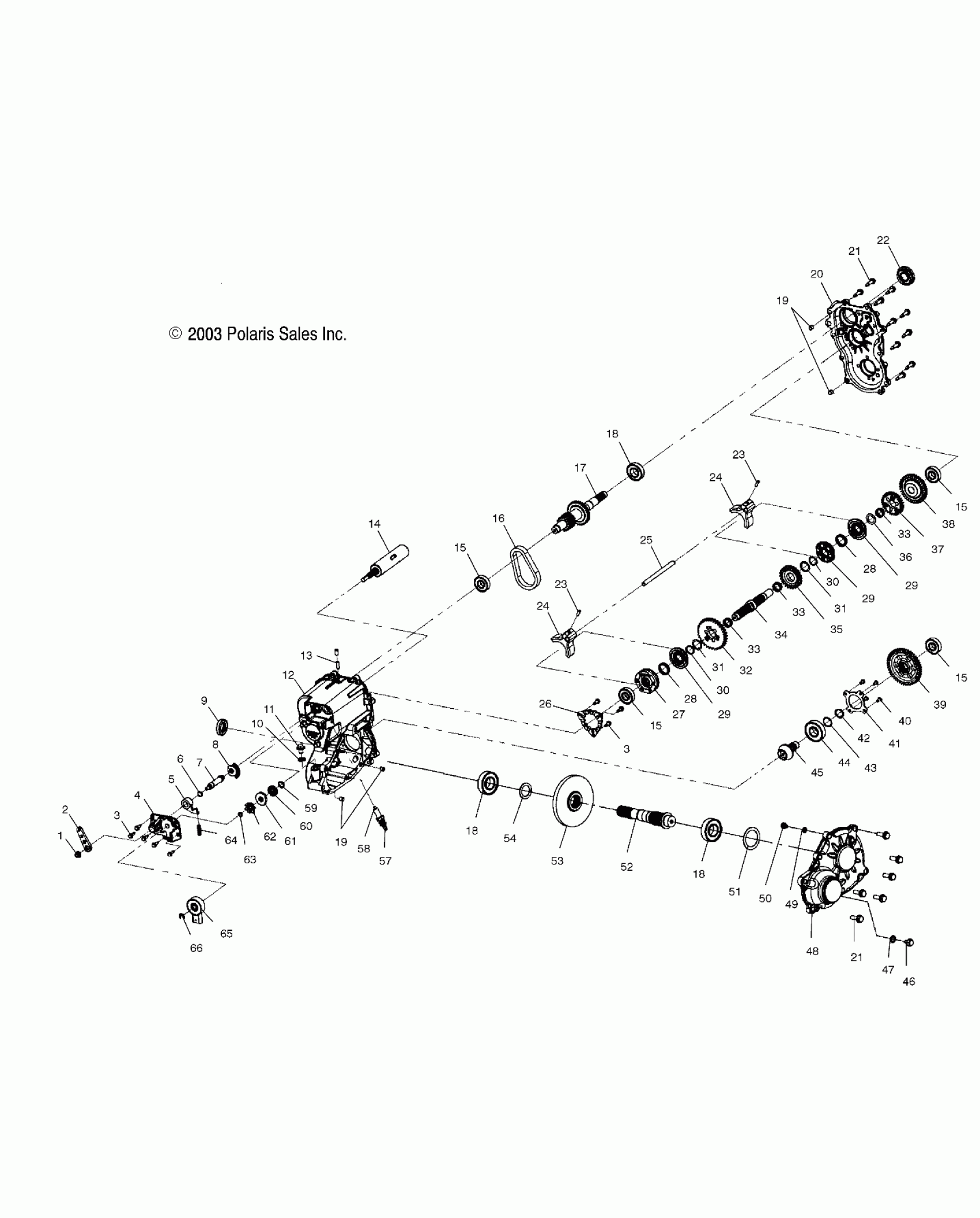

Polaris MAGNUM 330 2X4 - A03CB32AA GEARCASE - A03CB32AA/FC (4986188618C05) Diagram

#

Description
Price

-

Asm., Gearcase

1341370

Unavailable

1

NUT, LOCK

3233961

$2.79

2

Bellcrank

3233906

Unavailable

3

SCREW

3233826

$9.59

3

SCREW

3233826

$9.59

4

Cover

3233827

$107.99

5

Pawl, Detent

3233829

$31.99

6

O-RING

3233869

$5.59

7

SHAFT, SHIFT

3233831

$59.99

8

GEAR-SECTOR,31T

3233832

$31.99

9

Seal, Triple Lip

3233788

$31.99

10

Washer

3233324

$8.99

11

Plug, Oil Fill

3233711

Unavailable

12

Gearcase, Main

3233867

$569.99

13

TUBE, VENT

3233524

$7.19

14

Drum, Shift

3233910

Unavailable

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

15

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

16

Chain, Silent

3233036

Unavailable

17

Shaft, Input

3234028

Unavailable

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

18

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

19

Pipe, Knock

3233529

$7.99

19

Pipe, Knock

3233529

$7.99

20

Cover, LH

3233865

Unavailable

21

Screw, Tapping

3233846

Unavailable

21

Screw, Tapping

3233846

Unavailable

22

Seal, Dual Lip

3233874

$31.99

23

Pin, Dowel

3233859

Unavailable

23

Pin, Dowel

3233859

Unavailable

24

Fork, Shift

3233858

Unavailable

24

Fork, Shift

3233858

Unavailable

25

RAIL, SHIFT SHAFT

3233860

$52.79

26

Plate

3233915

$39.99

27

Dog, Engagement

3234040

$167.19

28

Spring, Wave

3233849

Unavailable

28

Spring, Wave

3233849

Unavailable

29

Dog, Engagement

3233875

$155.99

29

Dog, Engagement

3233875

$155.99

29

Dog, Engagement

3233875

$155.99

30

RING, RETAINING

3233850

$10.39

30

RING, RETAINING

3233850

$10.39

31

WASHER

3233851

$10.39

31

WASHER

3233851

$10.39

32

Gear, 33T

3234027

$133.99

33

BEARING, NEEDLE

3233718

$35.99

33

BEARING, NEEDLE

3233718

$35.99

33

BEARING, NEEDLE

3233718

$35.99

34

Shaft, Reverse

3233853

$267.13

35

Sprocket, 24T

3233854

$149.59

36

WASHER

3233855

$10.39

37

Gear, 30T

3233856

$251.99

38

Gear, 36T

3234014

$169.99

39

Gear, 48T

3233709

$178.57

40

Screw

3233608

$5.99

41

Cover, Bearing Center Drive

3233609

$19.99

42

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

43

SPACER

3233357

$21.99

44

Bearing, Ball

3233607

$36.41

45

Subasm., Ground Spiral Bevel [Incl. 53]

3234912

$595.54

46

Plug

3233777

$34.99

47

Washer

3233254

$7.99

48

Cover, Output, Front

3233713

$72.79

49

SHIM

3233583

$26.39

50

THRUST BUTTON

3233582

$7.91

51

SHIM

3233611

$26.39

52

Shaft, Output, Rear

3233622

Unavailable

53

Subasm., Ground Spiral Bevel [Incl. 45]

3234912

$595.54

54

WASHER,THRUST

3233619

$21.99

57

Clamp, Tie

3234013

Unavailable

58

Lockout, Park

3233917

Unavailable

59

O-Ring

3233548

$27.99

60

GEAR, 16T

3233839

$31.99

61

DISC, LOCKOUT

3233838

$26.39

62

Star, Detent

3234082

$35.19

63

O-RING

3233076

$6.39

64

SPRING, COMPRESSION

3233830

$10.39

65

SWITCH

3233835

Unavailable

66

RING, RETAINING

3233834

$10.39
