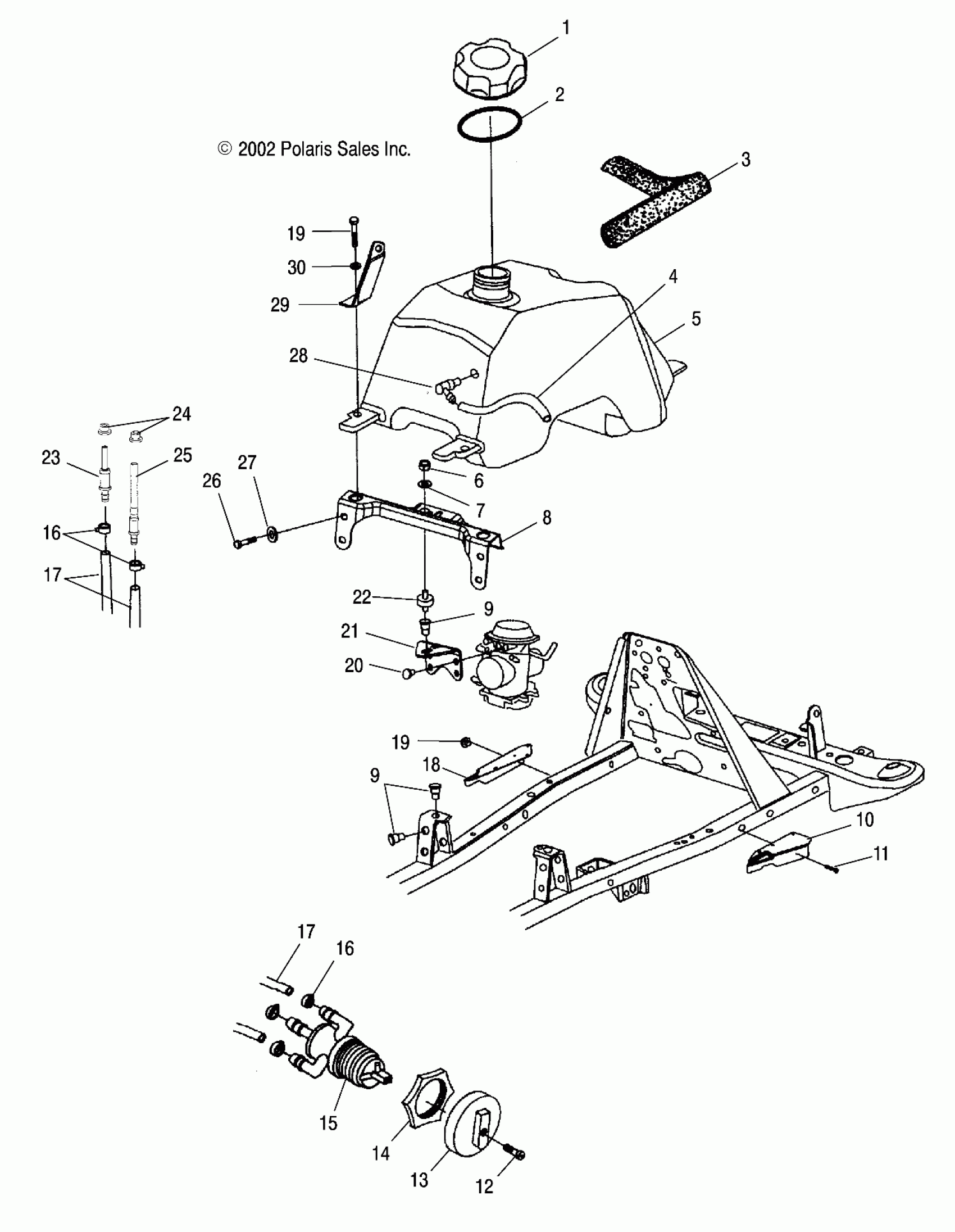

Polaris MAGNUM 330 2X4 - A03CB32AA FUEL TANK and CARBURETOR MOUNTING - A03CB32AA/FC (4975157515A13) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Seal, Foam

5811899

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Asm., Fuel Tank [Incl. 16,17,27]

2520183

Unavailable

6

Nut, Hex

7542105

$3.97

7

WASHER, SPRING LOCK

7552801

$1.59

8

Bracket, Carburetor Support

5245671-067

Unavailable

9

Nutsert

7547069

$3.97

9

Nutsert

7547069

$3.97

10

Shield, Splash, RH

5245533-067

$15.56

11

SCREW

7517386

$1.19

12

Screw

7517505

$1.59

13

Knob, Fuel Valve

5432559

$11.32

14

Nut, Fuel Valve

5432733

Unavailable

15

Valve, 3-Way

7052161

$44.51

16

HOSE CLAMP, RED

7080003

$1.19

16

HOSE CLAMP, RED

7080003

$1.19

17

Line, Fuel

8450040-600

Unavailable

17

Line, Fuel

8450040-600

Unavailable

18

Shield, Splash, LH

5245394-067

$15.56

19

Screw

7512277

$4.76

19

Screw

7512277

$4.76

20

Screw and Washer

3084205

$3.97

21

Bracket, Carburetor

5245674-067

Unavailable

22

MOUNT, CARBURETOR

3110050

$12.99

23

Fitting, Fuel Outlet, Reserve

7052346

Unavailable

24

Grommet

7052362

$9.99

25

Fitting, Fuel Outlet, Main

7052350

Unavailable

26

Screw

7512276

$4.76

27

Washer, Flat

7555859

$1.19

28

Vent, Tank

5431053

$24.27

29

Bracket, Fuel Cover Mount, Rear, LH

5222154

Unavailable

29

Bracket, Fuel Cover Mount, Rear, RH

5222155

Unavailable

30

WASHER

7558301

$1.19
