- MAGNUM 330 2X4 - A03CB32AA
CRANKSHAFT and PISTON - A03CB32AA/FC (4999201699920169D02)

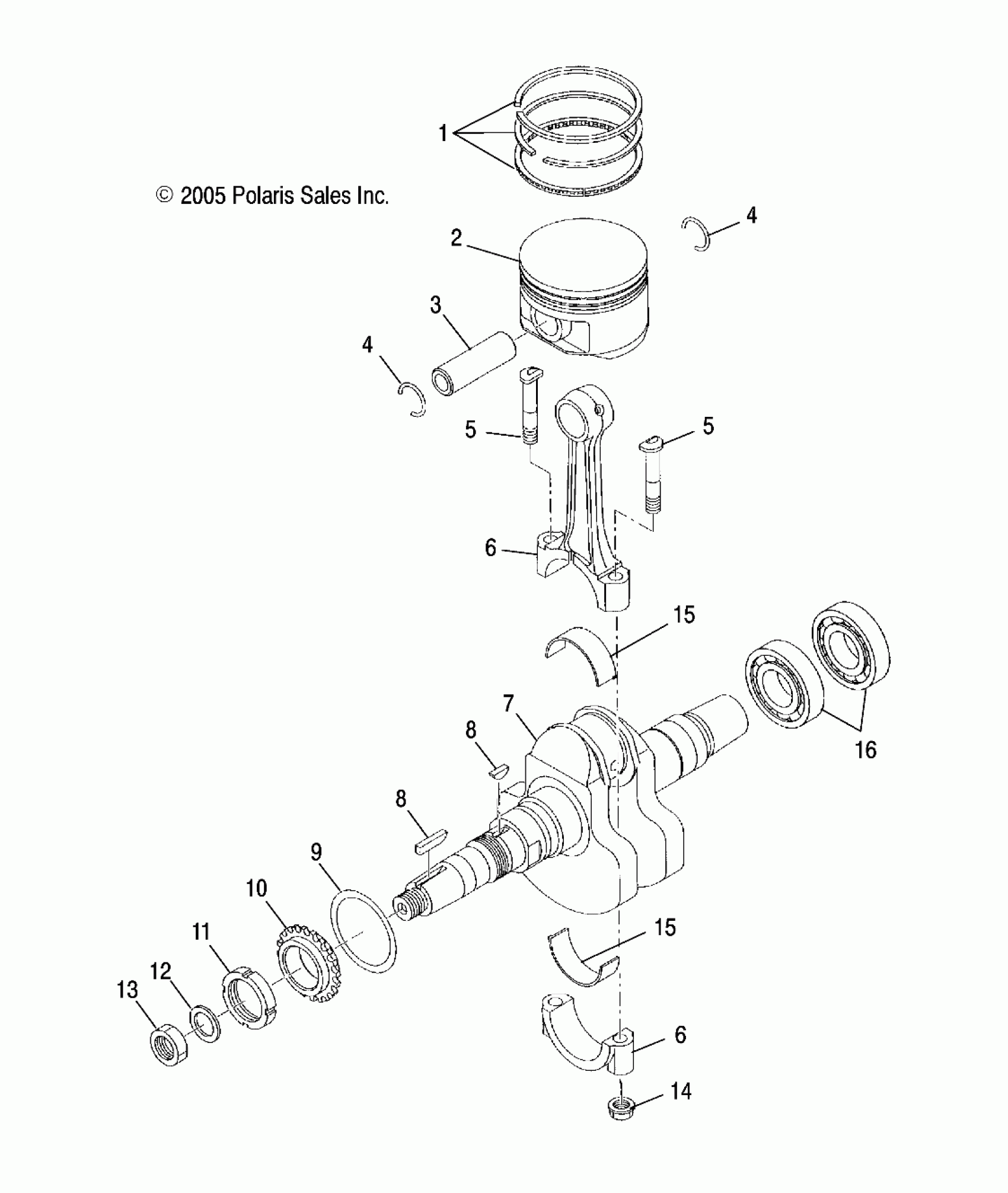

Polaris MAGNUM 330 2X4 - A03CB32AA CRANKSHAFT and PISTON - A03CB32AA/FC (4999201699920169D02) Diagram
#
Description
Price
1
Set, Piston, Ring, Standard
3087244
$63.99
1
Set, Piston, Ring, .010 Inch/.25MM O/S
3087245
$67.99
1
Set, Piston, Ring, .020 Inch/.50MM O/S
3087246
$63.99
2
Set, Piston, .020 Inch/.50MM O/S [Incl. 4]
3087243
Unavailable
2
Set, Piston, .010 Inch/.25MM O/S [Incl. 4]
3087242
Unavailable
2
Set, Piston, Standard [Incl. 4]
3087241
Unavailable
3
Pin, Piston
3086846
Unavailable
4
Clip, Piston Pin
3084167
$6.39
4
Clip, Piston Pin
3084167
$6.39
5
Bolt, Connecting Rod
3087240
Unavailable
5
Bolt, Connecting Rod
3087240
Unavailable
6
Asm., Connecting Rod [Incl. 5,14]
3087239
$187.99
6
Asm., Connecting Rod [Incl. 5,14]
3087239
$187.99
7
Crankshaft, Complete [Incl. 16]
3087119
Unavailable
8
KEY, WOODRUFF
3240168
$19.99
8
KEY, WOODRUFF
3240168
$19.99
9
Spacer, .4
3086434
Unavailable
9
Spacer, 1.0
3086437
Unavailable
9
Spacer, .8
3086436
$8.79
9
Spacer, .6
3086435
Unavailable
10
Sprocket 1
3086492
$27.99
11
NUT, SLIT
3085528
$35.99
12
WASHER
3086767
Unavailable
13
NUT, LOCK
3083905
Unavailable
14
Nut
3086426
$4.79
15
Bearing, Standard
3086427
Unavailable
15
Bearing, 0.05 O/S
3086798
Unavailable
15
Bearing, 0.25 O/S
3086799
$15.99
15
Bearing, Standard
3086427
Unavailable
15
Bearing, 0.05 O/S
3086798
Unavailable
15
Bearing, 0.25 O/S
3086799
$15.99
16
BEARING, BALL
3085815
$43.99
