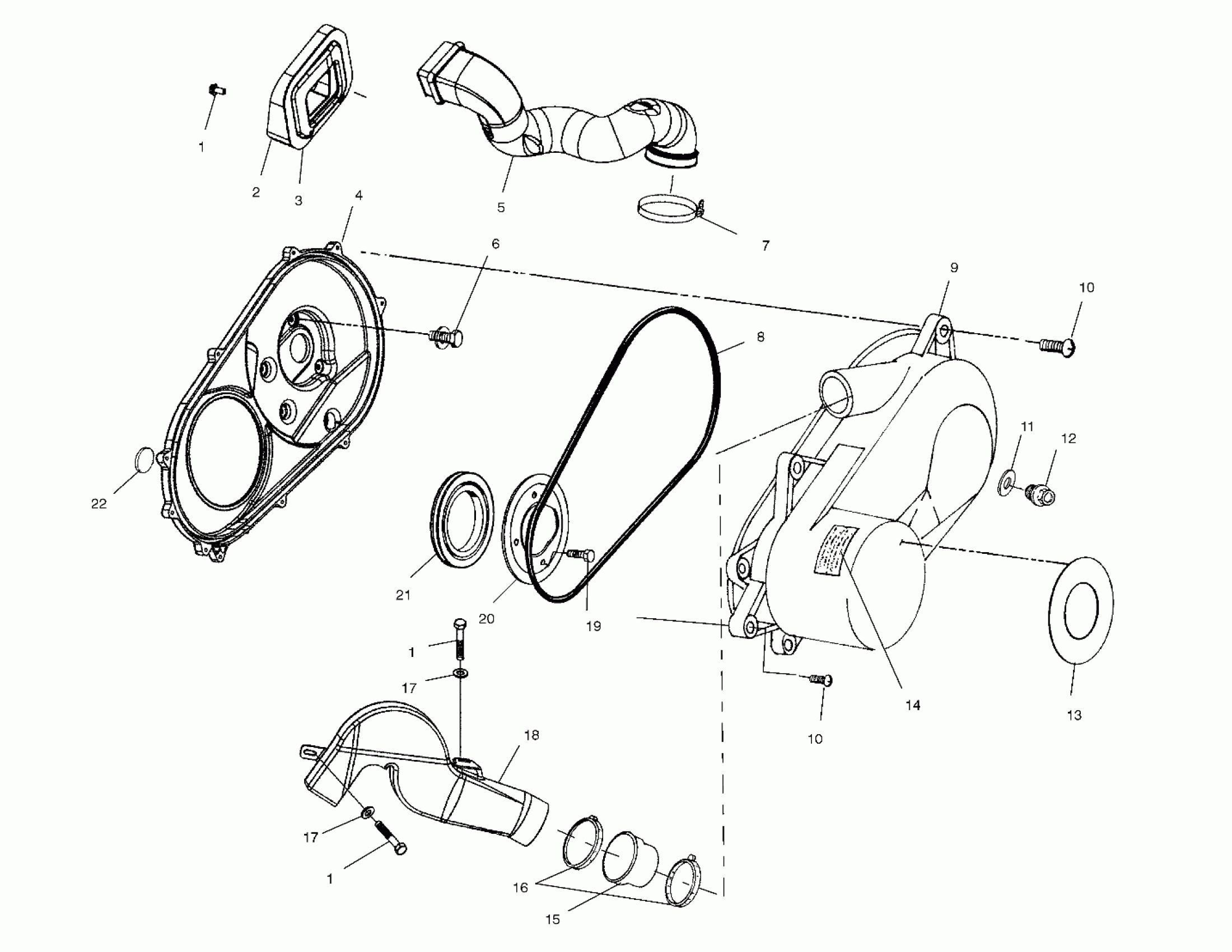

Polaris MAGNUM 330 2X4 - A03CB32AA CLUTCH COVER - A03CB32AA/FC (4975217521C05) Diagram

#

Description
Price

1

SCREW

7517386

$1.49

1

SCREW

7517386

$1.49

1

SCREW

7517386

$1.49

2

Foam, Clutch Air Inlet [AA]

2632513

$54.99

2

Foam, Clutch Air Inlet [FC]

2632116

$54.99

3

Plate, Backing [AA]

5434491

Unavailable

3

Plate, Backing [FC]

5433453

Unavailable

4

Kit, Inner Clutch Cover

2201956

Unavailable

5

Duct, Inlet

5433363

Unavailable

6

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

7

CLAMP, NARROW BAND

7080909

$7.99

8

Seal, Clutch Cover

5521578

Unavailable

9

Asm., Clutch Cover, Outer

2633262

$169.87

10

SCREW

7512094

$1.59

10

SCREW

7512094

$1.59

11

O RING-.364X.504X.07

5410542

Unavailable

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

13

Decal, "Automatic Transmission"

7074782

Unavailable

14

Decal, Warning, Clutch Cover

7078689

Unavailable

15

Boot, Duct

5411489

Unavailable

16

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

17

Washer, Flat

7558301

$1.49

17

Washer, Flat

7558301

$1.49

18

Duct, Air Outlet

5434213

Unavailable

19

SCREW AND WASHER [SEE CRANKCASE PG., REF. 8]

-------

Unavailable

20

Bracket, Clutch Seal

5242046

$35.99

21

Seal, Cover Case

5410575

Unavailable

22

Stopper, Inner Clutch Cover

5411795

Unavailable
