Description

Price

1

Screw

7515180

Unavailable

2

Washer, Flat

7558301

$1.49

3

Seal, Intake

5812023

$6.63

4

Duct, Inlet

5433920

Unavailable

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

Pad, Fuel Tank Bracket

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Air Box Cover

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carb Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

CAP, RUBBER

5412101

$5.59

13

Hose, Breather

5411866

$11.59

14

Clamp, Hose, Spring

7080694

$6.53

15

Clamp, Narrow Band

7080511

$4.79

16

Boot, Carburetor

5411588

Unavailable

17

Clamp, Narrow Band

7080413

$3.19

17

Clamp, Narrow Band

7080413

$3.19

18

Duct, Carb Inlet

5433180

$32.37

19

Gasket, Carb Inlet

5830128

Unavailable

20

Box, Air Intake, 4 Stroke

5433768

Unavailable

21

Spacer

7556091

$3.99

22

Line

8450059-100

Unavailable

23

Plug, Trap

5432377

Unavailable

24

Foil, Air Box, RH

5812111

Unavailable

25

Clamp, Hose

7080650

$3.99

26

Asm., Filter

1253372

$27.99

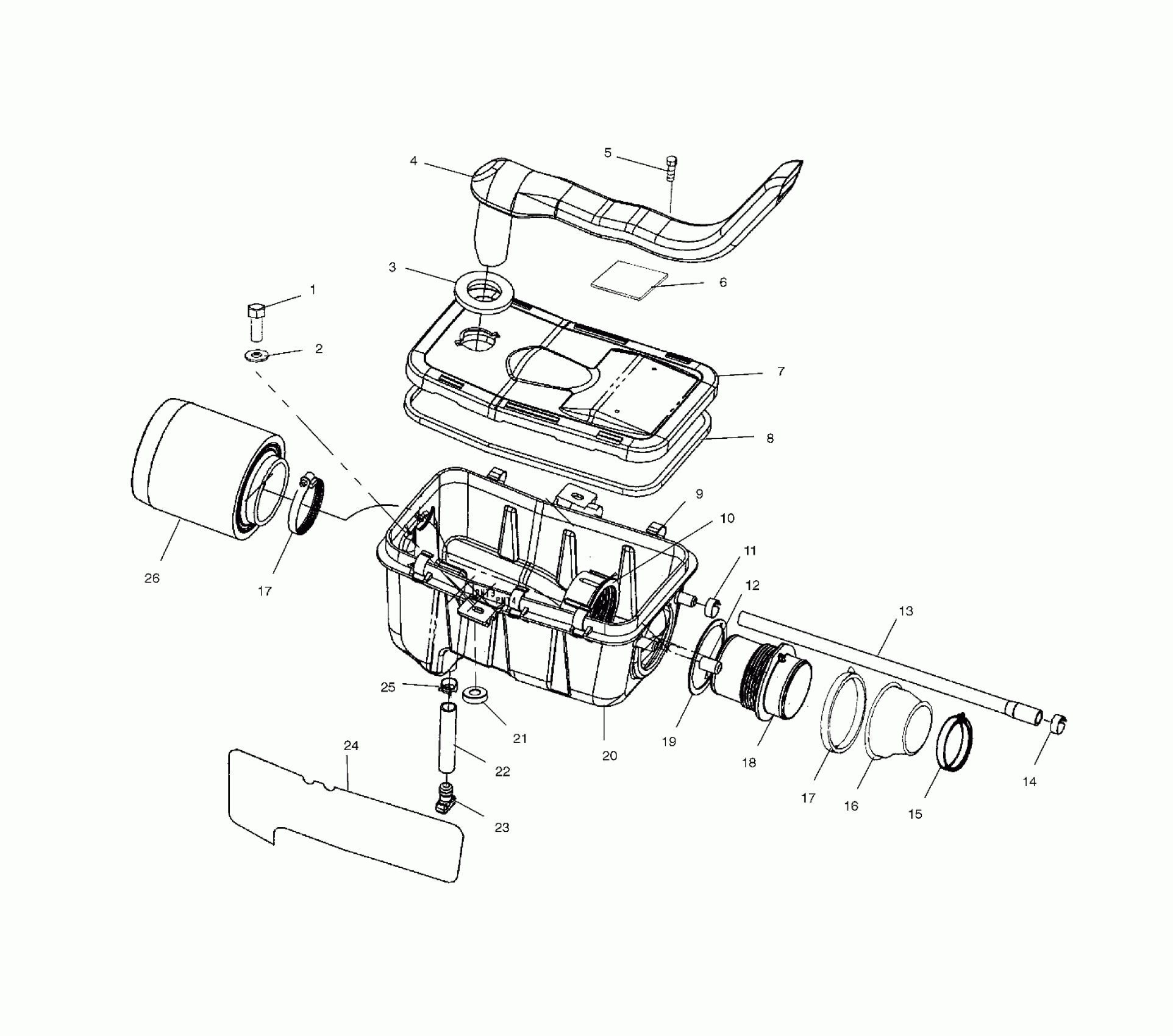

Polaris MAGNUM 330 2X4 - A03CB32AA AIR BOX - A03CB32AA/FC (4975157515B01) Diagram

Screw

Washer, Flat

Seal, Intake

Duct, Inlet

SCR-#8X1/2,TR/PH,TYPE B-Y

Pad, Fuel Tank Bracket

Cover, Air Box

Seal, Air Box Cover

CLIP-AIR BOX

Collar, Carb Inlet

Clamp, Hose

CAP, RUBBER

Hose, Breather

Clamp, Hose, Spring

Clamp, Narrow Band

Boot, Carburetor

Clamp, Narrow Band

Clamp, Narrow Band

Duct, Carb Inlet

Gasket, Carb Inlet

Box, Air Intake, 4 Stroke

Spacer

Line

Plug, Trap

Foil, Air Box, RH

Clamp, Hose

Asm., Filter
