- MAGNUM 330 2X4 - A03CB32AA
A-ARM/STRUT MOUNTING - A03CB32AA/FC (4986188618B08)

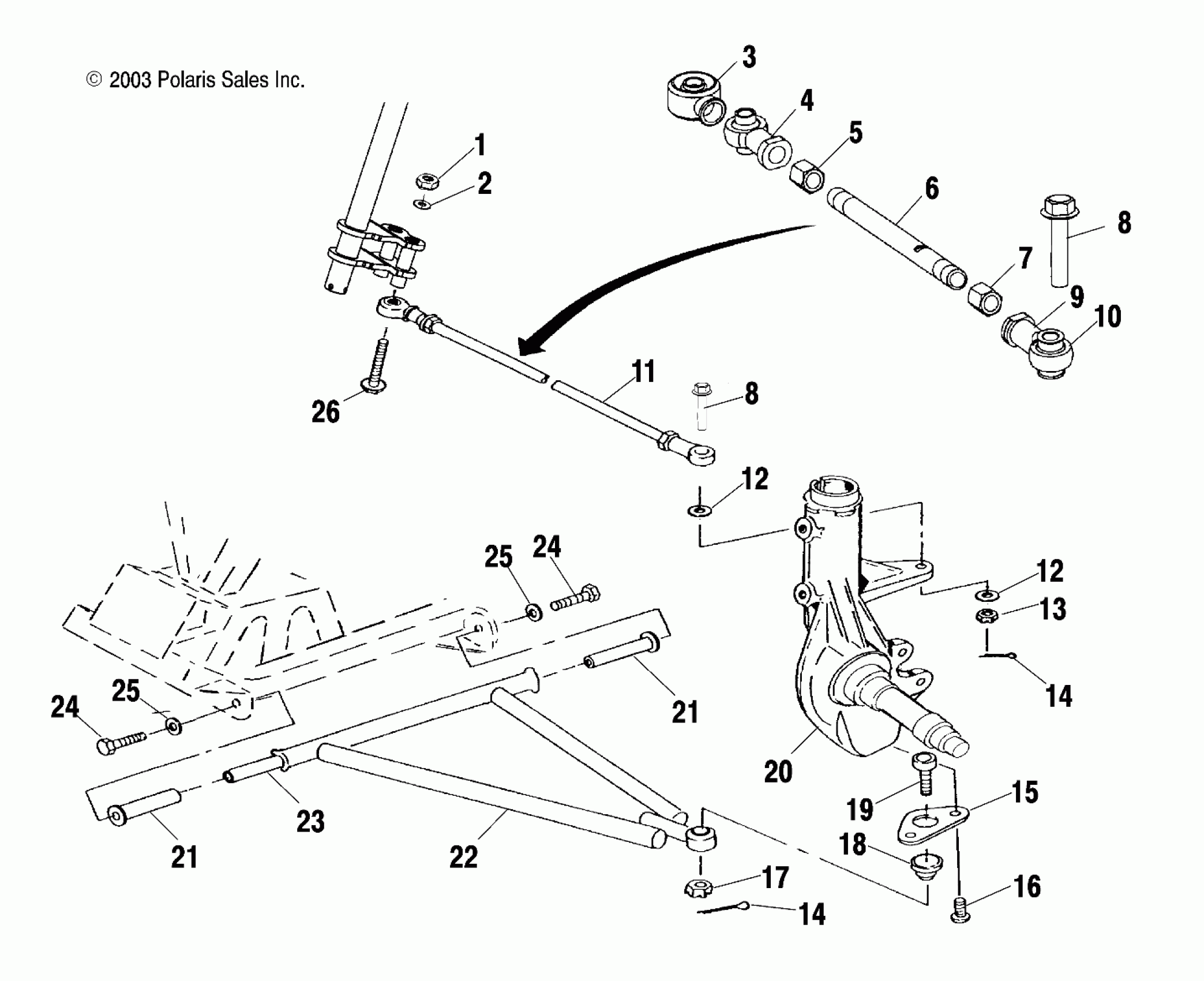

Polaris MAGNUM 330 2X4 - A03CB32AA A-ARM/STRUT MOUNTING - A03CB32AA/FC (4986188618B08) Diagram
#
Description
Price
1
Nut, Nylok
7542439
$1.49
2
Washer
7558403
$4.79
3
Boot, Seal, Rod End
5411291
Unavailable
4
Rod End, RH
7061034
$54.04
5
Nut, Jam
7542711
$2.39
6
Tie Rod
5020927
$39.99
7
Nut, Jam, LH
7547028
$2.39
8
Bolt
7517909
$5.59
8
Bolt
7517909
$5.59
9
Rod End, LH
7061054
Unavailable
10
Boot, Seal
5411920
Unavailable
11
Asm., Tie Rod [Incl. 3-9]
1820806
Unavailable
12
Washer, Flat
7556099
$1.59
12
Washer, Flat
7556099
$1.59
13
Nut
7547177
$2.39
14
Pin, Cotter
7661203
$1.49
14
Pin, Cotter
7661203
$1.49
15
Bracket, Ball Joint
5240717
Unavailable
16
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
17
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
18
Boot, Rubber
5410548
Unavailable
19
Joint, Ball
7080927
$76.89
20
ASM., HUBSTRUT [SEE STRUT PG., REF. 16]
-------
Unavailable
21
Bushing, A-Arm, Long
5434551
$5.01
21
Bushing, A-Arm, Long
5434551
$5.01
22
Kit, A-Frame, LH [Incl. 14,21,23,24,25]
2202276
Unavailable
22
Kit, A-Frame, RH [Incl. 14,21,23,24,25]
2202277
Unavailable
23
Shaft, A-Arm
5133806
$30.79
24
Screw
7512492
$1.49
24
Screw
7512492
$1.49
25
Washer, Dish Lock
7571611
$3.19
25
Washer, Dish Lock
7571611
$3.19
26
Bolt
7518033
$34.99
