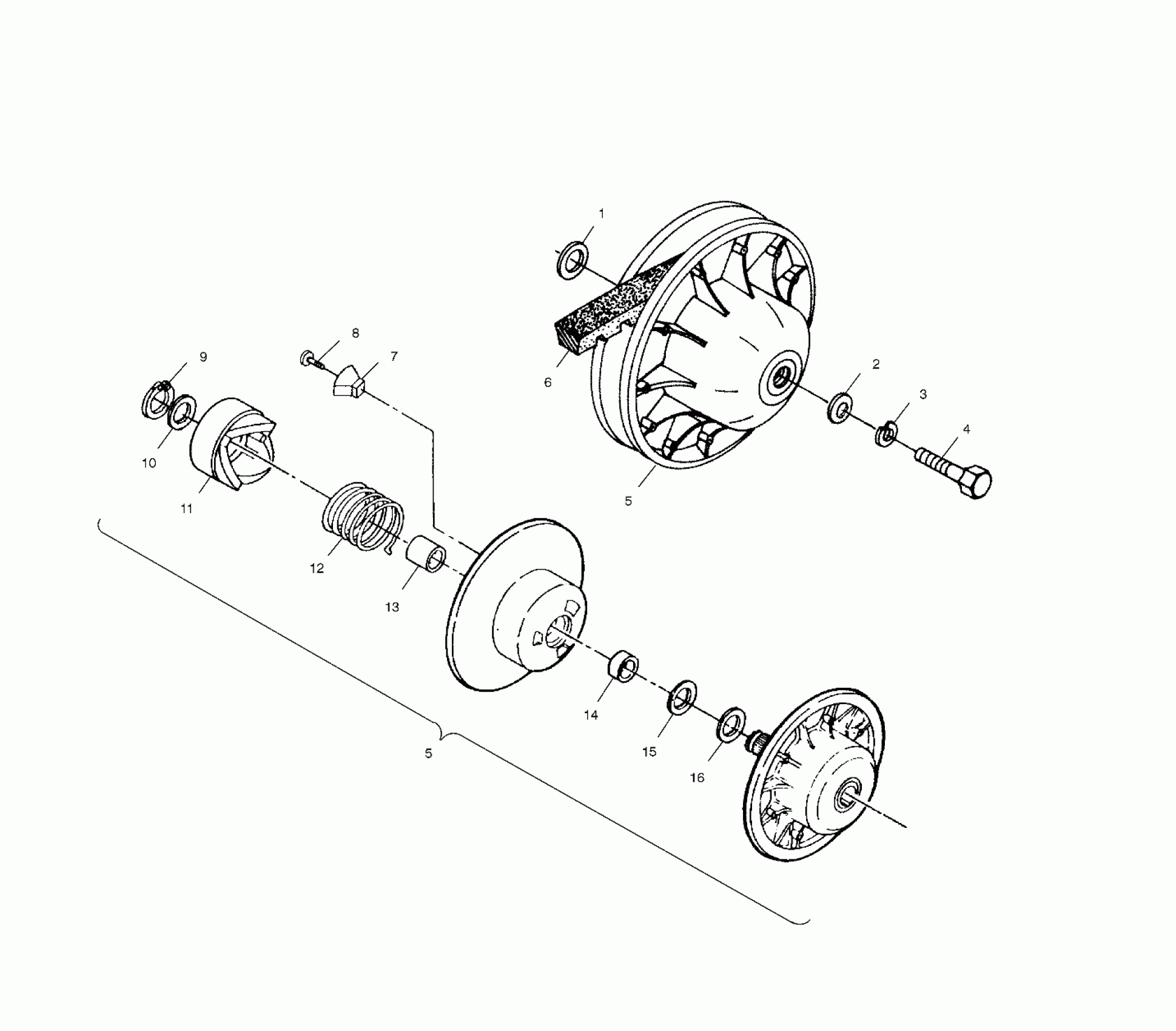

Polaris MAGNUM 325 4X4 - A02CD32AA DRIVEN CLUTCH - A02CD32AA/AB/AC (4970147014C06) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Washer, Domed

5220646

$2.39

3

WASHER, SPRING LOCK

7552901

$1.49

4

BOLT

7515382

$2.39

5

Asm., Driven Clutch [Incl. 7-10,13-16]

1321874

$614.99

5

Asm., Driven Clutch [Incl. 7-10,13-16]

1321874

$614.99

6

BELT, DRIVE

3211077

$63.99

7

Button, Ramp

5430766

Unavailable

8

Bolt

7511854

$1.49

9

Ring, Retaining

7710448

$3.19

10

Spacer

5244116

$7.19

11

RAMP, STATIONARY

5132344

$79.99

12

SPRING, CLUTCH

7041782

$56.65

13

BUSHING-MOVEABLE, 1.0 DU [1 Inch]

3576511

$27.99

14

Bearing, Moveable [1/2 Inch]

3576504

$23.99

15

Washer [.030]

7556804

Unavailable

16

Washer [.020]

7555898

Unavailable

16

Washer [.025]

7556076

Unavailable
