REAR CAB Magnum 2X4 W98AA42A (4945524552A006)

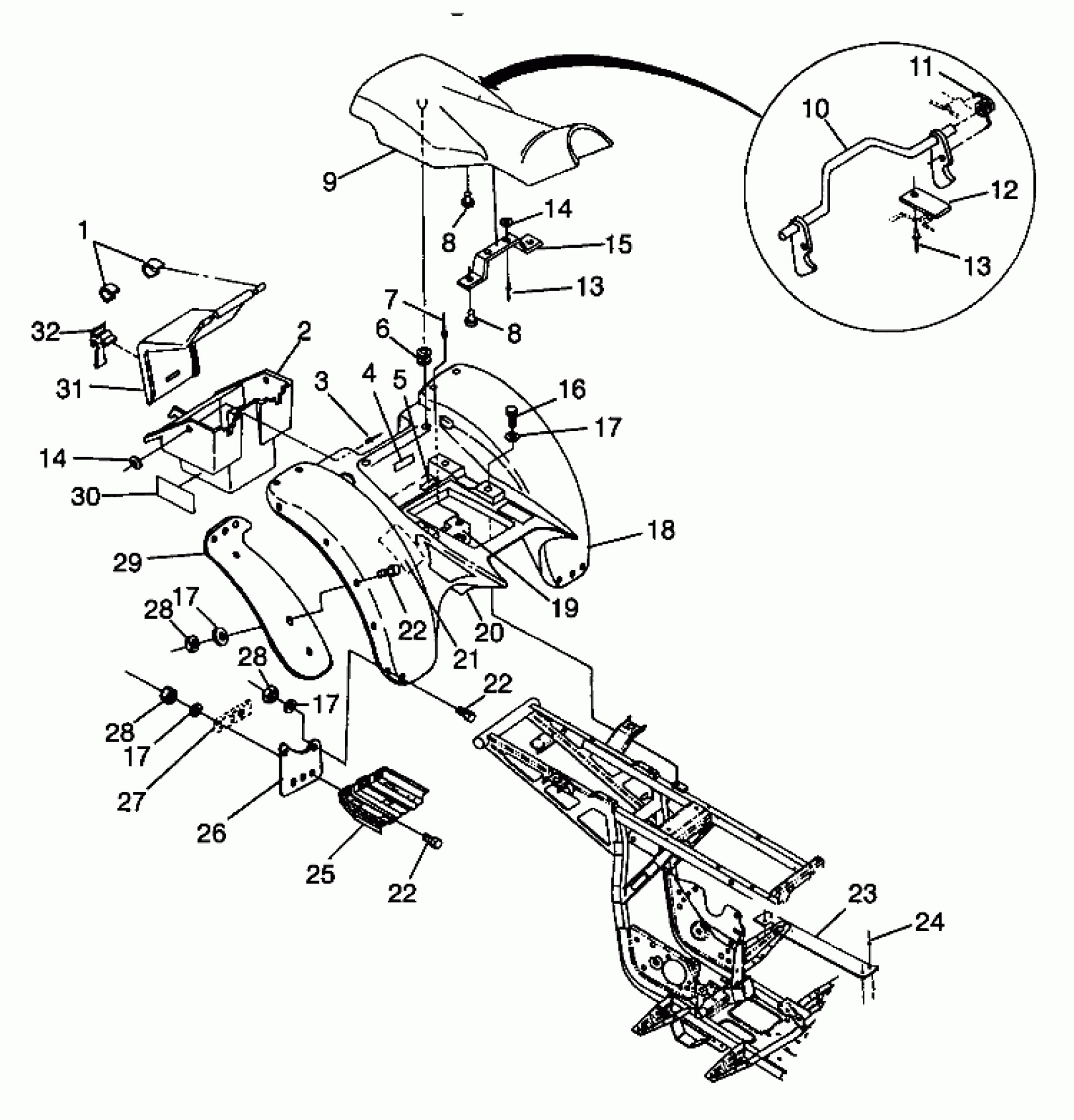

Polaris MAGNUM 2X4 - W98AA42A REAR CAB Magnum 2X4 W98AA42A (4945524552A006) Diagram
#
1
CLIP, LID HINGE(10)
7670050
Unavailable
2
BOX,TOOL COMP.
5430882
Unavailable
3
RIVET(50)
7621462
$1.49
4
DECAL,FILT.ELEMENT,4-S
7077446
Unavailable
5
DECAL,CARB.INFO.
7073761
Unavailable
6
Grommet
5411042
Unavailable
7
RIVET,3/16X.402(50)
7621432
$1.49
8
Bumper, Rubber
5410414
$3.19
8
Bumper, Rubber
5410414
$3.19
9
COVER,SEAT,LT.GREY
2681723-143
Unavailable
9
SEAT ASM,LT.GRAY,(ATV)
2682357-143
Unavailable
10
LATCH,SEAT
1011558
Unavailable
11
SPRING, LATCH
7041158
Unavailable
12
BRACKET,LEVER RETAINER
5211033
$29.25
13
BLIND RIVET(50)
7621403
$1.49
13
BLIND RIVET(50)
7621403
$1.49
14
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
14
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
15
BRKT,SUPPORT SEAT BASE
5222837-067
Unavailable
16
SCREW(10)
7512242
$2.39
17
WASHER, FLAT(10)
7555859
$1.49
17
WASHER, FLAT(10)
7555859
$1.49
17
WASHER, FLAT(10)
7555859
$1.49
17
WASHER, FLAT(10)
7555859
$1.49
18
CAB,REAR,P.RED.MOD,GENII
5432531-136
Unavailable
19
BRKT,R.HOLDDOWN
5220880
Unavailable
20
Foil, Rear Cab
5810957
Unavailable
21
Foil, Rear Cab, Small
5810991
Unavailable
22
BOLT, BLACK(10)
7512282
$1.49
22
BOLT, BLACK(10)
7512282
$1.49
22
BOLT, BLACK(10)
7512282
$1.49
23
GUARD,CLUTCH,OUTER
5222860-067
$7.06
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
Foot Pad (See Pg. NO TAG, Ref. NO TAG)
-------
Unavailable
26
MUDFLAP,LH,LOW,REAR
5850076
Unavailable
26
MUDFLAP,RH,LOW.REAR
5850111
Unavailable
27
BRKT, LH MUD FLAP
5211131-067
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
28
NUT-LOCK(10)
7542122
$1.49
28
NUT-LOCK(10)
7542122
$1.49
29
FLAP,MUD,LH REAR
5850060
Unavailable
29
FLAP,MUD,RH REAR
5850061
Unavailable
30
TAPE, FOIL
5810310
Unavailable
31
LID,TOOLBOX,SIL/GRN.
5430769-1042
Unavailable
32
STRAP,TOOL COMPARTMENT
5410425
Unavailable
