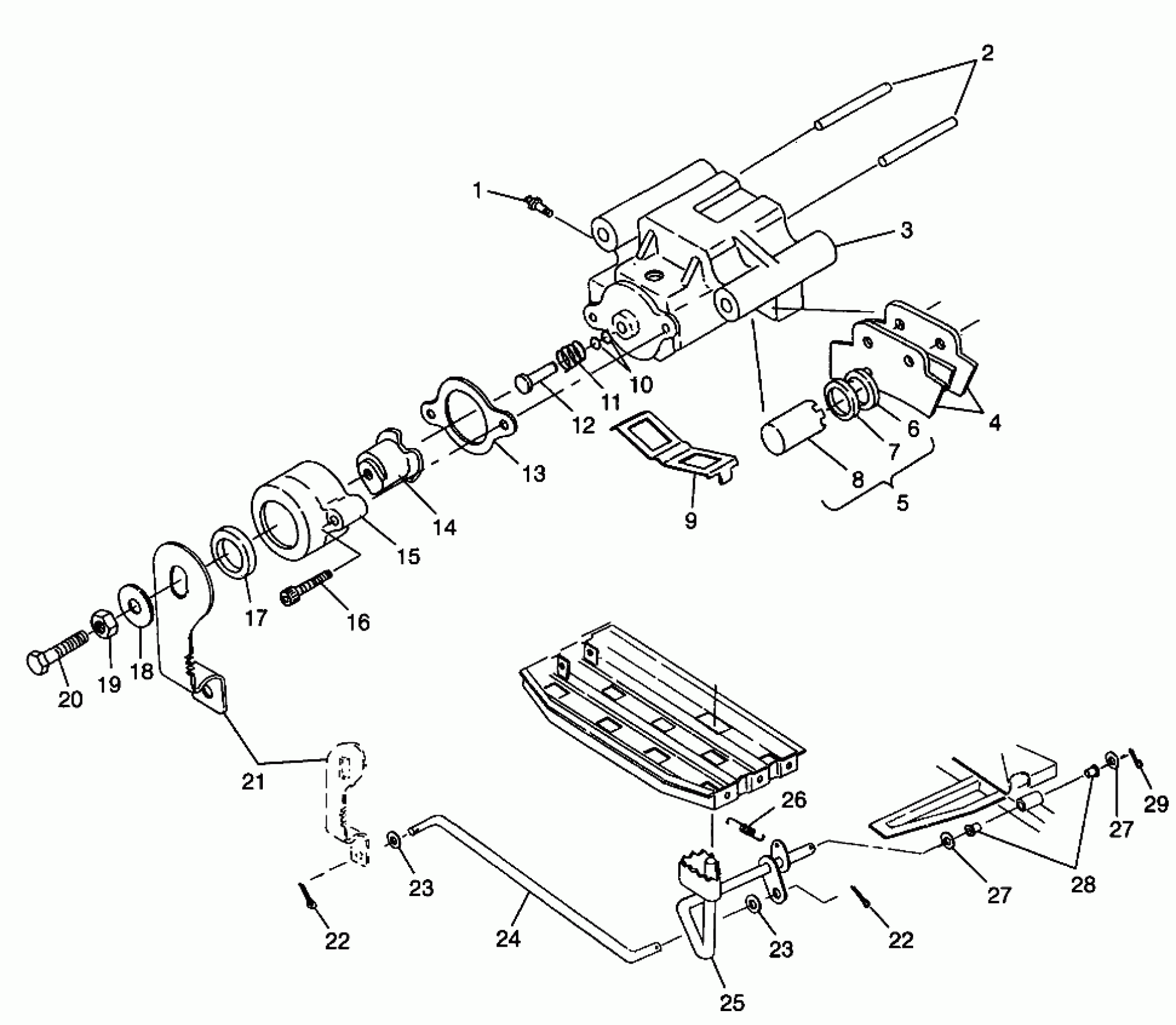

Polaris MAGNUM 2X4 - W98AA42A REAR BRAKE - W98AA42A (4945524552C001) Diagram
#
Description
Price
3
CALIPER,R.BRAKE,MACH
5131272
Unavailable
4
KIT,R.BRAKEPAD,HVY.DUTY
2200899
Unavailable
4
KIT,REAR BRAKEPADS,ATV
2201150
Unavailable
6
Square Ring (See Footnote) (.134 Sq.) (See Front Brake Page B4, Ref. 5)
-------
Unavailable
7
Square Ring (See Footnote) (.094 Sq.) (See Front Brake Page B4, Ref. 4)
-------
Unavailable
8
Piston (See Footnote) (See Front Brake Page B4, Ref. 6)
-------
Unavailable
9
SPRING,ANTI-RATTLE
5240993
Unavailable
10
O RING-.364X.504X.07
5410542
Unavailable
12
PIN,BRAKE CALIPER
5020666
Unavailable
14
RAMP,MOVE.BRAKE(D/C)
5630651
Unavailable
15
RAMP,STAT.BRAKE(D/C)
5630652
Unavailable
16
SCREW(10)
7512173
Unavailable
18
WASHER, SPRING(10)
7555828
Unavailable
20
BOLT
7515145
Unavailable
21
ARM,BRAKE CALIPER
5240624
Unavailable
25
FOOTBRAKE,BLK.
1910144-067
Unavailable
