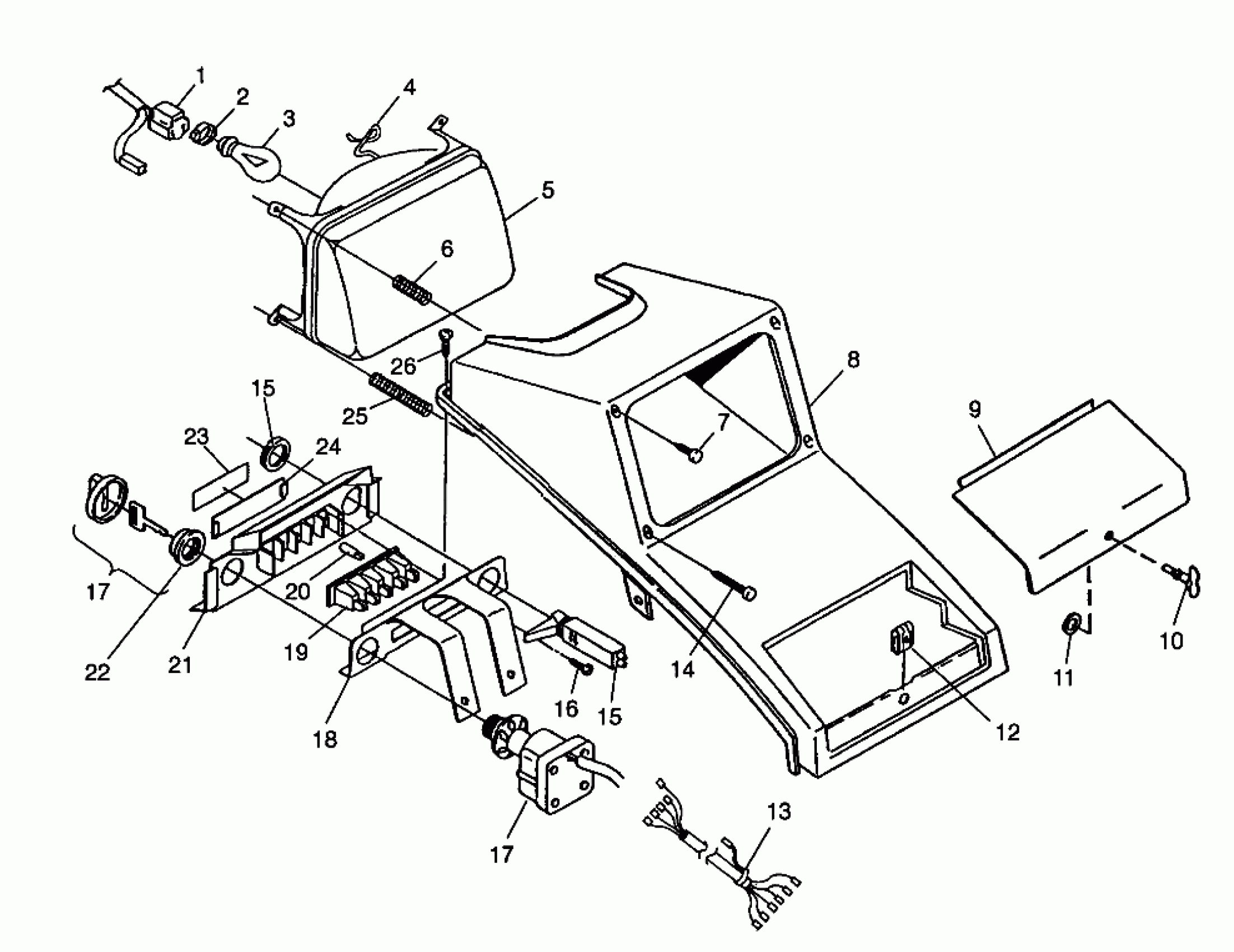

Polaris MAGNUM 2X4 - W98AA42A HEADLIGHT Magnum 2X4 W98AA42A (4945524552A013) Diagram

#

Description
Price

1

Harness, Main Wire (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW, ADJ.(10)

4032003

Unavailable

8

COVER,H/L,MAG,LT.GRAY

5431861-143

Unavailable

9

DOOR,ACCESS,LT.GREY

5431201-143

Unavailable

10

FASTENER, 1/4 TURN(10)

7670064

$6.23

11

RING,SPLIT RETAINER(10)

7670065

$1.99

12

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

13

HARNESS,INDIC.MAG,W/CON

2460613

$17.43

14

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

15

KIT-CHOKE CONTROL

2200188

$24.27

15

CABLE,CHOKE,W/ADJUSTER

7080727

$97.13

15

KIT-CHOKE CONTROL

2200188

$24.27

15

CABLE,CHOKE,W/ADJUSTER

7080727

$97.13

16

SCREW, SEM(10)

7511862

$6.99

17

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by using the 4 digit number on the ignition key.

4110209

Unavailable

17

SWITCH,IGN.W/ CON NOTE: Ignition key may be ordered by using the 4 digit number on the ignition key.

4110209

Unavailable

18

BRKT, IGN. PANEL

5220965-067

Unavailable

19

STRIP, SOCKET

4032037

$27.19

20

BULB

4030042

Unavailable

21

PANEL, IGNITION

5430995

Unavailable

22

NUT,IGN.SWITCH

5432090

Unavailable

23

DECAL, PANEL [No Longer Available]

7072528

Unavailable

24

LENS ASM,PILOT LIGHT (Incl. 23)

2652049

Unavailable

25

SPRING,ADJ.

4032041

Unavailable

26

SCREW(10)

7512017

$4.79
