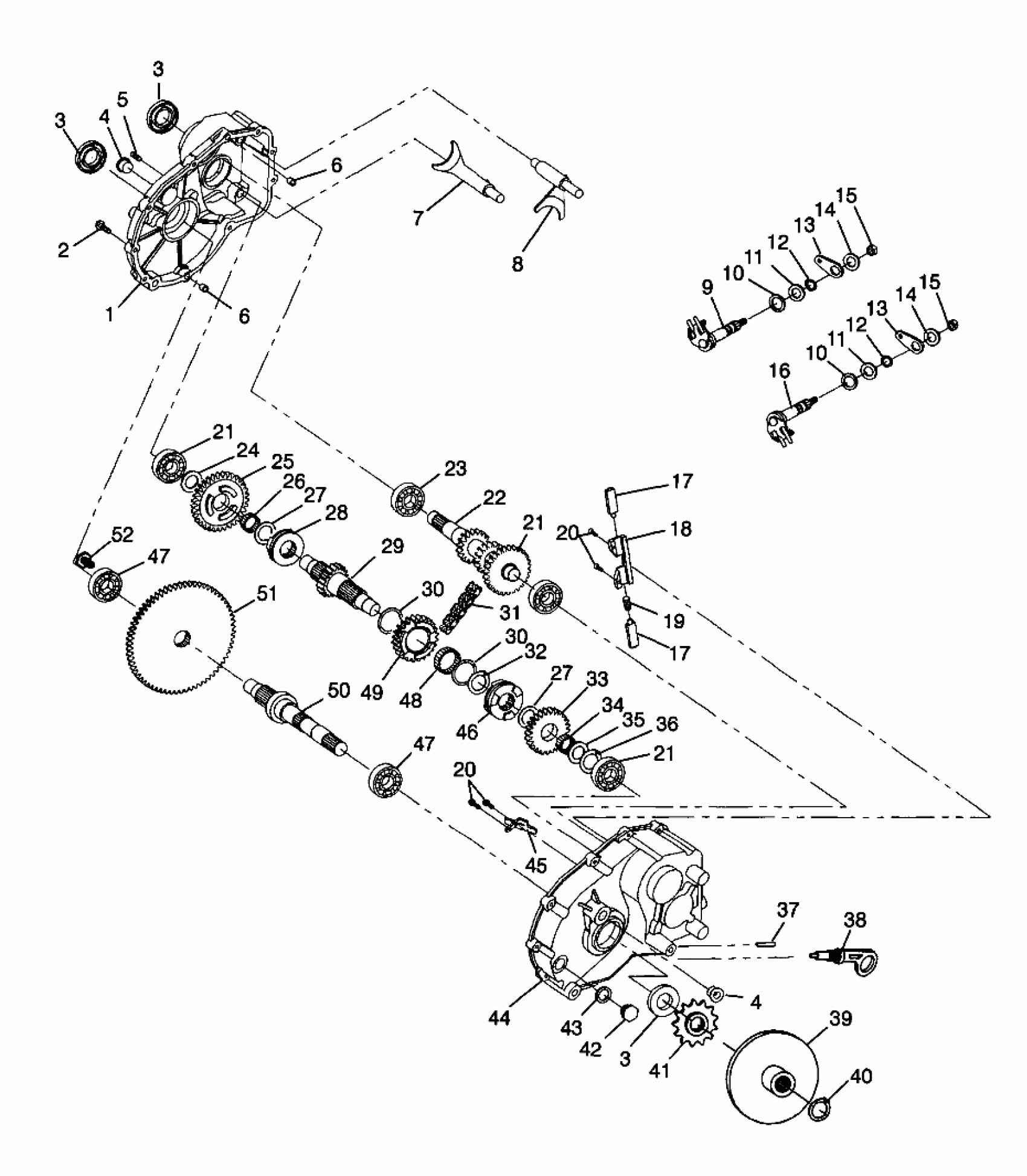

Polaris MAGNUM 2X4 - W98AA42A GEARCASE - W98AA42A (4945524552C005) Diagram
#
Description
Price
-
GEARCASE ASM,MAGNUM 2X4,HCR (Incl. 1-38,42-51)
1341185
Unavailable
1
CASE, LH
3233002
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
4
BUSHING,PIVOT
3233024
Unavailable
5
STUD
3233025
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
6
PIPE, KNOCK
3233021
Unavailable
7
SHIFTRAIL,LOW
3233022
Unavailable
8
SHIFTRAIL,HIGH/REV.
3233023
Unavailable
10
O-RING Substituted by 3233548
3233044
Unavailable
10
O-RING Substituted by 3233548
3233044
Unavailable
15
Nut
3233055
Unavailable
15
Nut
3233055
Unavailable
16
SHAFT,HIGH/REV.SHIFT
3233152
Unavailable
20
SCREW Substituted by 3233747
3233033
Unavailable
22
SHAFT,INPUT,31T,HCR
3233361
Unavailable
24
WASHER
3233007
Unavailable
25
GEAR, 33T
3233125
Unavailable
27
Washer
3233010
Unavailable
27
Washer
3233010
Unavailable
28
DOG,ENGAGEMENT,LOW
3233126
Unavailable
29
SHAFT,REV,29T,HCR
3233362
Unavailable
30
WASHER
3233012
Unavailable
30
WASHER
3233012
Unavailable
31
CHAIN,SILENT,34P (11W)
3233036
Unavailable
33
GEAR,30T,HCR
3233359
Unavailable
37
Vent
3233037
Unavailable
39
Brake Disc. ATV (See Footnote) (See Gearcase/Brake Mounting Page B14, Ref. 9)
-------
Unavailable
43
Washer
3233035
Unavailable
44
CASE, RH
3233003
Unavailable
46
DOG,ENGAGEMENT,HI/REV.
3233128
Unavailable
49
SPROCKET, 24T
3233127
Unavailable
50
SHAFT,OUTPUT
3233140
Unavailable
51
GEAR,O/P,100T,HCR
3233360
Unavailable
