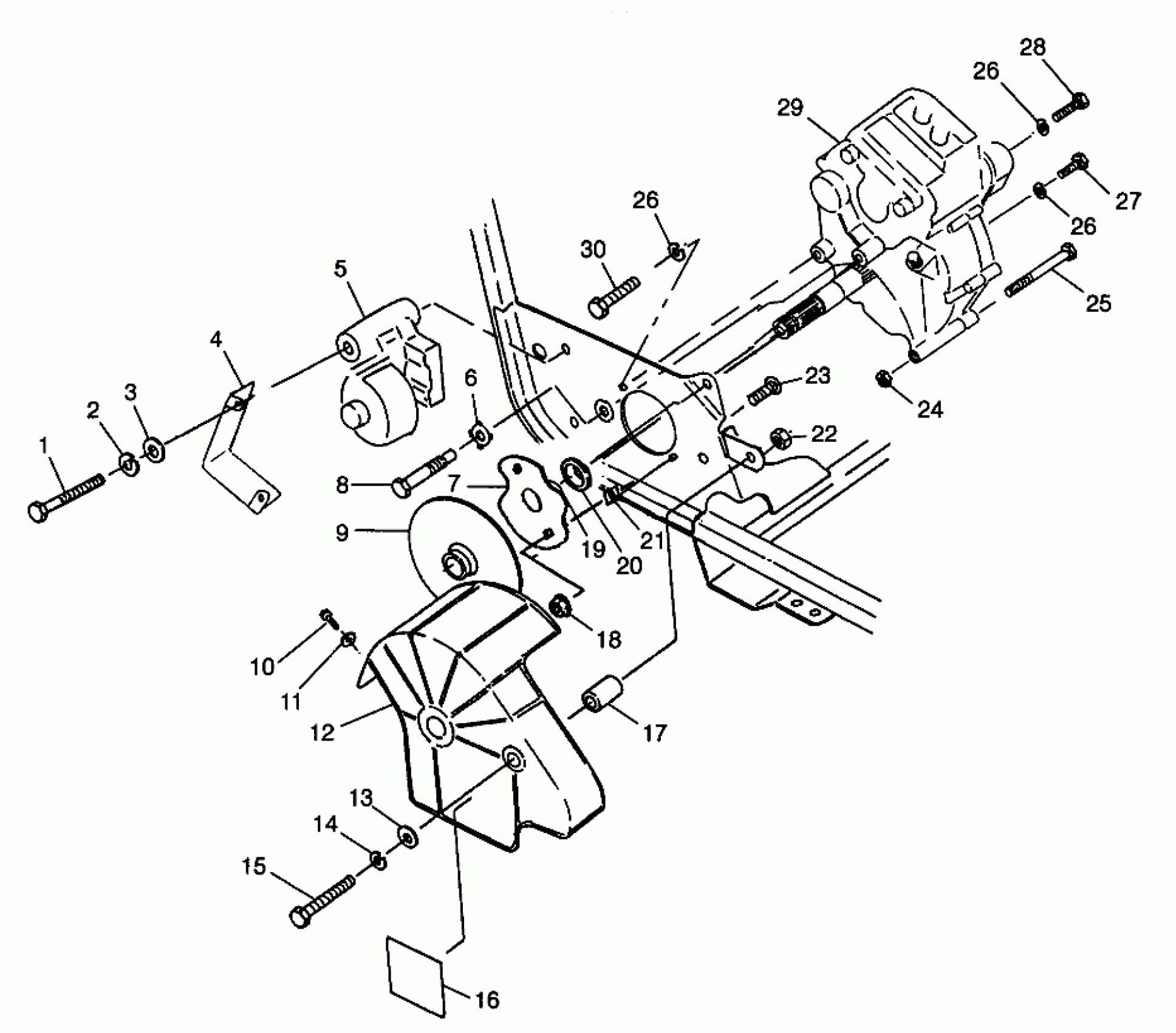

Polaris MAGNUM 2X4 - W98AA42A GEARCASE/BRAKE MOUNTING Magnum 2X4 W98AA42A (4945524552B014) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

5

CALIPER ASM,R.BRAKE

1910224

Unavailable

6

PLATE,BOLT LOCK

5220958

$35.99

7

BRG.ASM,O/P SHAFT (Incl. 21)

1590237

$84.99

8

BOLT, SHOULDER

7512702

Unavailable

9

DISC ASM,BRAKE

1910177

Unavailable

10

SCREW(10)

7512252

Unavailable

11

WASHER(10) Substituted by 7558301

7555776

Unavailable

12

GUARD, BRAKE DISC

5431766

Unavailable

13

WASHER(10) Substituted by 7558402

7555770

Unavailable

14

WASHER(10)

7552606

$4.79

15

BOLT(10) Substituted by 7515339

7515328

Unavailable

16

DECAL,BRAKE SHIELD

7075339

Unavailable

17

SPACER,BRAKE DISC GUARD

5333255

$5.03

18

NUT,FLANGE LOCK(10)

7542449

$3.99

19

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

20

SEAL, BRAKE

3610026

$7.99

21

SPACER,(10) (.020)

5210764

Unavailable

21

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

21

SHIM,(.030) (.030)

5211517

Unavailable

22

NUT, (SPECIAL)(10)

7542330

$5.43

23

BOLT,CARRIAGE(10)

7515484

Unavailable

24

NUT LOCK(10)

7542403

$3.99

25

BOLT(10)

7515472

$2.39

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

27

BOLT(10)

7515485

$3.03

28

BOLT(10)

7515522

$3.99

29

Asm., Gearcase (See Pg. A35 for Details)

-------

Unavailable

30

BOLT(10)

7515534

$4.79
