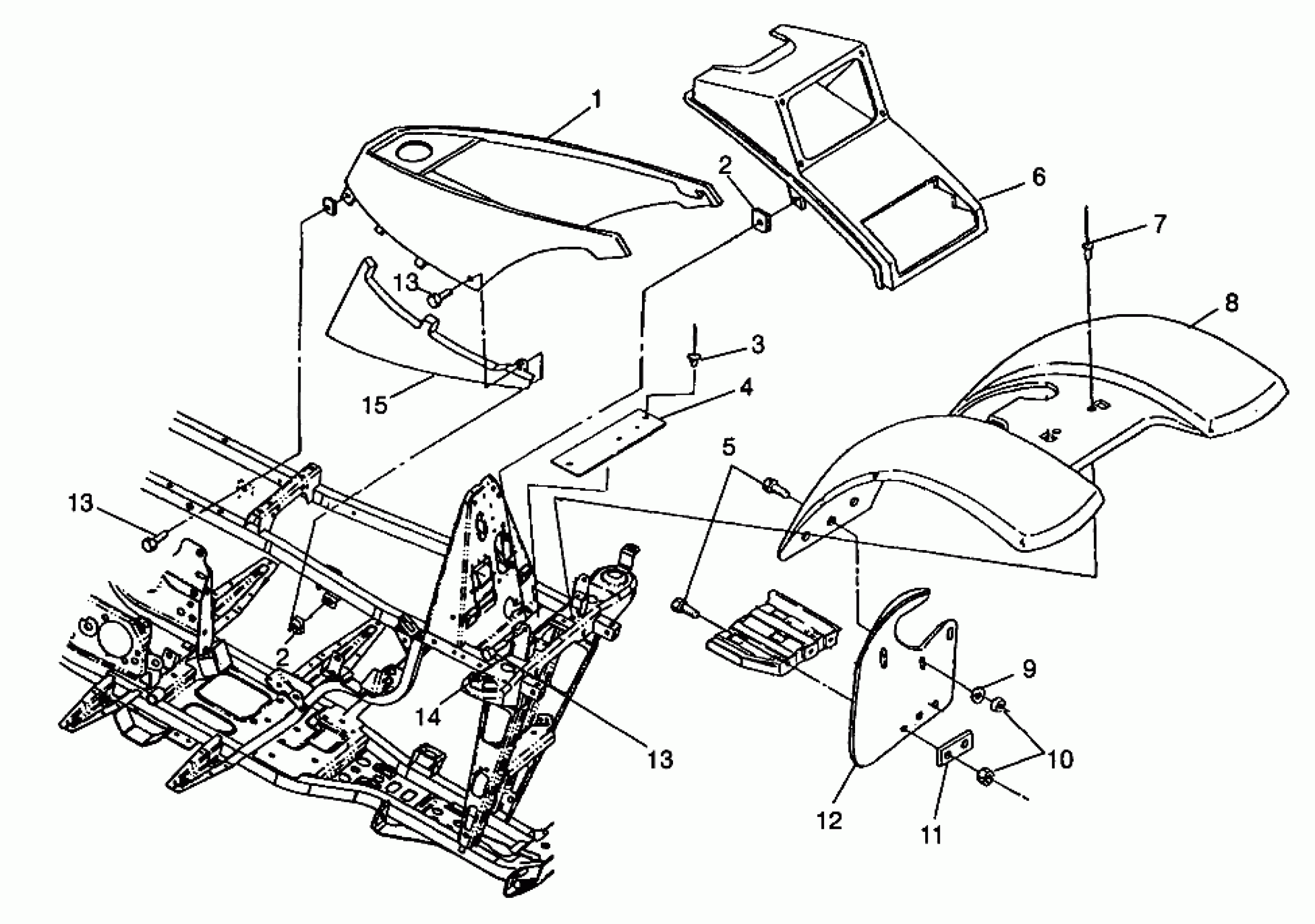

Polaris MAGNUM 2X4 - W98AA42A FRONT CAB Magnum 2X4 W98AA42A (4945524552A005) Diagram

#

Description
Price

1

COVER,FUELTANK(P.RED)

5431197-136

Unavailable

2

NUT, SPEED(10)

7670060

$3.99

2

NUT, SPEED(10)

7670060

$3.99

3

RIVET,3/16X.402(50)

7621432

$1.49

4

STRAP,MTG,FUELPUMP

5211547-067

$2.02

5

BOLT, BLACK(10)

7512282

$1.49

6

Cover, Headlight (See Pg. A15, Ref. 8)

-------

Unavailable

7

RIVET(50)

7621460

$1.49

8

CAB ASM,FR,POR.RED. (Incl. Warning Decals)

2631926-136

Unavailable

9

WASHER, FLAT(10)

7555859

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

BRKT, LH MUD FLAP

5211131-067

Unavailable

12

MUDFLAP,RH,FRT.

5850120

Unavailable

12

MUDFLAP,LH,FRT.

5850119

$12.63

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

14

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

15

COVER,RH(P.RED)SIDE Substituted by 5433579-136

5430971-136

Unavailable

15

COVER,SIDEPANEL,RED

5431675-136

Unavailable
