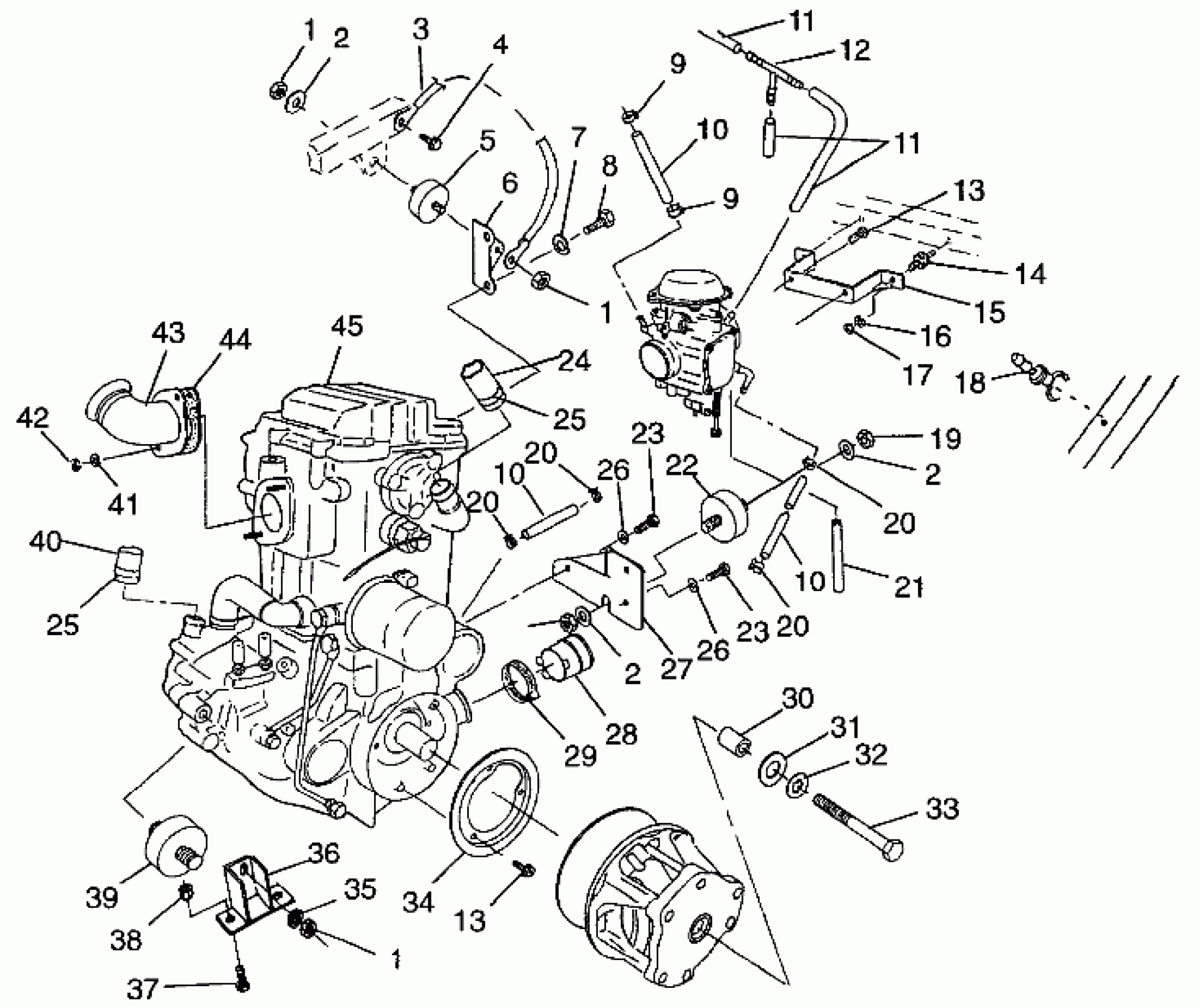

Polaris MAGNUM 2X4 - W98AA42A ENGINE MOUNTING Magnum 2X4 W98AA42A (4945524552A008) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

1

NUT LOCK(10)

7542403

Unavailable

1

NUT LOCK(10)

7542403

Unavailable

2

WASHER(10)

7555801

$3.97

2

WASHER(10)

7555801

$3.97

2

WASHER(10)

7555801

$3.97

3

CABLE,GND-ENGINE

4010132

Unavailable

4

BOLT(10)

7512232

$1.19

5

MOUNT,RUBBER,TOP

3110044

$44.51

6

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

7

LOCK WASHER(10)

7552901

$1.19

8

BOLT(10)

7512315

$4.76

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.52

13

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

13

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

14

MOUNT,CARB.

3110050

$12.99

15

BRKT, CARB.MT.

5240609-067

Unavailable

16

WASHER(10)

7552605

$5.69

17

NUT HEX(10)

7542105

$3.97

18

FITTING,VENT,1/8"

7052192

Unavailable

19

NUT LOCK(10)

7542411

$3.17

20

HOSE CLAMP, RED

7080003

$1.19

20

HOSE CLAMP, RED

7080003

$1.19

20

HOSE CLAMP, RED

7080003

$1.19

20

HOSE CLAMP, RED

7080003

$1.19

21

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

22

MOUNT,R.RUBBER

3110068

$44.51

23

SCREW(10)

7512490

$3.97

23

SCREW(10)

7512490

$3.97

24

Hose, Chafe Protected (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

25

CLAMP,HOSE,(10)

7080614

$7.14

25

CLAMP,HOSE,(10)

7080614

$7.14

26

WASHER(10)

7552603

$0.79

26

WASHER(10)

7552603

$0.79

27

MOUNT,R.ENG,BLK

5241921-067

$10.63

28

BOOT,CLUTCH INTAKE

5410421

$11.32

29

CLAMP, NARROW BAND(10)

7080511

$4.76

30

BUSHING-.437 X.770 X.50

5430261

$7.14

31

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

32

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

33

BOLT(10)

7512566

$33.24

34

Bracket, Retainer, Seal (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

35

WASHER(10)

7555806

$0.79

36

MOUNT,ENG,BLK

1040534-067

$13.89

37

BOLT(10)

7515321

Unavailable

38

NUT FLEX-LOC(10)

7542303

$6.35

39

MOUNT,RUBBER,FRONT

3110046

Unavailable

40

Hose, Water (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

41

Washer, Lock (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

42

Nut (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

43

MANIFOLD,BLK

1260832-029

Unavailable

44

Gasket (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

45

ENG.(S.B.)EH42PLE-01 [No Longer Available] Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and piston & crankshaft assembly. Prior authorization requ

3085555

Unavailable
